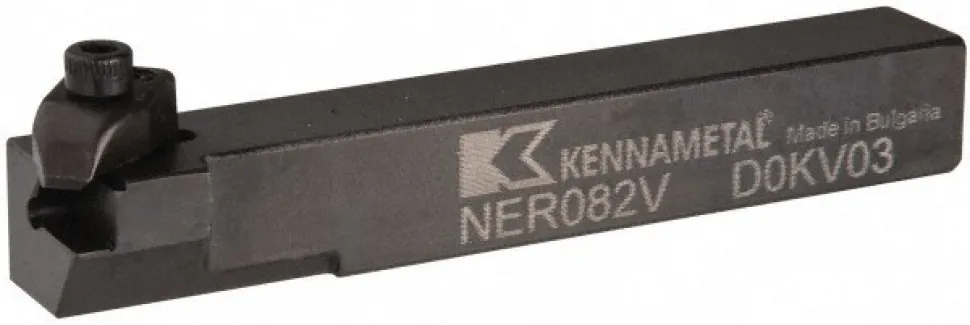

Indexable Threading Toolholder: Internal & External, Right Hand, 1/2 x 1/2″ Shank
106,89 $
Specifications
| Thread Type: Internal; External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.5000 | Shank Width/Diameter (mm): 12.70 |
| Shank Width/Diameter (Inch): 1/2 | Toolholder Style: NE |
| Insert Compatibility: N.2L | Insert Holding Method: Clamp |
| Shank Height (mm): 12.70 | Shank Height (Decimal Inch): 0.5000 |
| Shank Height (Inch): 1/2 | Overall Length (mm): 88.90 |
| Overall Length (Inch): 3-1/2 | Overall Length (Decimal Inch): 3.5000 |
| Multi-use Tool: Yes | Cutting Tool Application: Grooving; Threading |
| Head Length (Decimal Inch): 0.5000 | Head Length (mm): 12.70 |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | Maximum Depth of Cut (mm): 3.51 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | UNSPSC Code: 23291800 |
| MSC/Manufacturer Number: NER/L082V | Coolant Through: No |
| Series: Top Notch | Country of Origin: Bulgaria |
| Thread Type: Internal; External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Shank Width/Diameter (mm): 12.70 | |
| Shank Width/Diameter (Inch): 1/2 | |
| Toolholder Style: NE | |
| Insert Compatibility: N.2L | |
| Insert Holding Method: Clamp | |
| Shank Height (mm): 12.70 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Shank Height (Inch): 1/2 | |
| Overall Length (mm): 88.90 | |
| Overall Length (Inch): 3-1/2 | |
| Overall Length (Decimal Inch): 3.5000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Threading | |
| Head Length (Decimal Inch): 0.5000 | |
| Head Length (mm): 12.70 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| Maximum Depth of Cut (mm): 3.51 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | |
| UNSPSC Code: 23291800 | |
| MSC/Manufacturer Number: NER/L082V | |
| Coolant Through: No | |
| Series: Top Notch | |
| Country of Origin: Bulgaria |
| MSC# | 88229257 |
| Mfr# | 1097577 |
| Big Book# | 914 |
