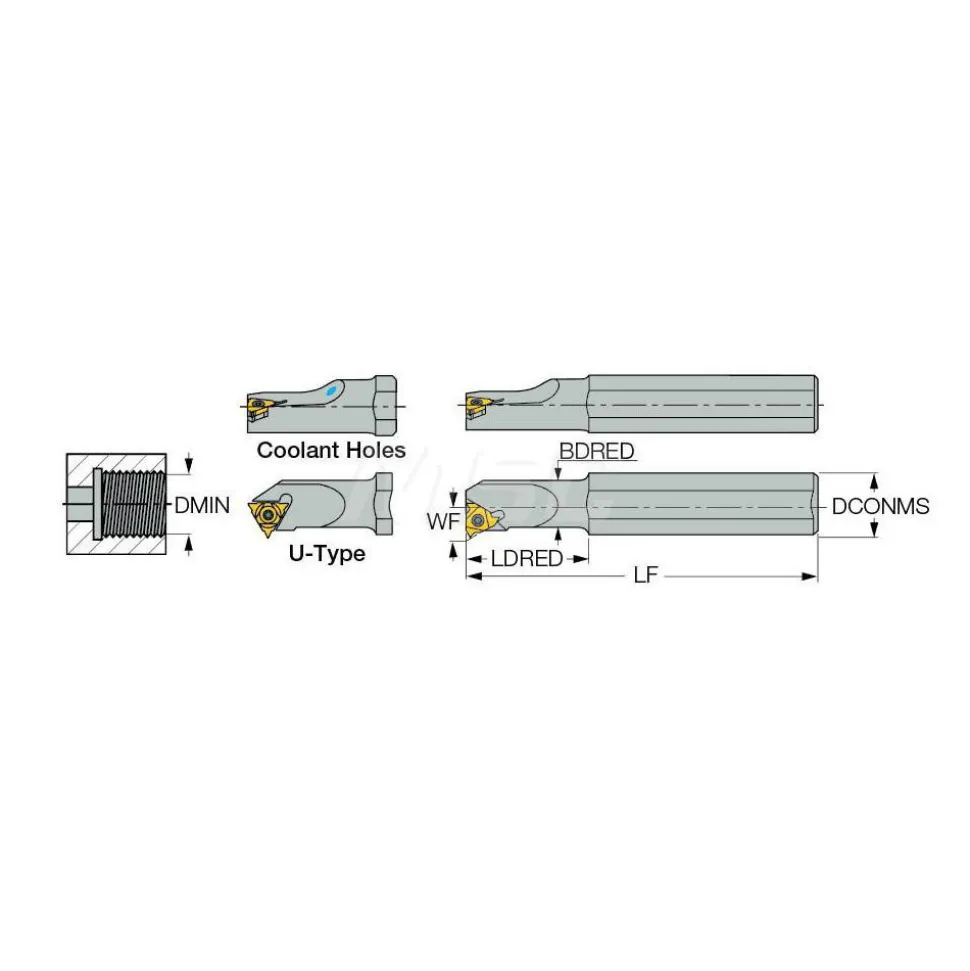

Indexable Threading Toolholder: Internal, Left Hand, 5/8 x 5/8″ Shank
106,99 $
Specifications
| Thread Type: Internal | Hand of Holder: Left Hand |
| Shank Width/Diameter (Decimal Inch): 0.6250 | Toolholder Style: SI |
| Insert Compatibility: M 16 | Coolant Entry Style Code: 0 – Without Coolant |
| Insert Holding Method: Screw | Shank Height (Decimal Inch): 0.6250 |
| Shank Length (Inch): 5-1/2 | Shank Length (Decimal Inch): 5.5000 |
| Overall Length (Inch): 6 | Overall Length (Decimal Inch): 6.0000 |
| Minimum Bore Diameter (Decimal Inch): 0.6400 | Multi-use Tool: No |
| Cutting Tool Application: Threading | Head Length (Decimal Inch): 1.2500 |
| Maximum Depth of Cut (Decimal Inch): 1.2500 | Back of Bar to Cutting Edge (Decimal Inch): 0.6400 |
| Center to Cutting Edge (Decimal Inch): 0.3900 | Insert Inscribed Circle (Inch): 3/8 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: SIL | Country of Origin: Israel |
| Thread Type: Internal | |
| Hand of Holder: Left Hand | |
| Shank Width/Diameter (Decimal Inch): 0.6250 | |
| Toolholder Style: SI | |
| Insert Compatibility: M 16 | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.6250 | |
| Shank Length (Inch): 5-1/2 | |
| Shank Length (Decimal Inch): 5.5000 | |
| Overall Length (Inch): 6 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Minimum Bore Diameter (Decimal Inch): 0.6400 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 1.2500 | |
| Maximum Depth of Cut (Decimal Inch): 1.2500 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.6400 | |
| Center to Cutting Edge (Decimal Inch): 0.3900 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: SIL | |
| Country of Origin: Israel |
| MSC# | 60873346 |
| Mfr# | 3800130 |
