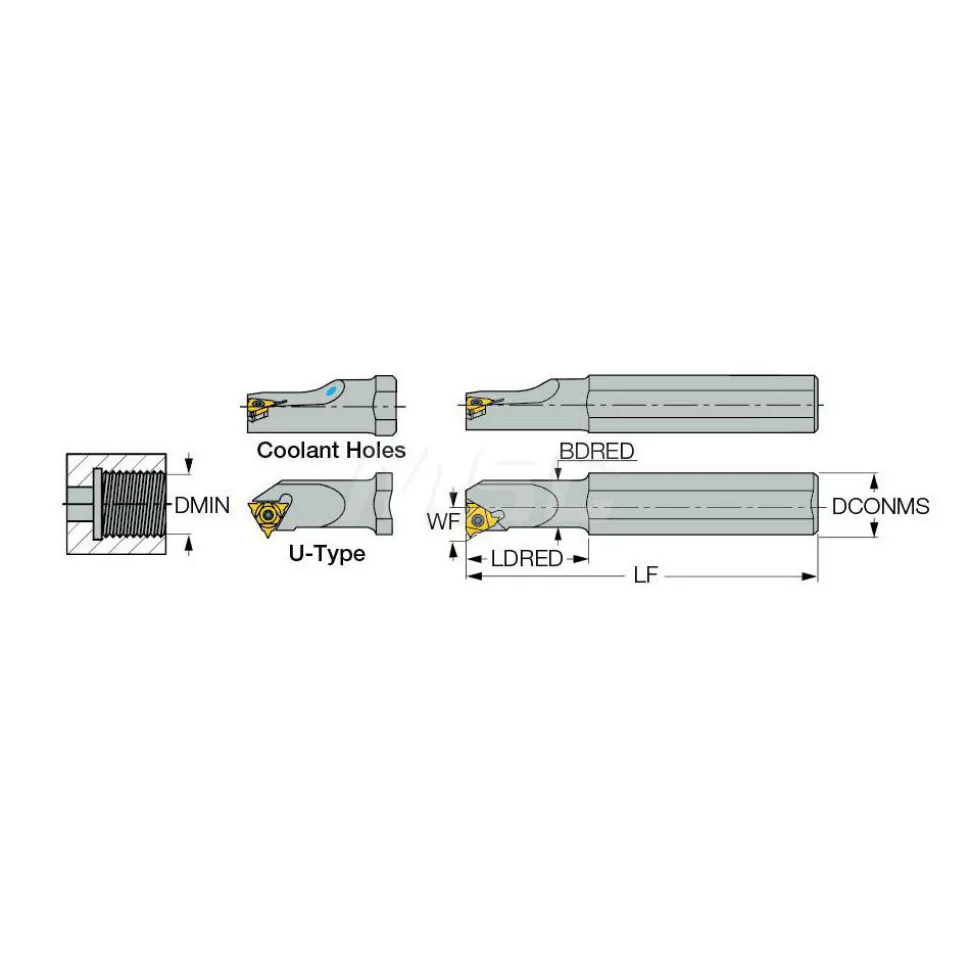

Indexable Threading Toolholder: Internal, Right Hand, 0.315 x 0.315″ Shank
130,99 $
Specifications
| Thread Type: Internal | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.3150 | Toolholder Style: SI |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Shank Height (Decimal Inch): 0.3150 | Shank Length (Decimal Inch): 4.7400 |
| Overall Length (Decimal Inch): 5.0000 | Minimum Bore Diameter (Decimal Inch): 0.3550 |
| Multi-use Tool: No | Cutting Tool Application: Threading |
| Head Length (Decimal Inch): 1.2000 | Maximum Depth of Cut (Decimal Inch): 1.2000 |
| Center to Cutting Edge (Decimal Inch): 0.2100 | Neck Diameter (Decimal Inch): 0.2600 |
| UNSPSC Code: 23291800 | Toolholder Material: Solid Carbide |
| Coolant Through: No | Series: IscarThread |
| Country of Origin: Israel | |
| Thread Type: Internal | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.3150 | |
| Toolholder Style: SI | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.3150 | |
| Shank Length (Decimal Inch): 4.7400 | |
| Overall Length (Decimal Inch): 5.0000 | |
| Minimum Bore Diameter (Decimal Inch): 0.3550 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 1.2000 | |
| Maximum Depth of Cut (Decimal Inch): 1.2000 | |
| Center to Cutting Edge (Decimal Inch): 0.2100 | |
| Neck Diameter (Decimal Inch): 0.2600 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Solid Carbide | |
| Coolant Through: No | |
| Series: IscarThread | |
| Country of Origin: Israel |
| MSC# | 52734571 |
| Mfr# | 3800148 |
