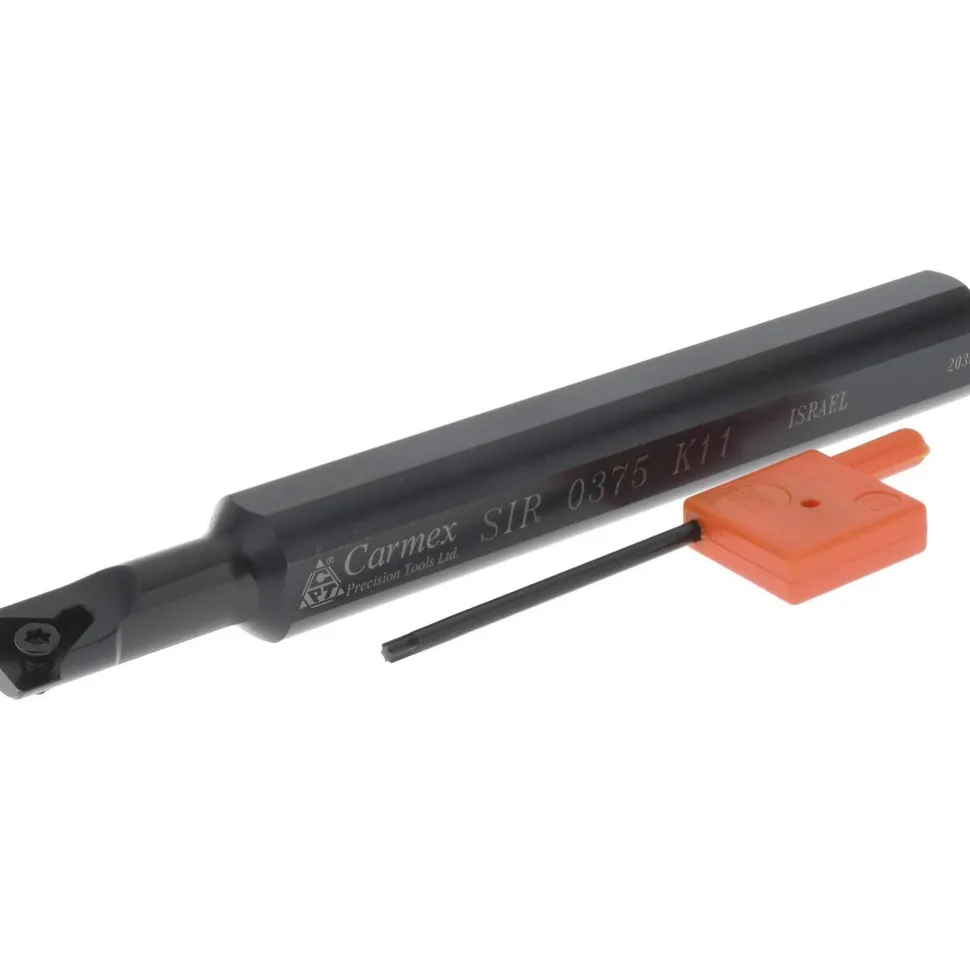

Indexable Threading Toolholder: Internal, Right Hand, 5/8 x 5/8″ Shank
112,89 $
Specifications
| Thread Type: Internal | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 0.6250 | Shank Width/Diameter (Inch): 5/8 |
| Toolholder Style: SI | Insert Compatibility: 11IR |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Screw |
| Shank Height (Decimal Inch): 0.6250 | Shank Height (Inch): 5/8 |
| Overall Length (Inch): 5 | Overall Length (Decimal Inch): 5.0000 |
| Minimum Bore Diameter (Decimal Inch): 0.4700 | Multi-use Tool: No |
| Cutting Tool Application: Threading | Head Length (Decimal Inch): 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.2800 | Center to Cutting Edge (Decimal Inch): 0.2800 |
| Insert Inscribed Circle (Inch): 1/4 | Neck Diameter (Decimal Inch): 0.3800 |
| UNSPSC Code: 23291800 | Distance Across Flats: 0.567 |
| Style: SIR 0375 K11 | Coolant Through: No |
| F -In–: 0.2800 | Series: SIR |
| Country of Origin: Israel | |
| Thread Type: Internal | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 0.6250 | |
| Shank Width/Diameter (Inch): 5/8 | |
| Toolholder Style: SI | |
| Insert Compatibility: 11IR | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 0.6250 | |
| Shank Height (Inch): 5/8 | |
| Overall Length (Inch): 5 | |
| Overall Length (Decimal Inch): 5.0000 | |
| Minimum Bore Diameter (Decimal Inch): 0.4700 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 1.0000 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.2800 | |
| Center to Cutting Edge (Decimal Inch): 0.2800 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Neck Diameter (Decimal Inch): 0.3800 | |
| UNSPSC Code: 23291800 | |
| Distance Across Flats: 0.567 | |
| Style: SIR 0375 K11 | |
| Coolant Through: No | |
| F -In–: 0.2800 | |
| Series: SIR | |
| Country of Origin: Israel |
| MSC# | 08700189 |
| Mfr# | SIR0375K11 |
| Big Book# | 950 |
