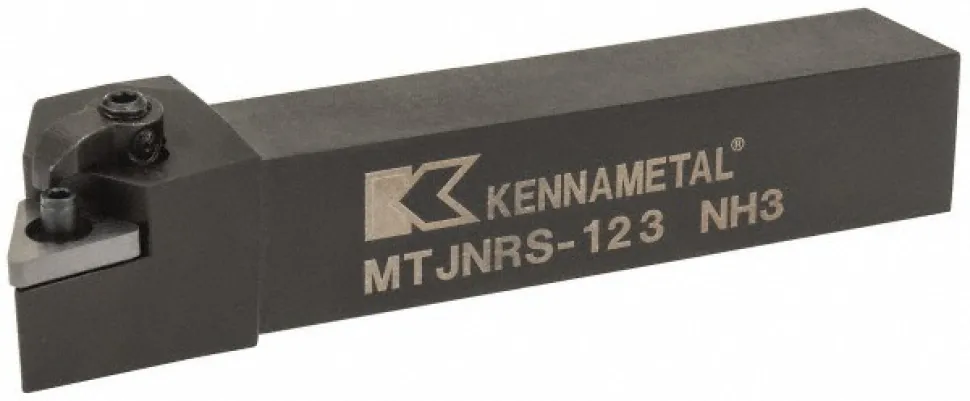

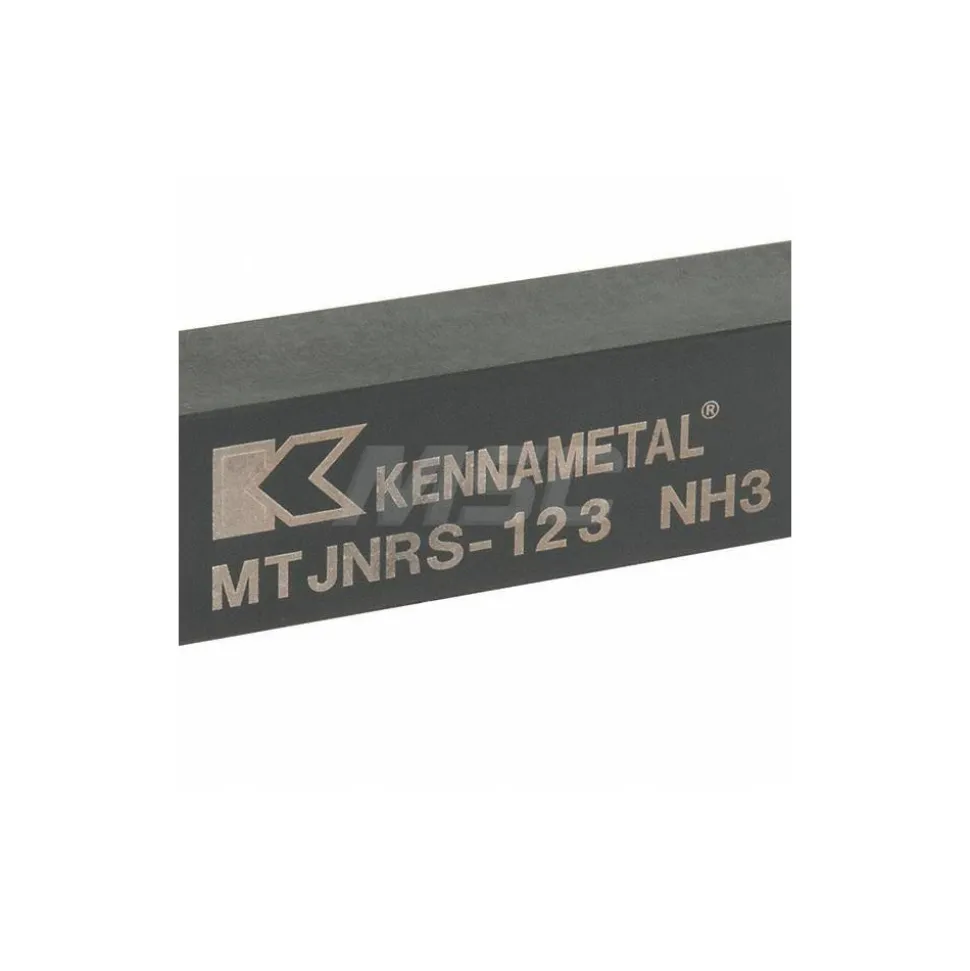

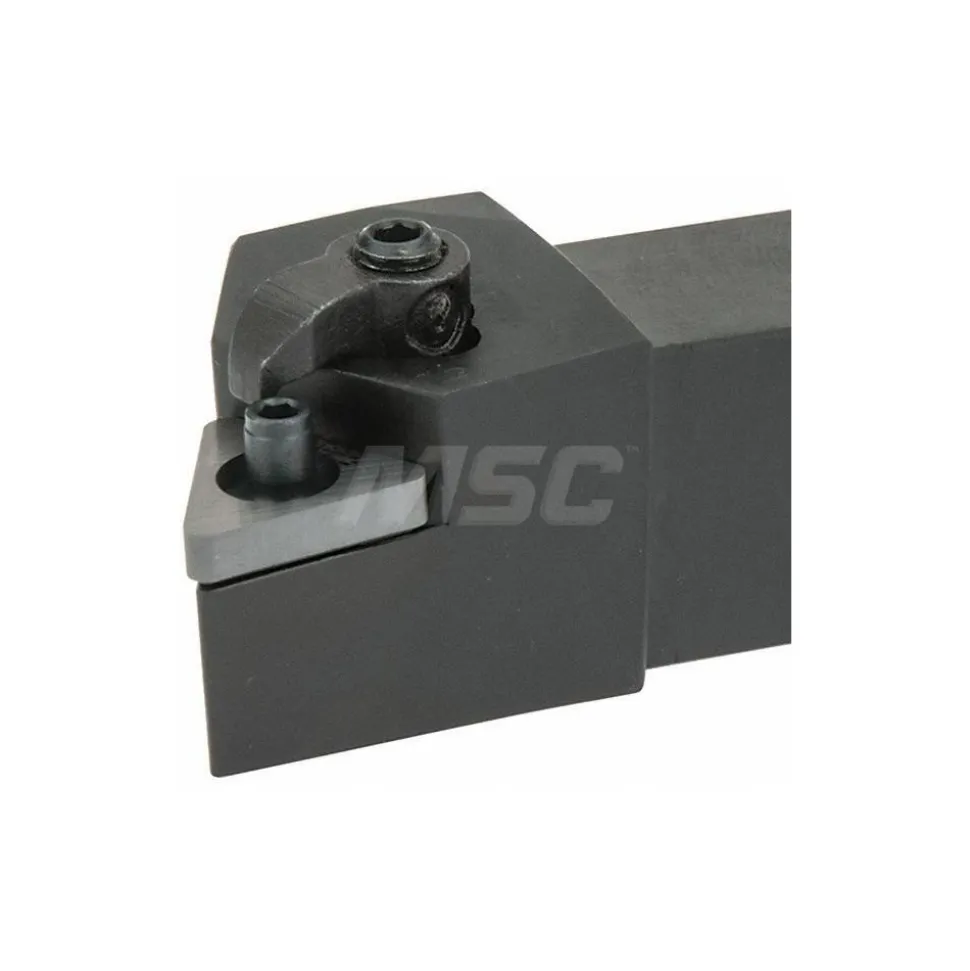

Indexable Turning Toolholder: MTJNR & LS123, Clamp & Screw
87,89 $
Specifications
| Toolholder Style: MTJN | Hand of Holder: Right Hand |
| Insert Compatibility: TN..33. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Height (mm): 19.05 |
| Coolant Through: No | Rake: Negative |
| Multi-use Tool: No | Shank Width (Decimal Inch): 0.7500 |
| Shank Height (Decimal Inch): 0.7500 | Series: Kenloc |
| Overall Length (Inch): 4-1/2 | Head Length (Decimal Inch): 1.1200 |
| Head Length (mm): 28.45 | Back of Bar to Cutting Edge (Inch): 1 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | Back of Bar to Cutting Edge (mm): 25.40 |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | Insert Inscribed Circle (Inch): 3/8 |
| Toolholder Material: Steel | Complete Insert Compatibility: TN.. 332 |
| UNSPSC Code: 23153308 | Manufacturers Catalog Number: MTJNR; LS123 |
| Country of Origin: UNITED STATES | |
| Toolholder Style: MTJN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: TN..33. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Height (mm): 19.05 | |
| Coolant Through: No | |
| Rake: Negative | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Kenloc | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.1200 | |
| Head Length (mm): 28.45 | |
| Back of Bar to Cutting Edge (Inch): 1 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Back of Bar to Cutting Edge (mm): 25.40 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: TN.. 332 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MTJNR; LS123 | |
| Country of Origin: UNITED STATES |
| MSC# | 64922750 |
| Mfr# | 1096336 |
| Big Book# | 833 |
