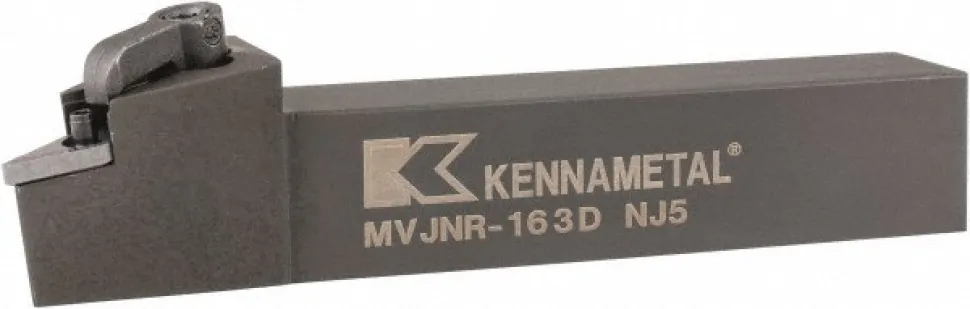

Indexable Turning Toolholder: MVJNR & L163D, Clamp & Screw
Original price was: 212,00 $.124,99 $Current price is: 124,99 $.
Specifications
| Toolholder Style: MVJN | Hand of Holder: Right Hand |
| Insert Compatibility: VN..33. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 1 | Shank Height (Inch): 1 |
| Overall Length (Decimal Inch): 6.0000 | Shank Height (mm): 25.40 |
| Coolant Through: No | Rake: Negative |
| Multi-use Tool: No | Shank Width (Decimal Inch): 1.0000 |
| Shank Height (Decimal Inch): 1.0000 | Series: Kenloc |
| Overall Length (Inch): 6 | Head Length (Decimal Inch): 1.6600 |
| Head Length (mm): 42.16 | Back of Bar to Cutting Edge (Decimal Inch): 1.2500 |
| Back of Bar to Cutting Edge (mm): 31.75 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: VN.. 332 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: MVJNR; L163D | Country of Origin: VARIOUS |
| Toolholder Style: MVJN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: VN..33. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 1 | |
| Shank Height (Inch): 1 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Height (mm): 25.40 | |
| Coolant Through: No | |
| Rake: Negative | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Kenloc | |
| Overall Length (Inch): 6 | |
| Head Length (Decimal Inch): 1.6600 | |
| Head Length (mm): 42.16 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Back of Bar to Cutting Edge (mm): 31.75 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: VN.. 332 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MVJNR; L163D | |
| Country of Origin: VARIOUS |
| MSC# | 64922669 |
| Mfr# | 1096289 |
| Big Book# | 833 |
