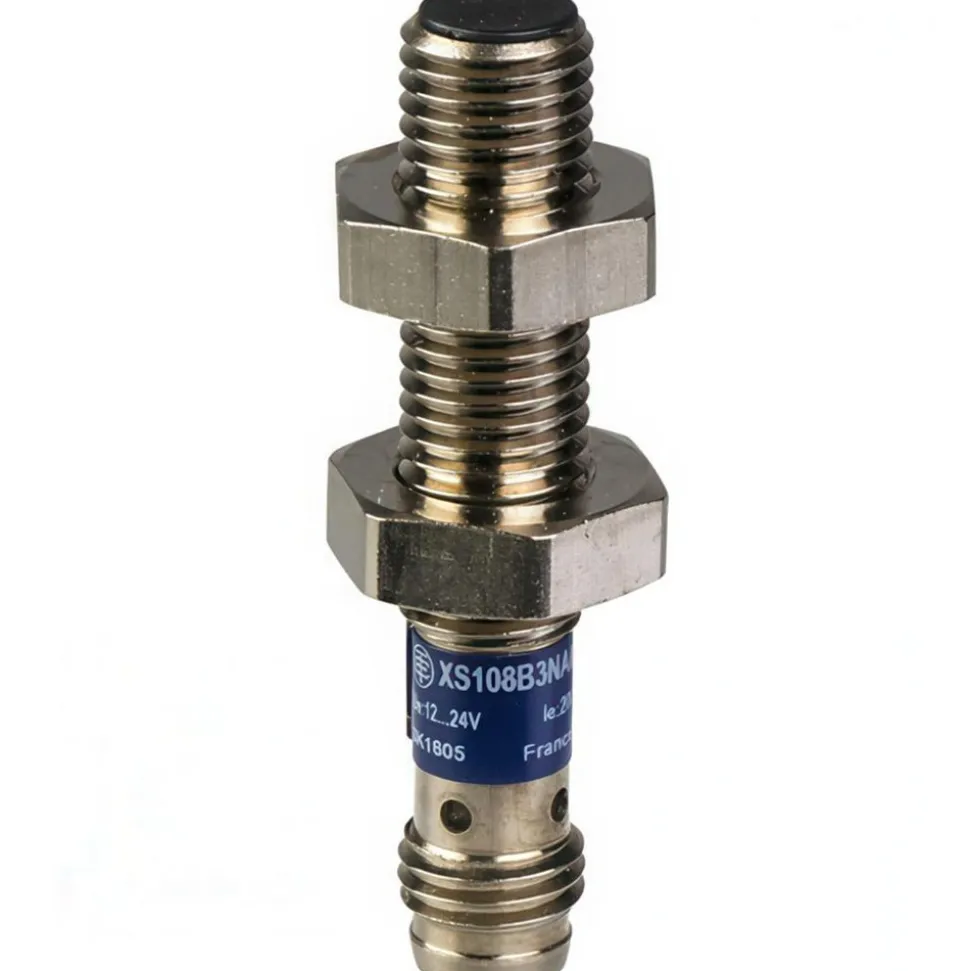

Inductive Proximity Sensor: Cylinder Shielded, 0.06″ Detection Distance
96,99 $
Specifications
| Sensor Type: Inductive | Body Shape: Cylinder Shielded |
| Sensor Operation Output Mode: NO | Output Type: PNP |
| Connector Type: Three-Pin; M8 | Detection Distance (mm): 1.50 |
| Detection Distance (Decimal Inch): 0.0600 | Maximum Voltage: 12 – 24V DC |
| Overall Length (mm): 42.00 | Overall Width (mm): 10.00 |
| Overall Width (Decimal Inch – 4 Decimals): 0.3900 | Sensor Head Size: M8 |
| Ingress Protection Rating: IP67 | Maximum Load Capacity (mA): 200 |
| Overall Width/Diameter (mm): 10 | Thread Size: M8x1 |
| Housing Material: Stainless Steel | Resistance Features: Shock-Resistant; Vibration-Resistant |
| Minimum Operating Temperature: -13 F | Standards: UL Listed; CE Listed; IEC 60068-2-6; IEC 60529; CSA Certified; RoHS Compliant; IEC 60068-2-27 |
| Number Of Wires: 3.000 | Response Frequency (Hz): 5000 |
| UNSPSC Code: 39122230 | Country of Origin: Indonesia |
| Sensor Type: Inductive | |
| Body Shape: Cylinder Shielded | |
| Sensor Operation Output Mode: NO | |
| Output Type: PNP | |
| Connector Type: Three-Pin; M8 | |
| Detection Distance (mm): 1.50 | |
| Detection Distance (Decimal Inch): 0.0600 | |
| Maximum Voltage: 12 – 24V DC | |
| Overall Length (mm): 42.00 | |
| Overall Width (mm): 10.00 | |
| Overall Width (Decimal Inch – 4 Decimals): 0.3900 | |
| Sensor Head Size: M8 | |
| Ingress Protection Rating: IP67 | |
| Maximum Load Capacity (mA): 200 | |
| Overall Width/Diameter (mm): 10 | |
| Thread Size: M8x1 | |
| Housing Material: Stainless Steel | |
| Resistance Features: Shock-Resistant; Vibration-Resistant | |
| Minimum Operating Temperature: -13 F | |
| Standards: UL Listed; CE Listed; IEC 60068-2-6; IEC 60529; CSA Certified; RoHS Compliant; IEC 60068-2-27 | |
| Number Of Wires: 3.000 | |
| Response Frequency (Hz): 5000 | |
| UNSPSC Code: 39122230 | |
| Country of Origin: Indonesia |
| MSC# | 59758474 |
| Mfr# | XS508B1PAM8 |
| Big Book# | 3675 |
