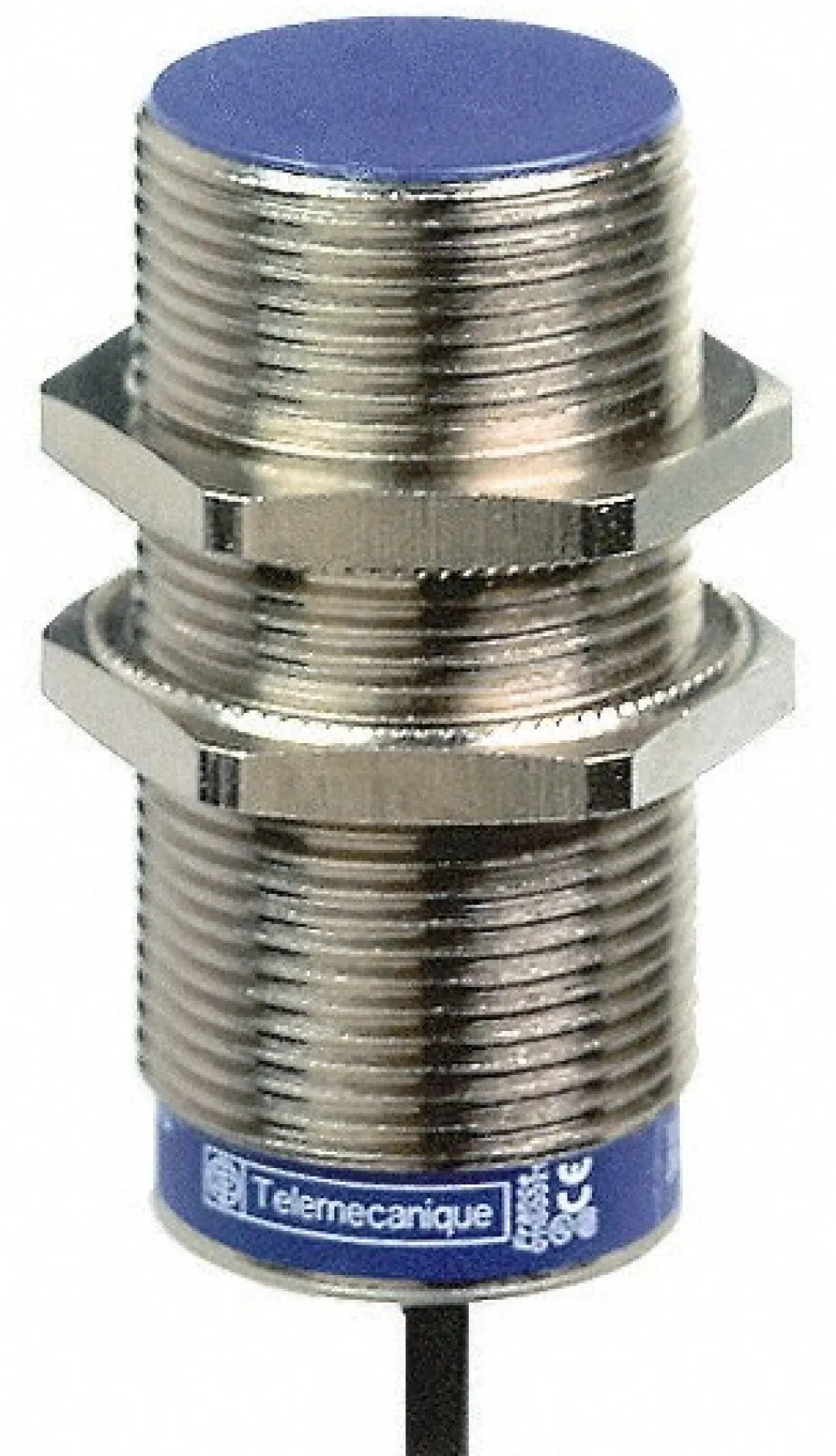

Inductive Proximity Sensor: Cylinder Shielded, 0.59″ Detection Distance
112,89 $
Specifications
| Sensor Type: Inductive | Body Shape: Cylinder Shielded |
| Sensor Operation Output Mode: NO | Output Type: NO |
| Connector Type: Cable | Detection Distance (mm): 15.00 |
| Detection Distance (Decimal Inch): 0.5900 | Maximum Voltage: 24 – 240V AC/V DC |
| Overall Length (Decimal Inch): 2.4400 | Overall Length (mm): 62.00 |
| Sensor Head Size: M30 | Ingress Protection Rating: IP69K; IP68 |
| Maximum Load Capacity (mA): 300 | Thread Size: M30x1.5 |
| Housing Material: Brass | Resistance Features: Shock-Resistant; Vibration-Resistant |
| Minimum Operating Temperature: -13 F | Standards: UL Listed; CE Listed; IEC 60068-2-6; IEC 60529; CSA Certified; RoHS Compliant; IEC 60068-2-27; DIN 40050 |
| Number Of Wires: 2.000 | Response Frequency (Hz): 500 |
| UNSPSC Code: 39122230 | Country of Origin: VARIOUS |
| Sensor Type: Inductive | |
| Body Shape: Cylinder Shielded | |
| Sensor Operation Output Mode: NO | |
| Output Type: NO | |
| Connector Type: Cable | |
| Detection Distance (mm): 15.00 | |
| Detection Distance (Decimal Inch): 0.5900 | |
| Maximum Voltage: 24 – 240V AC/V DC | |
| Overall Length (Decimal Inch): 2.4400 | |
| Overall Length (mm): 62.00 | |
| Sensor Head Size: M30 | |
| Ingress Protection Rating: IP69K; IP68 | |
| Maximum Load Capacity (mA): 300 | |
| Thread Size: M30x1.5 | |
| Housing Material: Brass | |
| Resistance Features: Shock-Resistant; Vibration-Resistant | |
| Minimum Operating Temperature: -13 F | |
| Standards: UL Listed; CE Listed; IEC 60068-2-6; IEC 60529; CSA Certified; RoHS Compliant; IEC 60068-2-27; DIN 40050 | |
| Number Of Wires: 2.000 | |
| Response Frequency (Hz): 500 | |
| UNSPSC Code: 39122230 | |
| Country of Origin: VARIOUS |
| MSC# | 59758276 |
| Mfr# | XS630B1MAL2 |
| Big Book# | 3675 |
