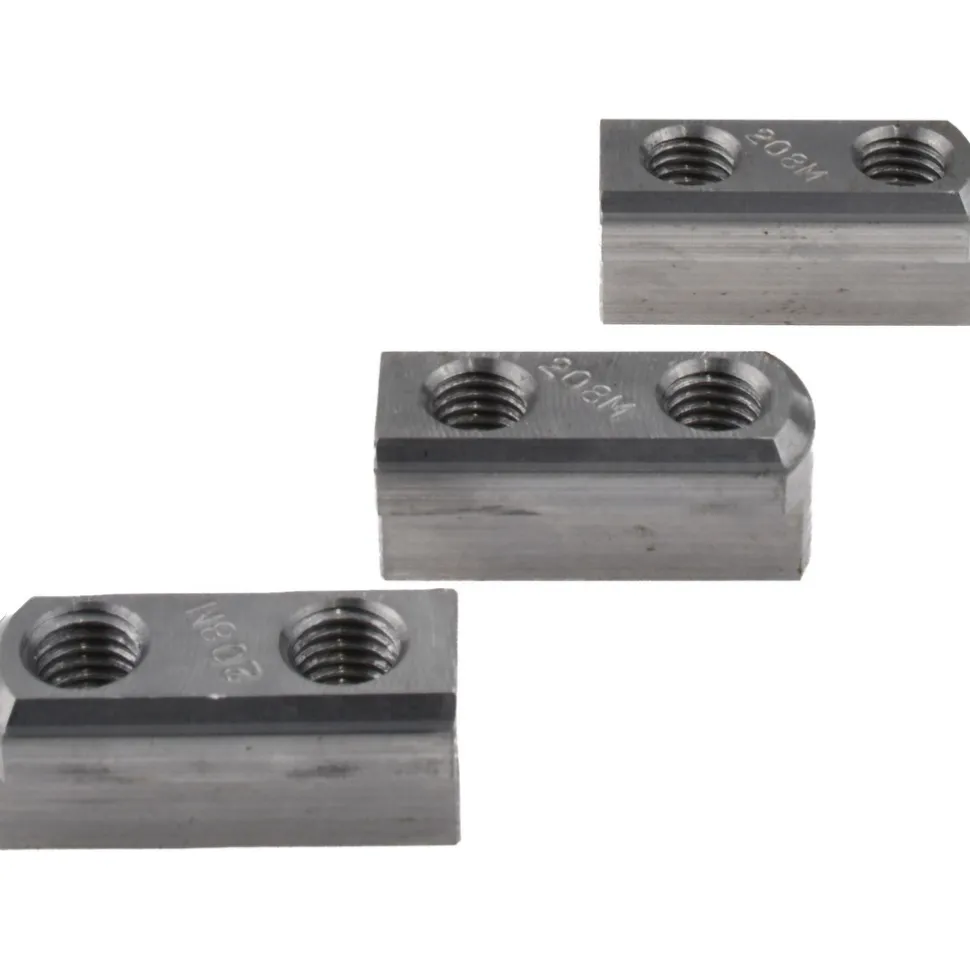

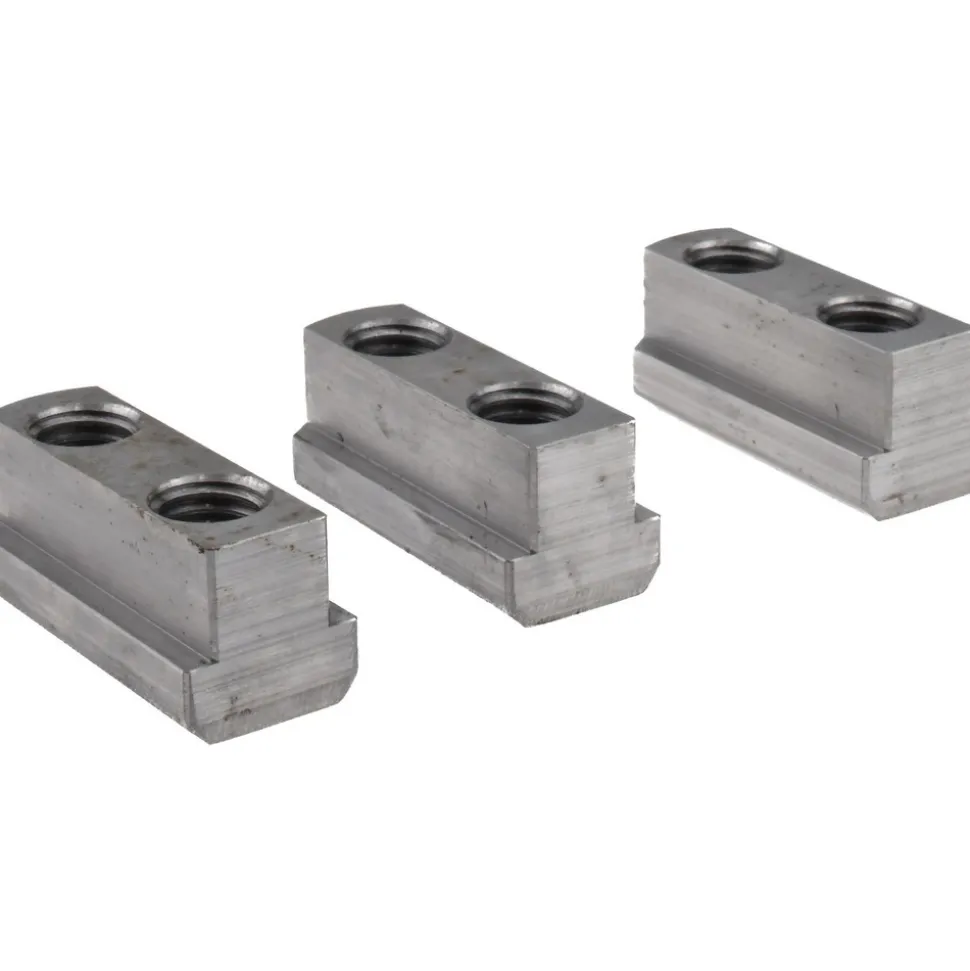

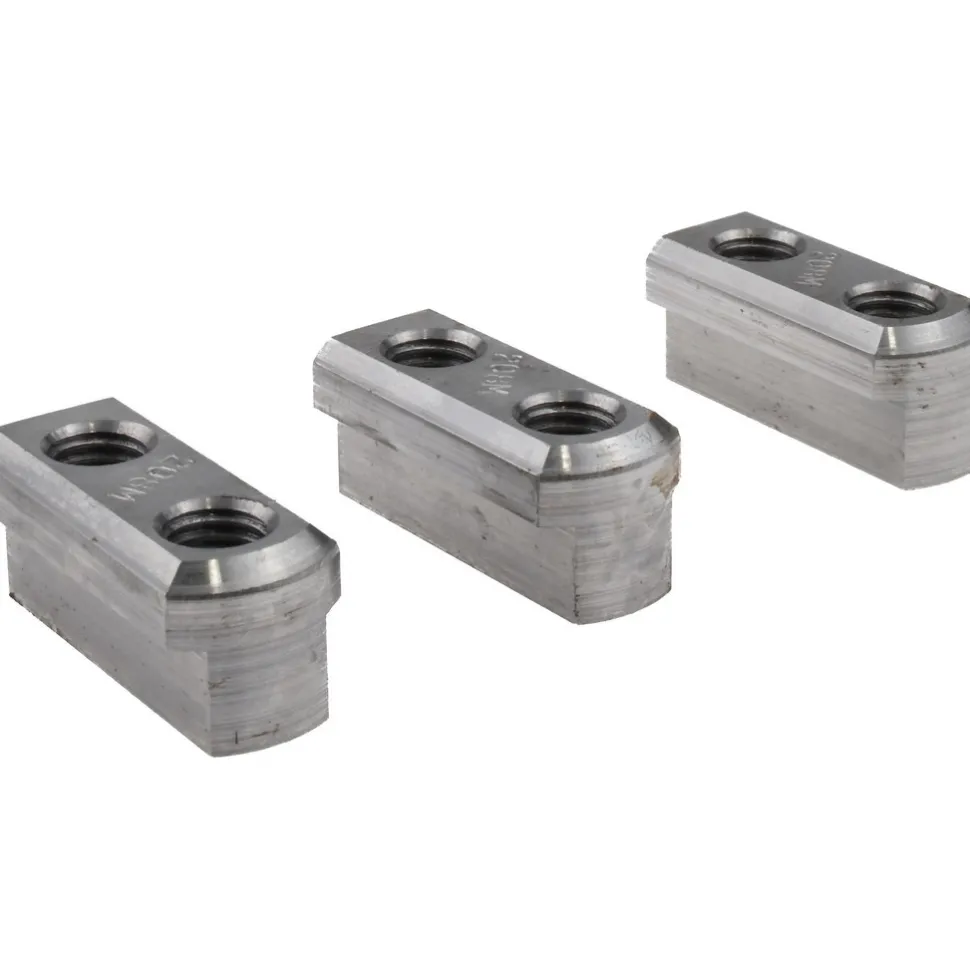

Lathe Chuck Jaw Nut

69,99 $

Specifications

Accessory Type: Jaw Nut	Product Compatibility: 8 in Kitagawa Chuck B-208
Chuck Diameter Compatibility (Decimal Inch): 8.0000	Groove Width (Decimal Inch): 0.5490
Product Length (Inch): 1-7/8	Product Height (Inch): 0.8100
Product Width/Diameter (Decimal Inch): 0.8070	Number Of Pieces: 3
Distance Between Mount Holes (Fractional Inch): 1	Serration Dimensions: 1.5 mm x 60 degrees; 0.0591 x 60 degrees
Thread Size: M12	Screw Size (mm): 12.00
Distance Between Mount Hole Centers (Decimal Inch): 1.0000	UNSPSC Code: 31201609
Country of Origin: UNITED STATES
Accessory Type: Jaw Nut
Product Compatibility: 8 in Kitagawa Chuck B-208
Chuck Diameter Compatibility (Decimal Inch): 8.0000
Groove Width (Decimal Inch): 0.5490
Product Length (Inch): 1-7/8
Product Height (Inch): 0.8100
Product Width/Diameter (Decimal Inch): 0.8070
Number Of Pieces: 3
Distance Between Mount Holes (Fractional Inch): 1
Serration Dimensions: 1.5 mm x 60 degrees; 0.0591 x 60 degrees
Thread Size: M12
Screw Size (mm): 12.00
Distance Between Mount Hole Centers (Decimal Inch): 1.0000
UNSPSC Code: 31201609
Country of Origin: UNITED STATES
