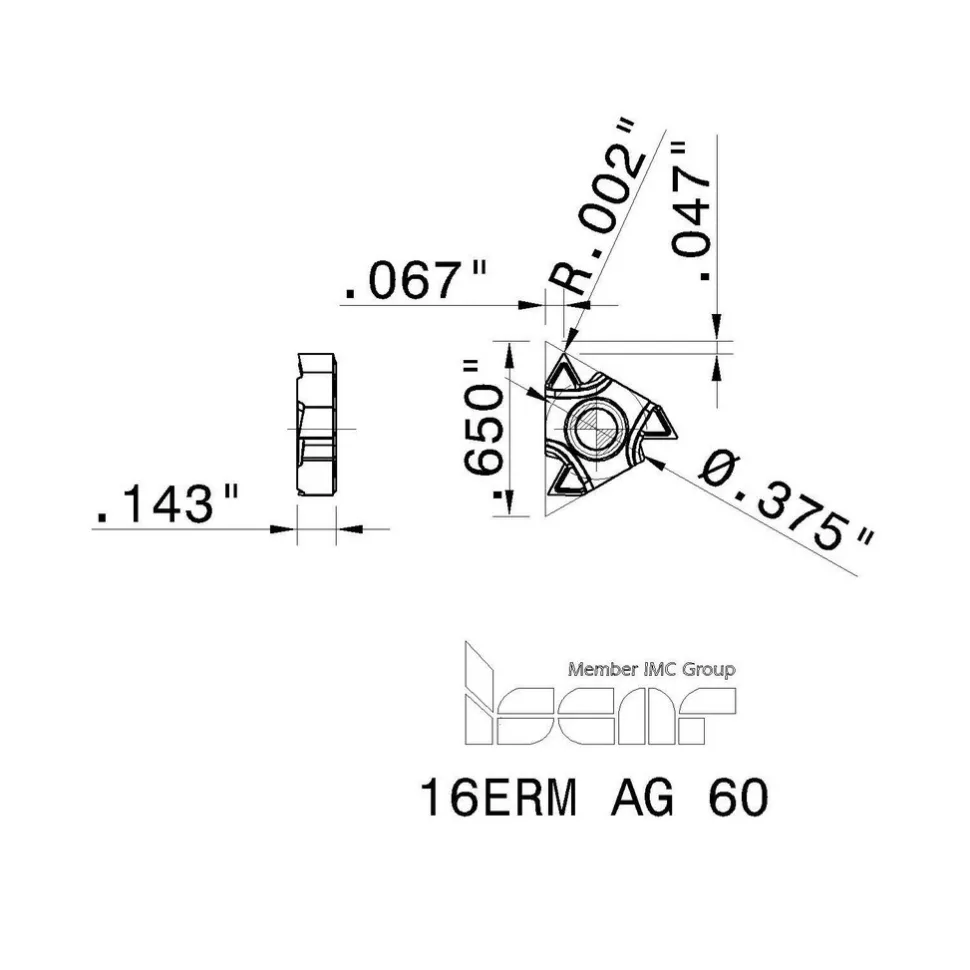

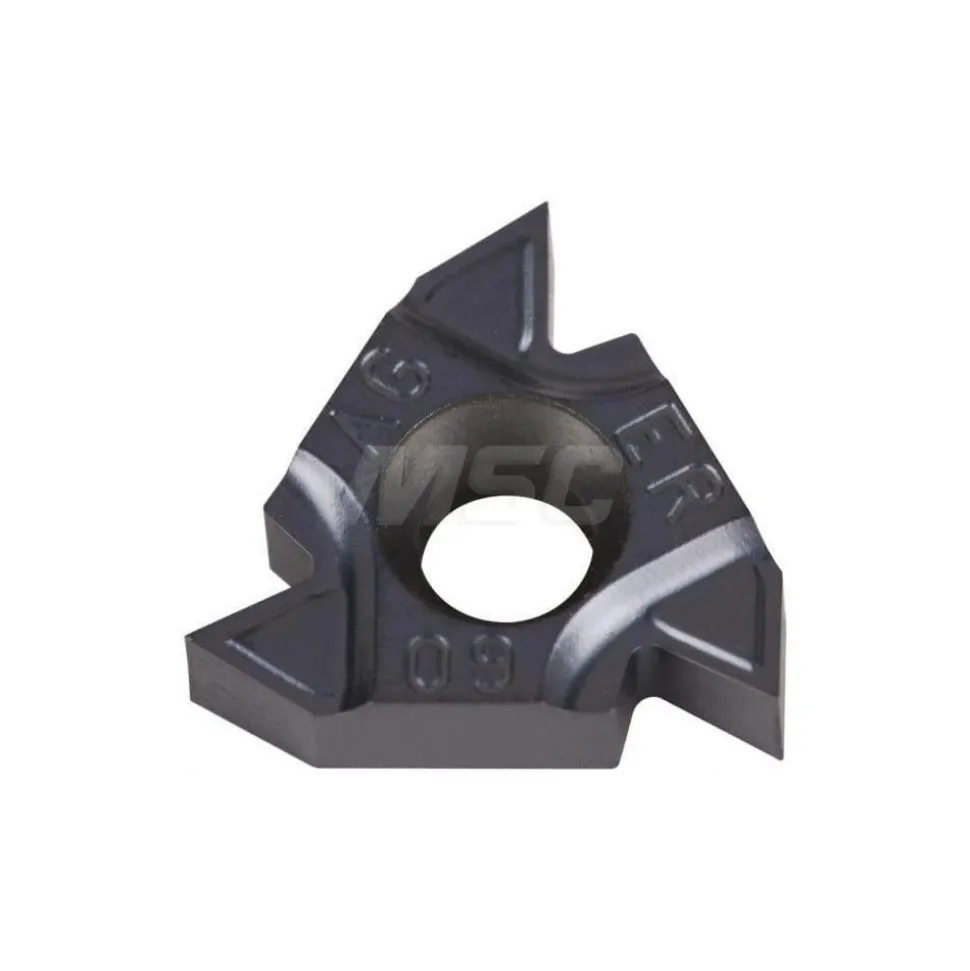

Laydown Threading Insert: 16ERMAG60 IC908, Carbide

20,89 $

Specifications

Insert Style: 16ER	Insert Size Code: 16
Insert Material: Carbide	Manufacturer Grade: IC908
Threads Per Inch: 48-8	Thread Type: External
Pitch (mm): 0.50-3.00	Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand	Chipbreaker: M
Series: ISCARTHREAD	Coating Process: PVD
Inscribed Circle (mm): 9.53	Inscribed Circle (Inch): 3/8
Corner Radius (mm): 0.06	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N	Iso Code: ISO 13399
Standards: ISO 13399	Thickness (Decimal Inch – 4 Decimals): 0.1430
Coating/Finish: TiAlN	UNSPSC Code: 23291804
Country of Origin: Israel
Insert Style: 16ER
Insert Size Code: 16
Insert Material: Carbide
Manufacturer Grade: IC908
Threads Per Inch: 48-8
Thread Type: External
Pitch (mm): 0.50-3.00
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Chipbreaker: M
Series: ISCARTHREAD
Coating Process: PVD
Inscribed Circle (mm): 9.53
Inscribed Circle (Inch): 3/8
Corner Radius (mm): 0.06
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Iso Code: ISO 13399
Standards: ISO 13399
Thickness (Decimal Inch – 4 Decimals): 0.1430
Coating/Finish: TiAlN
UNSPSC Code: 23291804
Country of Origin: Israel
