Sale!

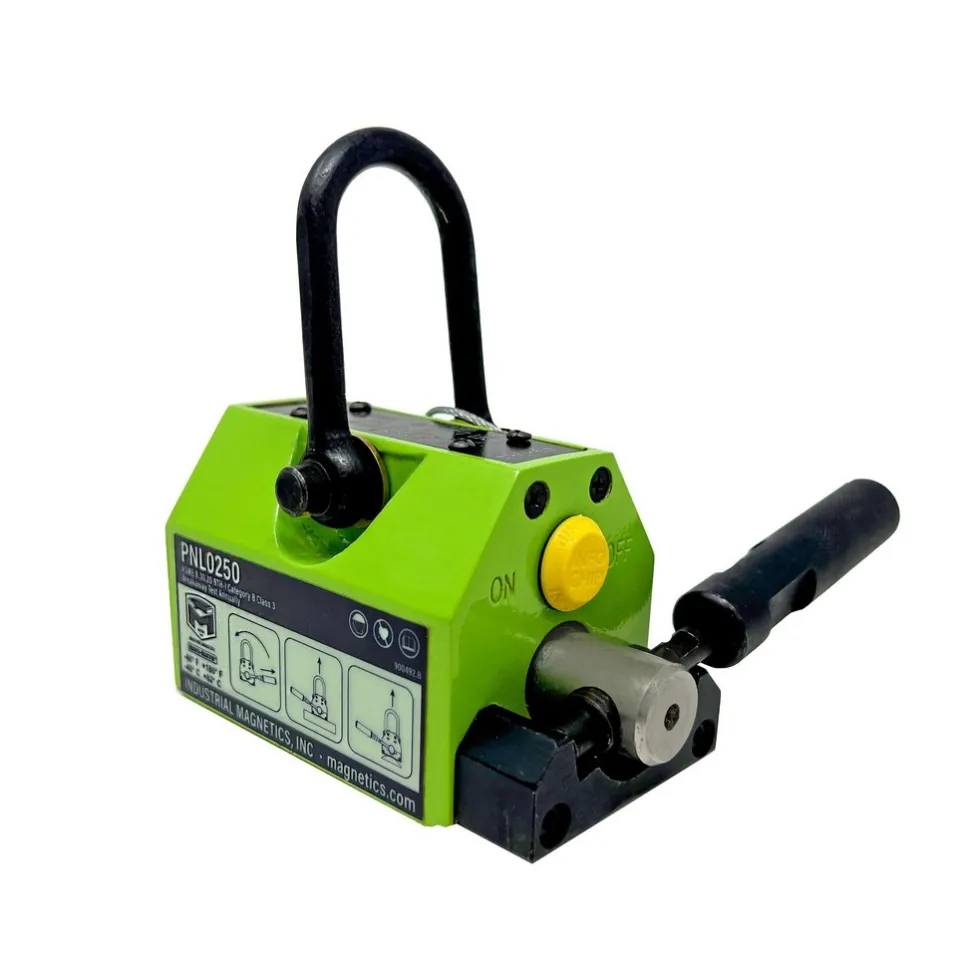

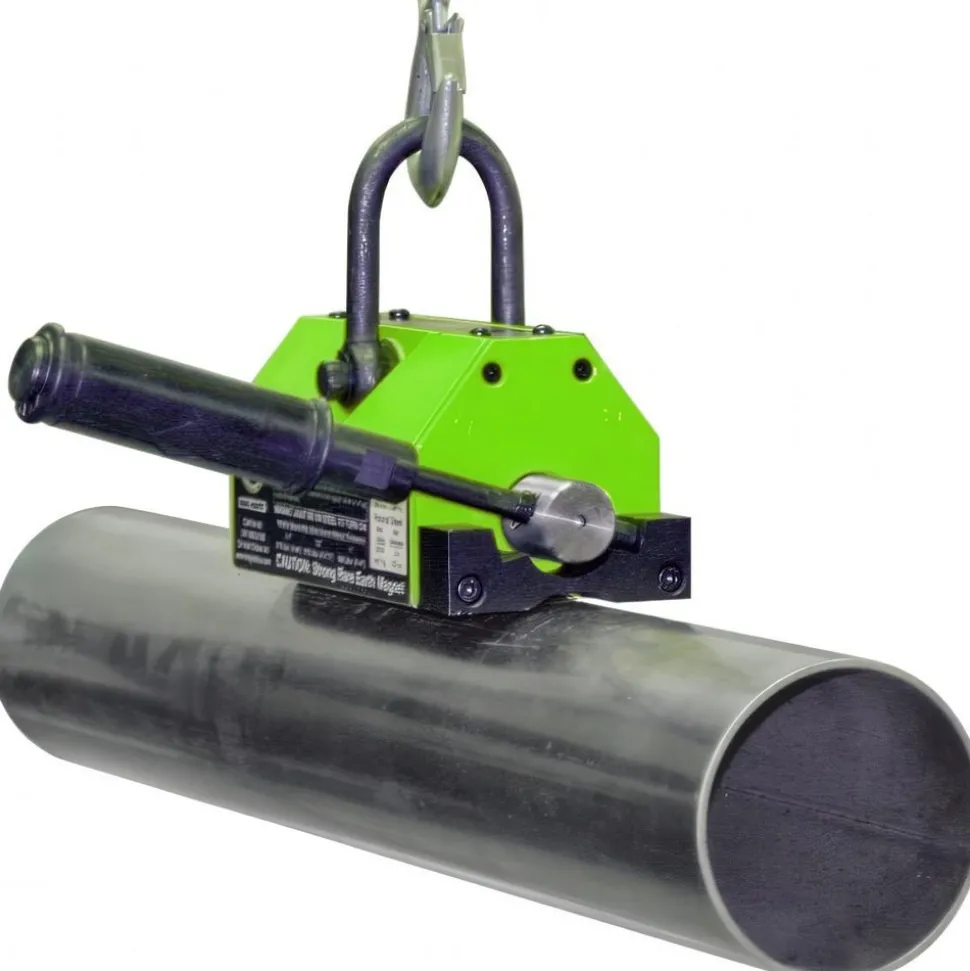

Lift Magnet: 250 lb Capacity
Original price was: 421,00 $.122,99 $Current price is: 122,99 $.
Specifications
| Magnet Type: Permanent | Magnet Activation: Locking On/Off Handle |
| Maximum Load Capacity – Lbs: 250.00 | Overall Length (Inch): 5 |
| Overall Width (Decimal Inch – 4 Decimals): 2.6250 | Overall Height (Decimal Inch): 6.6250 |
| Standards: ASME B30.20 BTH-1 Design Category B Service Class 3 | Maximum Working Temperature: 180 F |
| Number Of Poles: 2 | Handle Length (Inch): 4.0000 |
| Bail Opening Height (Inch): 1.375 | Bail Opening Width (Inch): 1.5 |
| Features: On & Off Position; Easy Internal Manual Release Does Not Contact the Load; 3:1 Design Factor; Lifts Flat or Round Loads | Additional Information: Permanent Magnetic Lifts Eliminate the Fear of Dropping the Load Being Lifted Due to Power Failures; Compact Yet Powerful Rare Earth Powerlift® Lift Magnets can be used on Flat or Round Surfaces and Contain an Internal Release On/Off Device that Does Not Contact or Damage the Surface of the Part Being Lifted |
| For Use With: Flats & Rounds | Head/Holder Diameter (Fractional Inch): 2 |
| UNSPSC Code: 24101600 | Country of Origin: UNITED STATES |
| Magnet Type: Permanent | |
| Magnet Activation: Locking On/Off Handle | |
| Maximum Load Capacity – Lbs: 250.00 | |
| Overall Length (Inch): 5 | |
| Overall Width (Decimal Inch – 4 Decimals): 2.6250 | |
| Overall Height (Decimal Inch): 6.6250 | |
| Standards: ASME B30.20 BTH-1 Design Category B Service Class 3 | |
| Maximum Working Temperature: 180 F | |
| Number Of Poles: 2 | |
| Handle Length (Inch): 4.0000 | |
| Bail Opening Height (Inch): 1.375 | |
| Bail Opening Width (Inch): 1.5 | |
| Features: On & Off Position; Easy Internal Manual Release Does Not Contact the Load; 3:1 Design Factor; Lifts Flat or Round Loads | |
| Additional Information: Permanent Magnetic Lifts Eliminate the Fear of Dropping the Load Being Lifted Due to Power Failures; Compact Yet Powerful Rare Earth Powerlift® Lift Magnets can be used on Flat or Round Surfaces and Contain an Internal Release On/Off Device that Does Not Contact or Damage the Surface of the Part Being Lifted | |
| For Use With: Flats & Rounds | |
| Head/Holder Diameter (Fractional Inch): 2 | |
| UNSPSC Code: 24101600 | |
| Country of Origin: UNITED STATES |
| MSC# | 67077586 |
| Mfr# | PNL0250 |
| Big Book# | 3324 |
