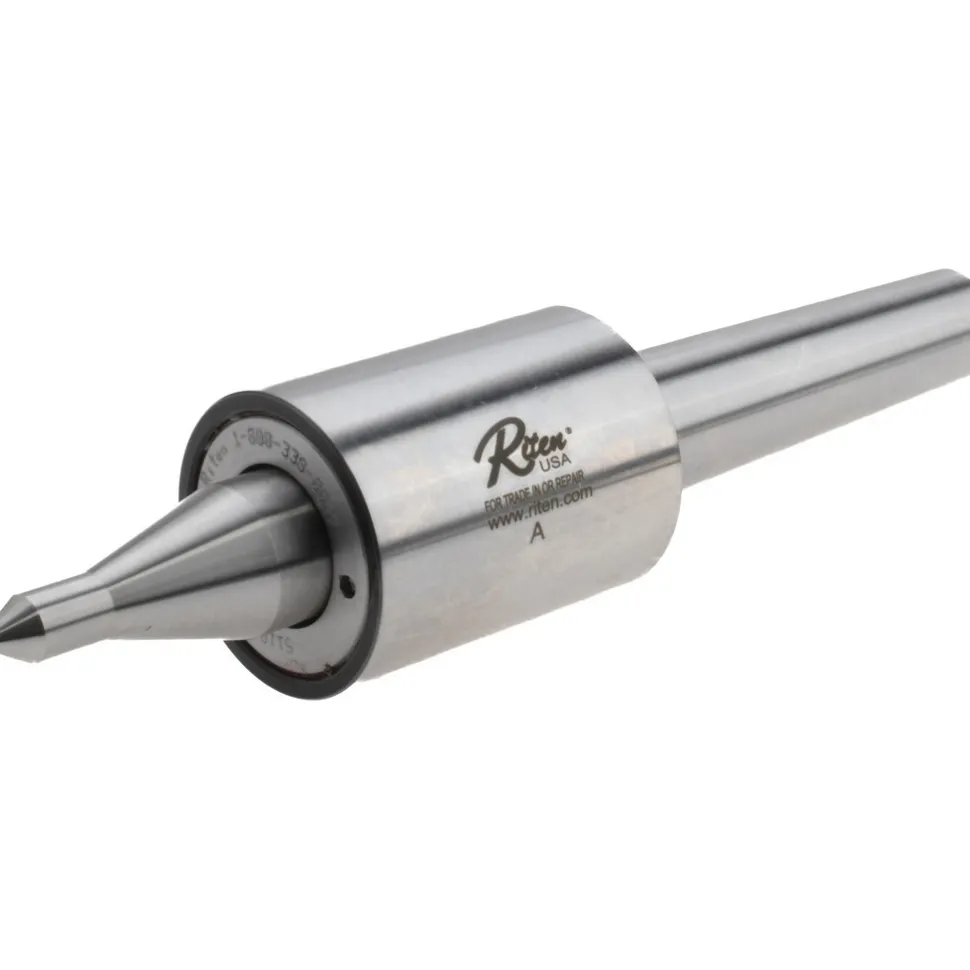

Live Center: Taper Shank, 1-3/4″ Head Dia

128,89 $

Specifications

Shank Type: Taper	Bearing Type: Quad
Material: Steel	Taper Size: MT3
Maximum Workpiece Weight (Lb.): 310.00	Point Style: Long
Point Diameter (Inch): 3/8	Tip Diameter (Inch): 3/4
Point Length (Decimal Inch): 2.0000	Point Length (Inch): 2
Accuracy: 0.00 in	Load Capacity: 4600.00 lb
Head Diameter (Inch): 1-3/4	Included Angle: 30.00
Maximum RPM: 5000	Carbide-tipped Point: No
Features: Four Bearing Design For Superior Performance; Heavy-Duty; Tri-Bearing Design; Points are Through-Hardened to 61-63 Rc; Full-Length Spindle For Extra Rigidity; Body Heat-Treated For Additional Strength; Point Configuration Allows For Tool Clearance	UNSPSC Code: 23153103
Gage Line Clearance (Inch): 3/8	Country of Origin: UNITED STATES
Shank Type: Taper
Bearing Type: Quad
Material: Steel
Taper Size: MT3
Maximum Workpiece Weight (Lb.): 310.00
Point Style: Long
Point Diameter (Inch): 3/8
Tip Diameter (Inch): 3/4
Point Length (Decimal Inch): 2.0000
Point Length (Inch): 2
Accuracy: 0.00 in
Load Capacity: 4600.00 lb
Head Diameter (Inch): 1-3/4
Included Angle: 30.00
Maximum RPM: 5000
Carbide-tipped Point: No
Features: Four Bearing Design For Superior Performance; Heavy-Duty; Tri-Bearing Design; Points are Through-Hardened to 61-63 Rc; Full-Length Spindle For Extra Rigidity; Body Heat-Treated For Additional Strength; Point Configuration Allows For Tool Clearance
UNSPSC Code: 23153103
Gage Line Clearance (Inch): 3/8
Country of Origin: UNITED STATES
