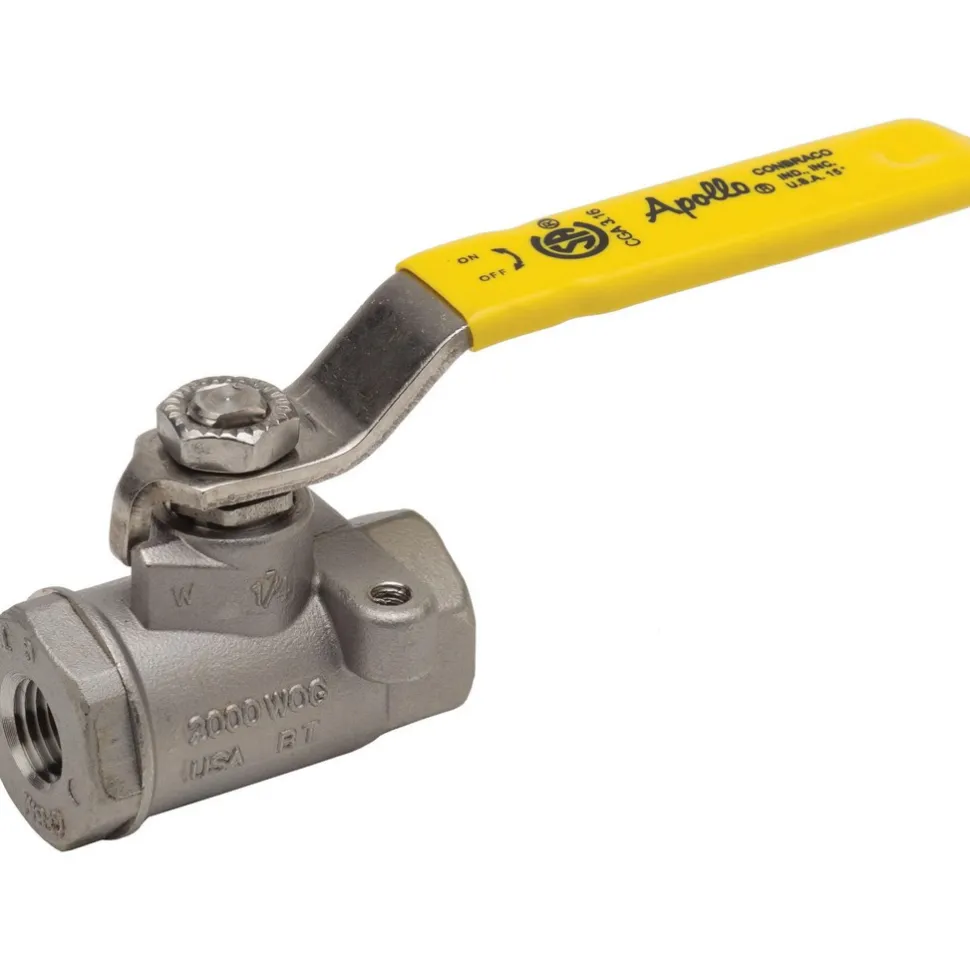

Manual Ball Valve: 3/4″ Pipe, Standard Port, Stainless Steel
127,89 $
Specifications
| Valve Type: Standard | Pipe Size: 3/4 |
| Body Material: Stainless Steel | End Connection: FNPT |
| Port Type: Standard | Handle Type: Locking Lever |
| Style: 2-Piece | Steam Pressure Rating (psi): 150 |
| Thread Size: 3/4 | Temperature Range: -50°F to 450°F |
| Thread Size: 3/4 in | Trim Material: Stainless Steel |
| Seal Material: Polytetrafluroethylene | Maximum Working Temperature (F): 450.000 |
| Minimum Working Temperature (Deg F): -50 | WOG Rating (psi): 2000 |
| Special Item Information: With Mounting Pad | Seat Material: Reinforced Polytetrafluroethylene |
| Length (Decimal Inch – 4 Decimals): 2.9600 | Number Of Pieces: 2 |
| Female Pipe Size: 3/4 | UNSPSC Code: 40141607 |
| Country of Origin: UNITED STATES | |
| Valve Type: Standard | |
| Pipe Size: 3/4 | |
| Body Material: Stainless Steel | |
| End Connection: FNPT | |
| Port Type: Standard | |
| Handle Type: Locking Lever | |
| Style: 2-Piece | |
| Steam Pressure Rating (psi): 150 | |
| Thread Size: 3/4 | |
| Temperature Range: -50°F to 450°F | |
| Thread Size: 3/4 in | |
| Trim Material: Stainless Steel | |
| Seal Material: Polytetrafluroethylene | |
| Maximum Working Temperature (F): 450.000 | |
| Minimum Working Temperature (Deg F): -50 | |
| WOG Rating (psi): 2000 | |
| Special Item Information: With Mounting Pad | |
| Seat Material: Reinforced Polytetrafluroethylene | |
| Length (Decimal Inch – 4 Decimals): 2.9600 | |
| Number Of Pieces: 2 | |
| Female Pipe Size: 3/4 | |
| UNSPSC Code: 40141607 | |
| Country of Origin: UNITED STATES |
| MSC# | 11299898 |
| Mfr# | 7610427A |
