Sale!

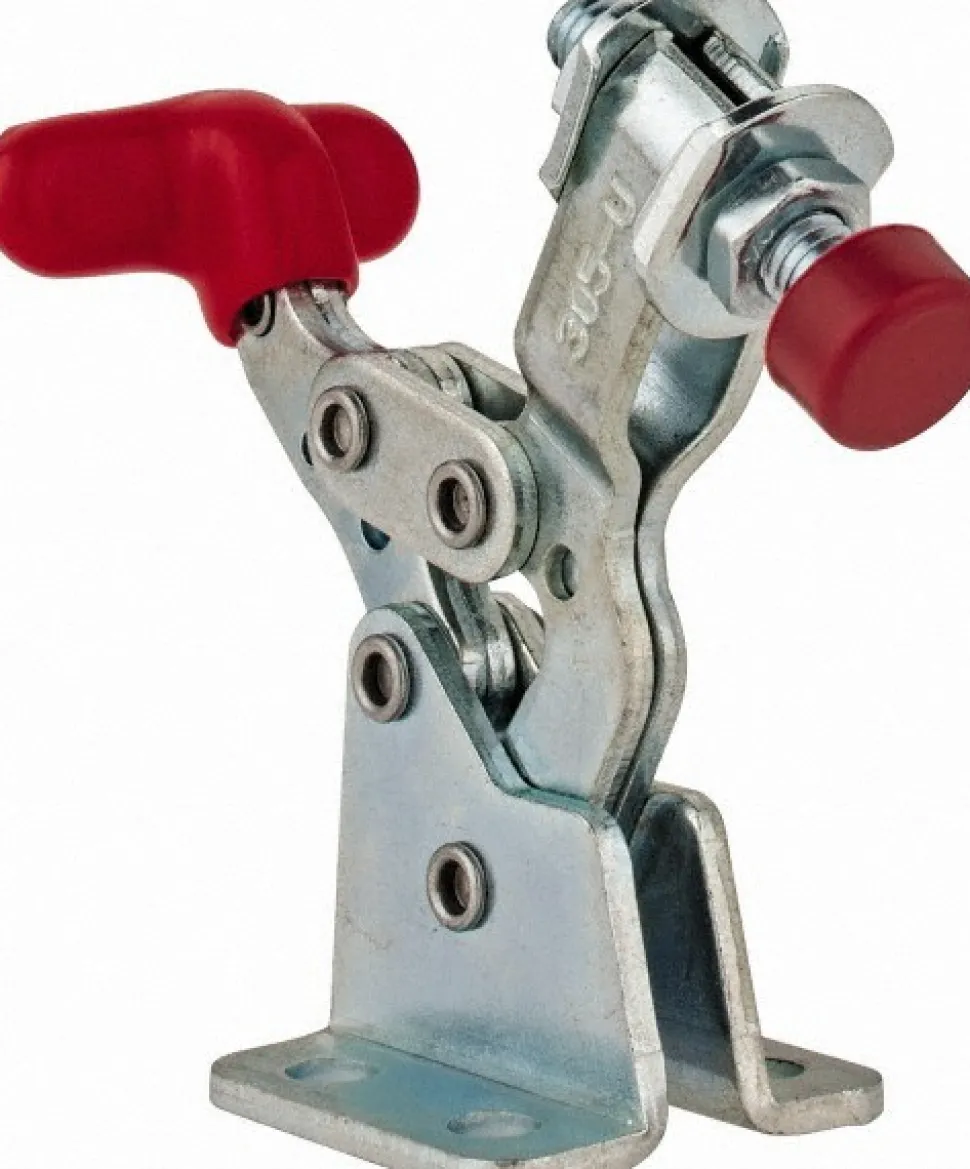

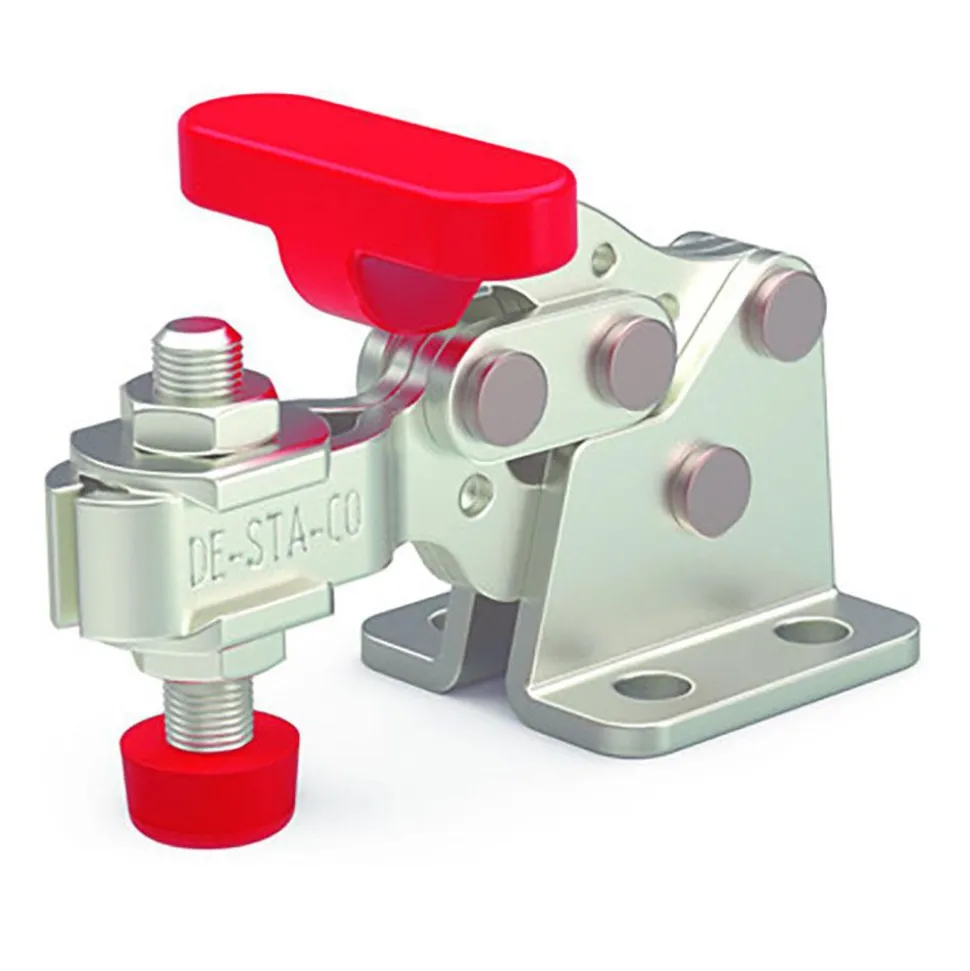

Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base
Original price was: 15,00 $.10,89 $Current price is: 10,89 $.
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 665.00 | Holding Capacity (Lb.): 150.00 |
| Length Distance Between Mount Holes (mm): 13.46 | Length Distance Between Mount Holes: 0.53 in; 13.46 mm |
| Length Distance Between Mount Holes (Inch): 0.53 | Width Distance Between Mount Holes (mm): 16.00 |
| Width Distance Between Mount Holes: 0.63 in; 16 mm | Width Distance Between Mount Holes (Decimal Inch): 0.6300 |
| Height Under Bar (Decimal Inch): 0.4800 | Height Under Bar (mm): 12.19 |
| Overall Length (mm): 56.13 | Overall Length (Decimal Inch): 2.2100 |
| Overall Height (Decimal Inch): 1.4300 | Overall Height (mm): 36.32 |
| Base Length (mm): 25.91 | Base Width (Inch): 1.0000 |
| Base Width (mm): 25.40 | Handle Style: T-Handle |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 4.57 |
| Mounting Hole Diameter (Decimal Inch): 0.1800 | Bar Opening (Degrees): 90 |
| Handle Movement (Degrees): 170 | Maximum Mechanical Advantage: 03:01; 02:01 |
| Spindle Thread Size: M5x0.8 | Spindle Length (mm): 29.00 |
| Spindle Travel (Inch): 0.5000 | Spindle Travel (mm): 12.70 |
| Bar Width (mm): 7.87 | Bar Width (Decimal Inch): 0.3100 |
| UNSPSC Code: 31162902 | Handle Width (Decimal Inch): 1.0600 |
| Front Of Base To Toggle Tip: 1.19 in | Includes: (2) Nuts; (1) Spindle; (2) Washers |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.1900 | Front of Base To Tip Of Toggle Bar (mm): 30.23 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: VARIOUS | |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 665.00 | |
| Holding Capacity (Lb.): 150.00 | |
| Length Distance Between Mount Holes (mm): 13.46 | |
| Length Distance Between Mount Holes: 0.53 in; 13.46 mm | |
| Length Distance Between Mount Holes (Inch): 0.53 | |
| Width Distance Between Mount Holes (mm): 16.00 | |
| Width Distance Between Mount Holes: 0.63 in; 16 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 0.6300 | |
| Height Under Bar (Decimal Inch): 0.4800 | |
| Height Under Bar (mm): 12.19 | |
| Overall Length (mm): 56.13 | |
| Overall Length (Decimal Inch): 2.2100 | |
| Overall Height (Decimal Inch): 1.4300 | |
| Overall Height (mm): 36.32 | |
| Base Length (mm): 25.91 | |
| Base Width (Inch): 1.0000 | |
| Base Width (mm): 25.40 | |
| Handle Style: T-Handle | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 4.57 | |
| Mounting Hole Diameter (Decimal Inch): 0.1800 | |
| Bar Opening (Degrees): 90 | |
| Handle Movement (Degrees): 170 | |
| Maximum Mechanical Advantage: 03:01; 02:01 | |
| Spindle Thread Size: M5x0.8 | |
| Spindle Length (mm): 29.00 | |
| Spindle Travel (Inch): 0.5000 | |
| Spindle Travel (mm): 12.70 | |
| Bar Width (mm): 7.87 | |
| Bar Width (Decimal Inch): 0.3100 | |
| UNSPSC Code: 31162902 | |
| Handle Width (Decimal Inch): 1.0600 | |
| Front Of Base To Toggle Tip: 1.19 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 1.1900 | |
| Front of Base To Tip Of Toggle Bar (mm): 30.23 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 08096307 |
| Mfr# | 305-U |
| Big Book# | 1314 |
Be the first to review “Manual Hold-Down Toggle Clamp: Horizontal, 150.00 lb Capacity, U-Bar, Flanged Base”
