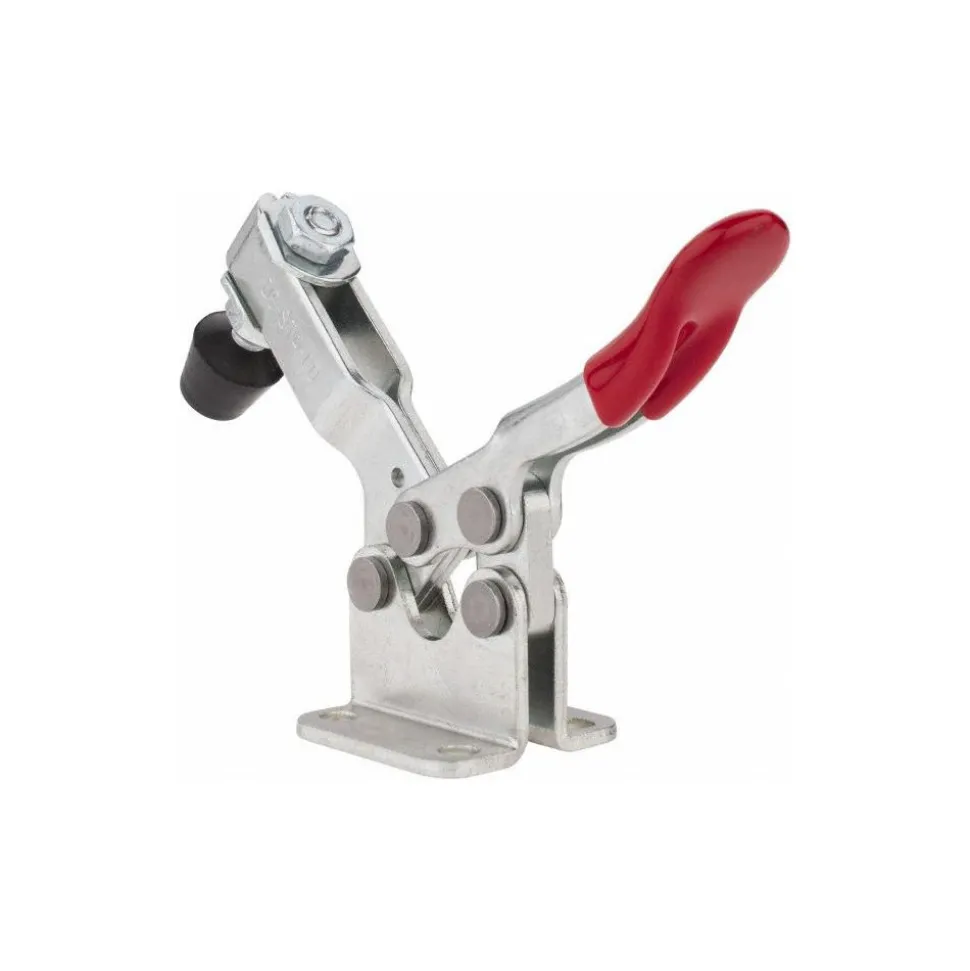

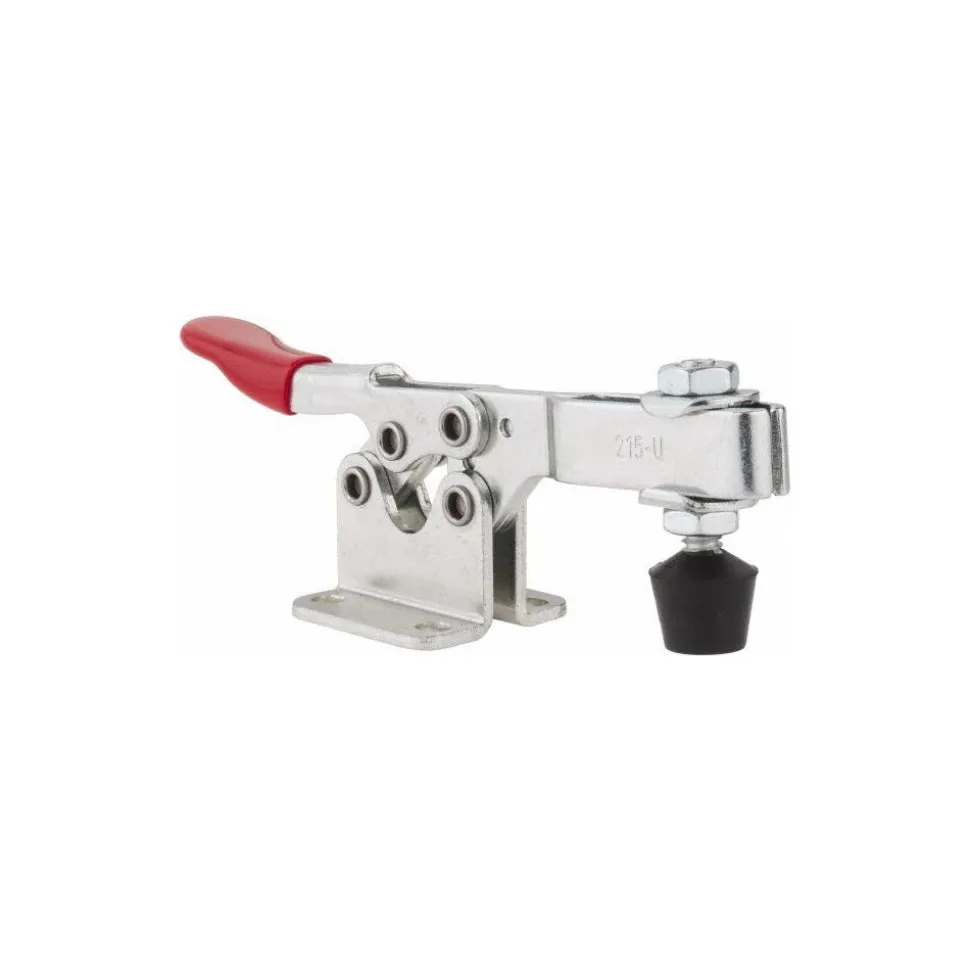

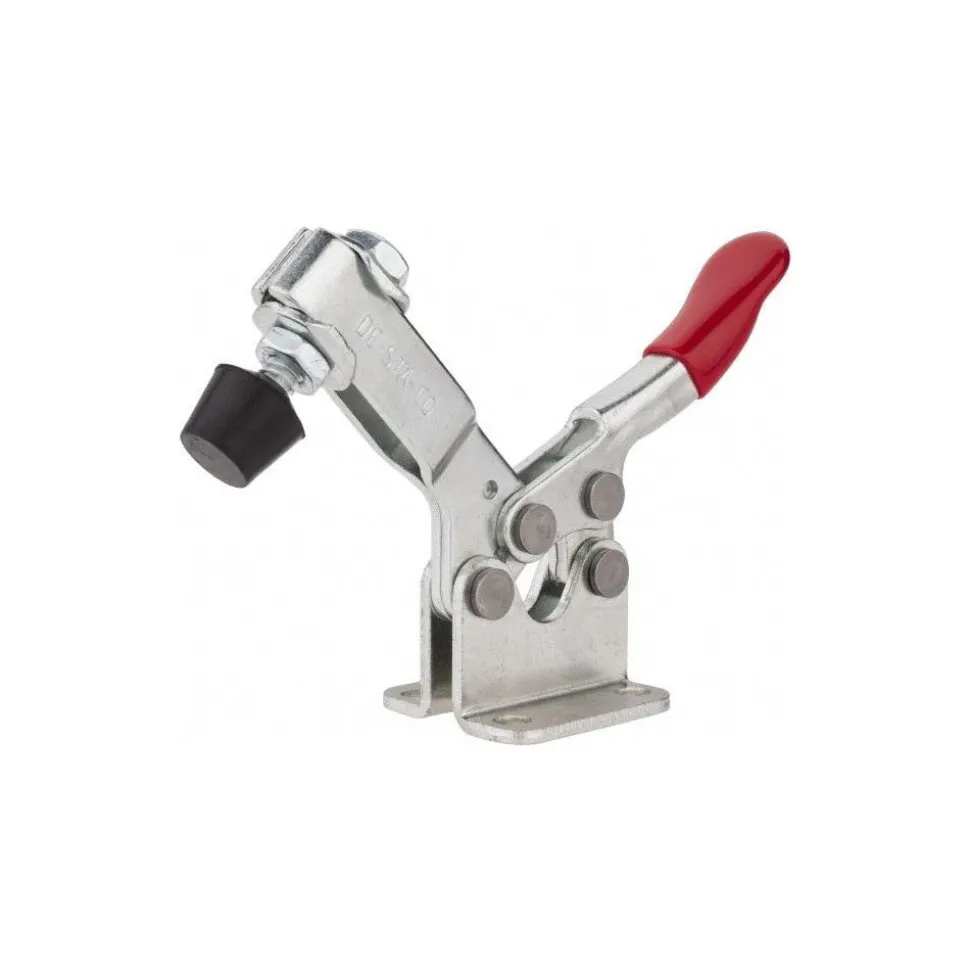

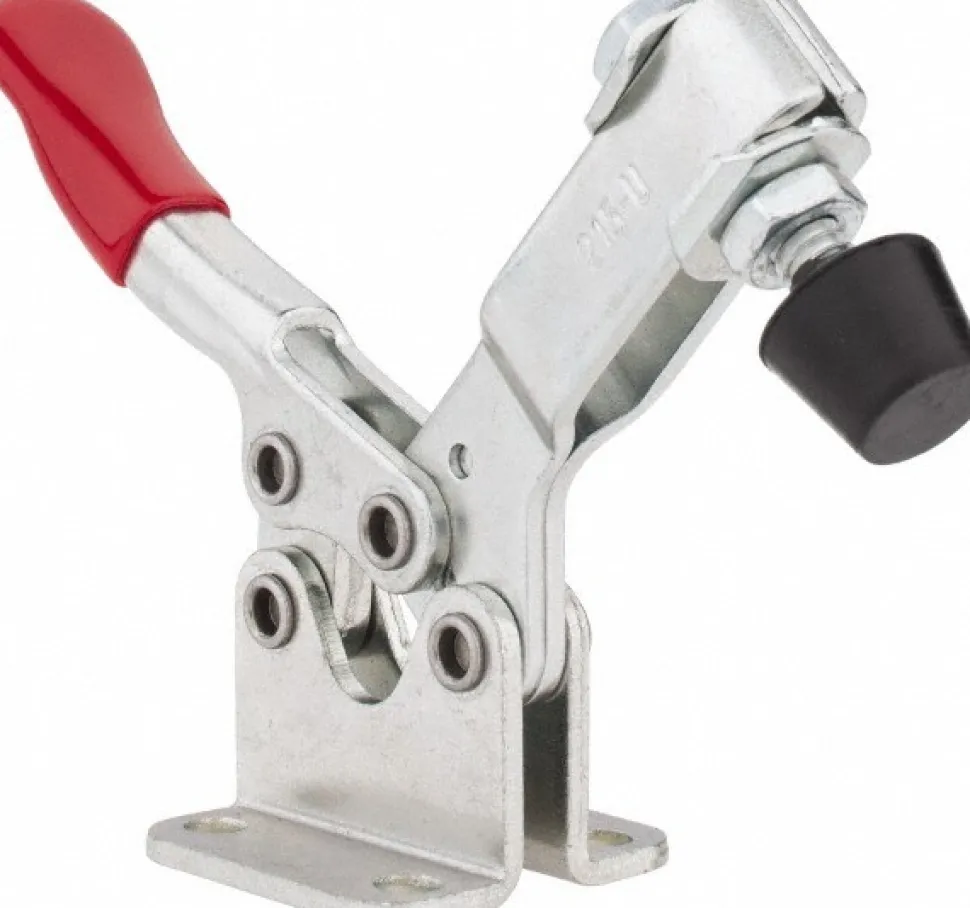

Manual Hold-Down Toggle Clamp: Horizontal, 200.00 lb Capacity, U-Bar, Flanged Base
12,89 $
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 890.00 | Holding Capacity (Lb.): 200.00 |
| Length Distance Between Mount Holes (mm): 27.00 | Length Distance Between Mount Holes: 27 mm; 1.06 in |
| Length Distance Between Mount Holes (Inch): 1.06 | Width Distance Between Mount Holes (mm): 22.10 |
| Width Distance Between Mount Holes: 0.87 in; 22.1 mm | Width Distance Between Mount Holes (Decimal Inch): 0.8700 |
| Height Under Bar (Decimal Inch): 1.0000 | Height Under Bar (mm): 25.40 |
| Overall Length (mm): 138.68 | Overall Length (Decimal Inch): 5.4600 |
| Overall Height (Decimal Inch): 1.5300 | Overall Height (mm): 38.86 |
| Base Length (mm): 36.32 | Base Width (Inch): 1.3800 |
| Base Width (mm): 35.05 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (Decimal Inch): 0.2000 |
| Bar Opening (Degrees): 87 | Handle Movement (Degrees): 78 |
| Maximum Mechanical Advantage: 04:01; 09:01 | Spindle Thread Size: M6x1.0 |
| Spindle Length (mm): 44.00 | Spindle Travel (Inch): 1.2600 |
| Spindle Travel (mm): 32.00 | Bar Width (Inch): 1/2 |
| Bar Width (mm): 12.70 | Bar Width (Decimal Inch): 0.5000 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 2.25 in |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.2500 |
| Front of Base To Tip Of Toggle Bar (mm): 57.15 | Number Of Mounting Holes: 4.000 |
| Finish Coating: Zinc | Country of Origin: VARIOUS |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 890.00 | |
| Holding Capacity (Lb.): 200.00 | |
| Length Distance Between Mount Holes (mm): 27.00 | |
| Length Distance Between Mount Holes: 27 mm; 1.06 in | |
| Length Distance Between Mount Holes (Inch): 1.06 | |
| Width Distance Between Mount Holes (mm): 22.10 | |
| Width Distance Between Mount Holes: 0.87 in; 22.1 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 0.8700 | |
| Height Under Bar (Decimal Inch): 1.0000 | |
| Height Under Bar (mm): 25.40 | |
| Overall Length (mm): 138.68 | |
| Overall Length (Decimal Inch): 5.4600 | |
| Overall Height (Decimal Inch): 1.5300 | |
| Overall Height (mm): 38.86 | |
| Base Length (mm): 36.32 | |
| Base Width (Inch): 1.3800 | |
| Base Width (mm): 35.05 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (Decimal Inch): 0.2000 | |
| Bar Opening (Degrees): 87 | |
| Handle Movement (Degrees): 78 | |
| Maximum Mechanical Advantage: 04:01; 09:01 | |
| Spindle Thread Size: M6x1.0 | |
| Spindle Length (mm): 44.00 | |
| Spindle Travel (Inch): 1.2600 | |
| Spindle Travel (mm): 32.00 | |
| Bar Width (Inch): 1/2 | |
| Bar Width (mm): 12.70 | |
| Bar Width (Decimal Inch): 0.5000 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 2.25 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.2500 | |
| Front of Base To Tip Of Toggle Bar (mm): 57.15 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 76988187 |
| Mfr# | 215-U |
| Big Book# | 1314 |
