Sale!

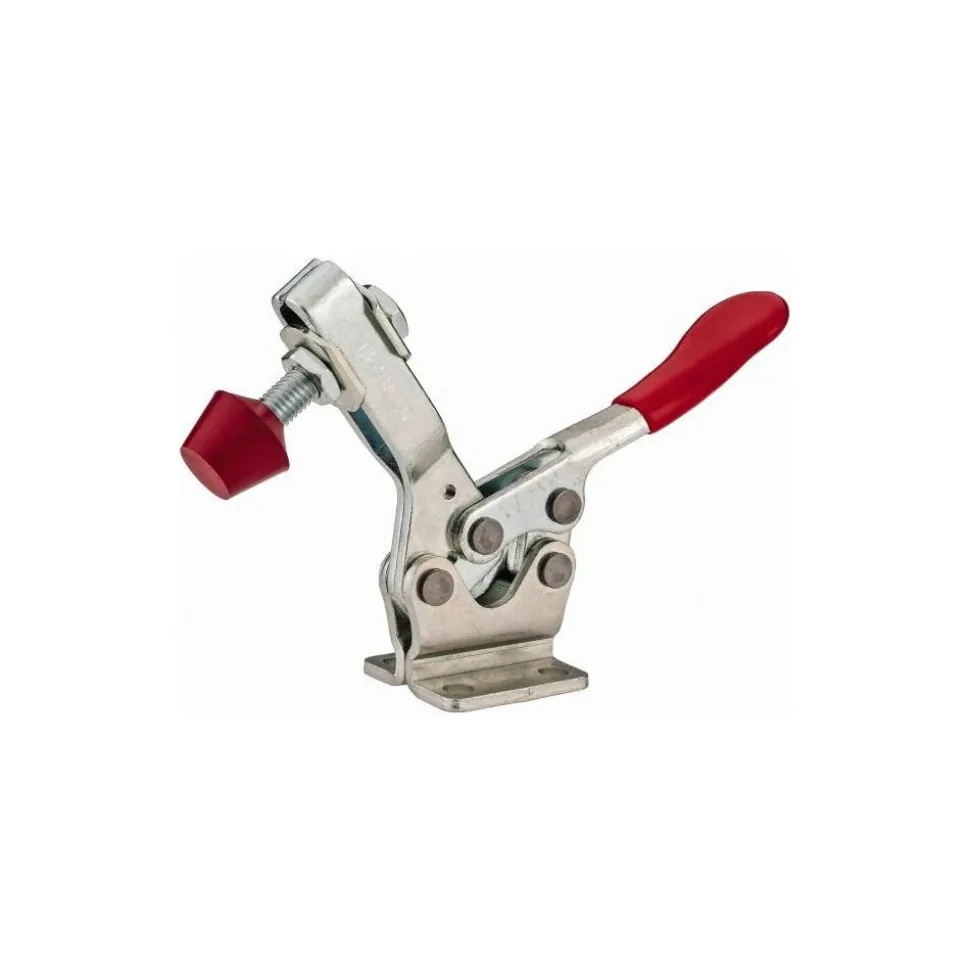

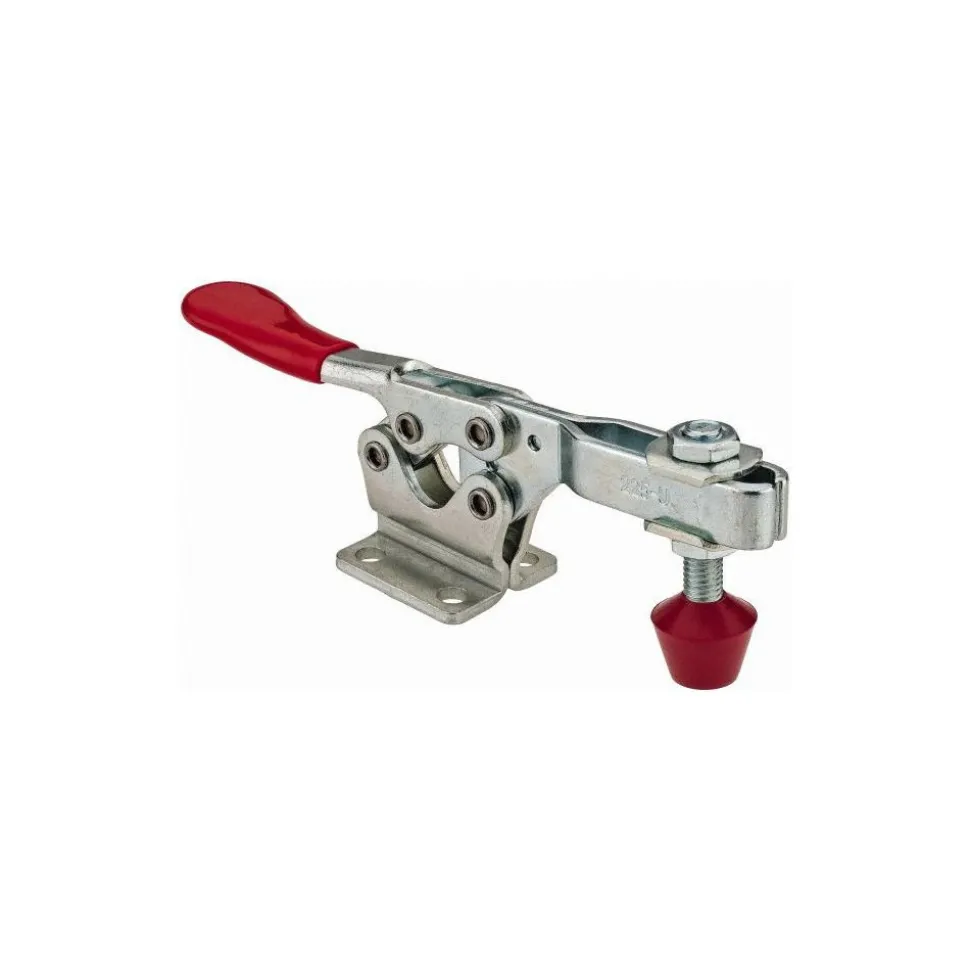

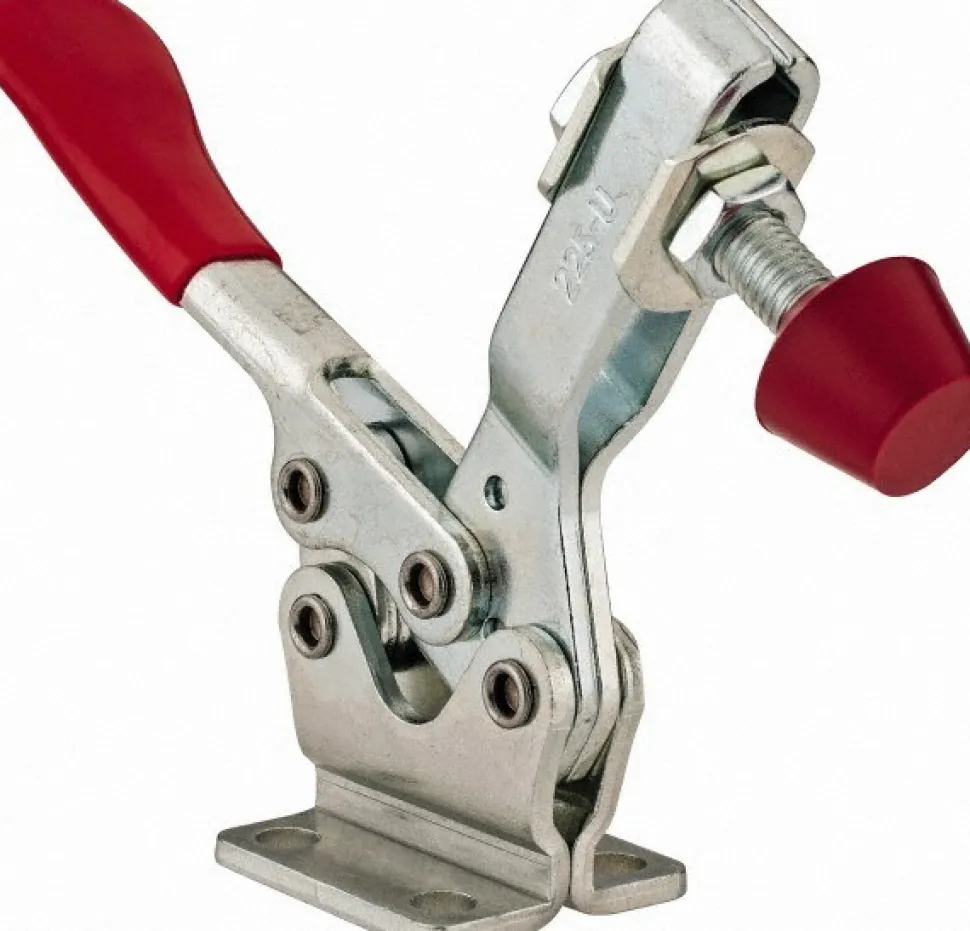

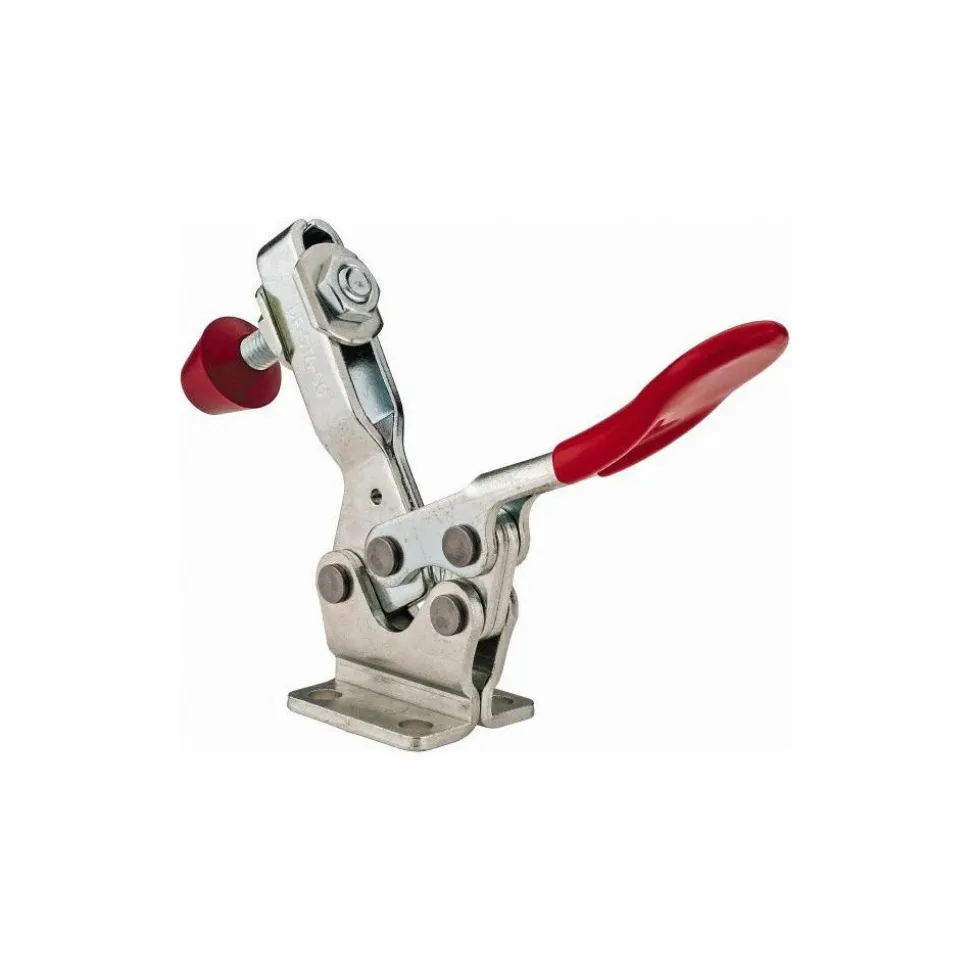

Manual Hold-Down Toggle Clamp: Horizontal, 500.00 lb Capacity, U-Bar, Flanged Base
Original price was: 18,00 $.12,99 $Current price is: 12,99 $.
Specifications
| Handle Orientation: Horizontal | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 2220.00 | Holding Capacity (Lb.): 500.00 |
| Length Distance Between Mount Holes (mm): 25.40 | Length Distance Between Mount Holes: 1 in; 25.4 mm |
| Length Distance Between Mount Holes (Inch): 1.0 | Width Distance Between Mount Holes (mm): 22.10 |
| Width Distance Between Mount Holes: 0.87 in; 22.1 mm | Width Distance Between Mount Holes (Decimal Inch): 0.8700 |
| Height Under Bar (Decimal Inch): 1.3100 | Height Under Bar (mm): 33.27 |
| Overall Length (mm): 175.51 | Overall Length (Decimal Inch): 6.9100 |
| Overall Height (Decimal Inch): 1.8400 | Overall Height (mm): 46.74 |
| Base Length (Inch): 1-1/2 | Base Length (mm): 38.10 |
| Base Width (Inch): 1.3700 | Base Width (mm): 34.80 |
| Handle Style: Straight | Material: Carbon Steel |
| Handle Material: Carbon Steel | Handle Color: Red |
| Mounting Hole Diameter (mm): 6.60 | Mounting Hole Diameter (Decimal Inch): 0.2600 |
| Bar Opening (Degrees): 92 | Handle Movement (Degrees): 70 |
| Maximum Mechanical Advantage: 12:01; 05:01 | Spindle Thread Size: M8x1.25 |
| Spindle Length (mm): 53.00 | Spindle Travel (Inch): 1.3800 |
| Spindle Travel (mm): 35.05 | Bar Width (Inch): 1/2 |
| Bar Width (mm): 12.70 | Bar Width (Decimal Inch): 0.5000 |
| UNSPSC Code: 31162902 | Front Of Base To Toggle Tip: 2.69 in |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.6900 |
| Front of Base To Tip Of Toggle Bar (mm): 68.33 | Number Of Mounting Holes: 4.000 |
| Finish Coating: Zinc | Country of Origin: VARIOUS |
| Handle Orientation: Horizontal | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 2220.00 | |
| Holding Capacity (Lb.): 500.00 | |
| Length Distance Between Mount Holes (mm): 25.40 | |
| Length Distance Between Mount Holes: 1 in; 25.4 mm | |
| Length Distance Between Mount Holes (Inch): 1.0 | |
| Width Distance Between Mount Holes (mm): 22.10 | |
| Width Distance Between Mount Holes: 0.87 in; 22.1 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 0.8700 | |
| Height Under Bar (Decimal Inch): 1.3100 | |
| Height Under Bar (mm): 33.27 | |
| Overall Length (mm): 175.51 | |
| Overall Length (Decimal Inch): 6.9100 | |
| Overall Height (Decimal Inch): 1.8400 | |
| Overall Height (mm): 46.74 | |
| Base Length (Inch): 1-1/2 | |
| Base Length (mm): 38.10 | |
| Base Width (Inch): 1.3700 | |
| Base Width (mm): 34.80 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 6.60 | |
| Mounting Hole Diameter (Decimal Inch): 0.2600 | |
| Bar Opening (Degrees): 92 | |
| Handle Movement (Degrees): 70 | |
| Maximum Mechanical Advantage: 12:01; 05:01 | |
| Spindle Thread Size: M8x1.25 | |
| Spindle Length (mm): 53.00 | |
| Spindle Travel (Inch): 1.3800 | |
| Spindle Travel (mm): 35.05 | |
| Bar Width (Inch): 1/2 | |
| Bar Width (mm): 12.70 | |
| Bar Width (Decimal Inch): 0.5000 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 2.69 in | |
| Includes: (2) Nuts; (1) Spindle; (2) Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 2.6900 | |
| Front of Base To Tip Of Toggle Bar (mm): 68.33 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: VARIOUS |
| MSC# | 76988625 |
| Mfr# | 225-U |
| Big Book# | 1314 |
