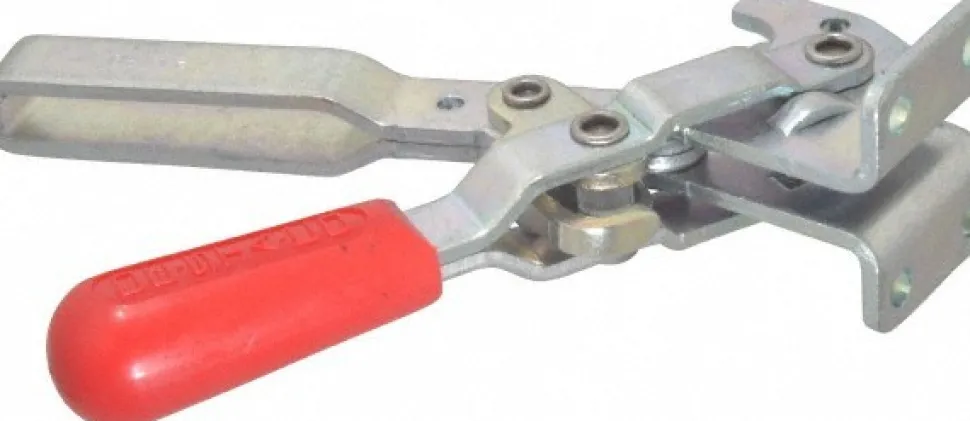

Manual Hold-Down Toggle Clamp: Vertical, 1000.00 lb Capacity, U-Bar, Flanged Base
35,99 $
Specifications
| Handle Orientation: Vertical | Bar Style: U-Bar |
| Base Style: Flanged | Bar End Type: Fixed Spindle |
| Holding Capacity (N): 4450.00 | Holding Capacity (Lb.): 1000.00 |
| Length Distance Between Mount Holes (mm): 32.00 | Length Distance Between Mount Holes: 32 mm; 1.26 in |
| Length Distance Between Mount Holes (Inch): 1.26 | Width Distance Between Mount Holes (mm): 44.96 |
| Width Distance Between Mount Holes: 1.77 in; 44.96 mm | Width Distance Between Mount Holes (Decimal Inch): 1.7700 |
| Height Under Bar (Decimal Inch): 2.0000 | Height Under Bar (mm): 50.80 |
| Overall Length (mm): 174.75 | Overall Length (Decimal Inch): 6.8800 |
| Overall Height (Decimal Inch): 8.8600 | Overall Height (mm): 225.04 |
| Base Length (mm): 50.80 | Base Width (Inch): 2.5200 |
| Base Width (mm): 64.01 | Handle Style: Straight |
| Material: Carbon Steel | Handle Material: Carbon Steel |
| Handle Color: Red | Mounting Hole Diameter (mm): 8.89 |
| Mounting Hole Diameter (Decimal Inch): 0.3500 | Bar Opening (Degrees): 120 |
| Handle Movement (Degrees): 67 | Maximum Mechanical Advantage: 10:01; 05:01 |
| Spindle Thread Size: M12x1.75 | Spindle Travel (Inch): 3.1500 |
| Spindle Travel (mm): 80.01 | Bar Width (mm): 22.10 |
| Bar Width (Decimal Inch): 0.8700 | UNSPSC Code: 31162902 |
| Front Of Base To Toggle Tip: 4.88 in | Includes: (2) Nuts; Spindle; (2) Flanged Washers |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 4.8800 | Front of Base To Tip Of Toggle Bar (mm): 123.95 |
| Number Of Mounting Holes: 4.000 | Finish Coating: Zinc |
| Country of Origin: UNITED STATES | |
| Handle Orientation: Vertical | |
| Bar Style: U-Bar | |
| Base Style: Flanged | |
| Bar End Type: Fixed Spindle | |
| Holding Capacity (N): 4450.00 | |
| Holding Capacity (Lb.): 1000.00 | |
| Length Distance Between Mount Holes (mm): 32.00 | |
| Length Distance Between Mount Holes: 32 mm; 1.26 in | |
| Length Distance Between Mount Holes (Inch): 1.26 | |
| Width Distance Between Mount Holes (mm): 44.96 | |
| Width Distance Between Mount Holes: 1.77 in; 44.96 mm | |
| Width Distance Between Mount Holes (Decimal Inch): 1.7700 | |
| Height Under Bar (Decimal Inch): 2.0000 | |
| Height Under Bar (mm): 50.80 | |
| Overall Length (mm): 174.75 | |
| Overall Length (Decimal Inch): 6.8800 | |
| Overall Height (Decimal Inch): 8.8600 | |
| Overall Height (mm): 225.04 | |
| Base Length (mm): 50.80 | |
| Base Width (Inch): 2.5200 | |
| Base Width (mm): 64.01 | |
| Handle Style: Straight | |
| Material: Carbon Steel | |
| Handle Material: Carbon Steel | |
| Handle Color: Red | |
| Mounting Hole Diameter (mm): 8.89 | |
| Mounting Hole Diameter (Decimal Inch): 0.3500 | |
| Bar Opening (Degrees): 120 | |
| Handle Movement (Degrees): 67 | |
| Maximum Mechanical Advantage: 10:01; 05:01 | |
| Spindle Thread Size: M12x1.75 | |
| Spindle Travel (Inch): 3.1500 | |
| Spindle Travel (mm): 80.01 | |
| Bar Width (mm): 22.10 | |
| Bar Width (Decimal Inch): 0.8700 | |
| UNSPSC Code: 31162902 | |
| Front Of Base To Toggle Tip: 4.88 in | |
| Includes: (2) Nuts; Spindle; (2) Flanged Washers | |
| Front of Base To Tip Of Toggle Bar (Decimal Inch): 4.8800 | |
| Front of Base To Tip Of Toggle Bar (mm): 123.95 | |
| Number Of Mounting Holes: 4.000 | |
| Finish Coating: Zinc | |
| Country of Origin: UNITED STATES |
| MSC# | 76988955 |
| Mfr# | 247-U |
| Big Book# | 1311 |
