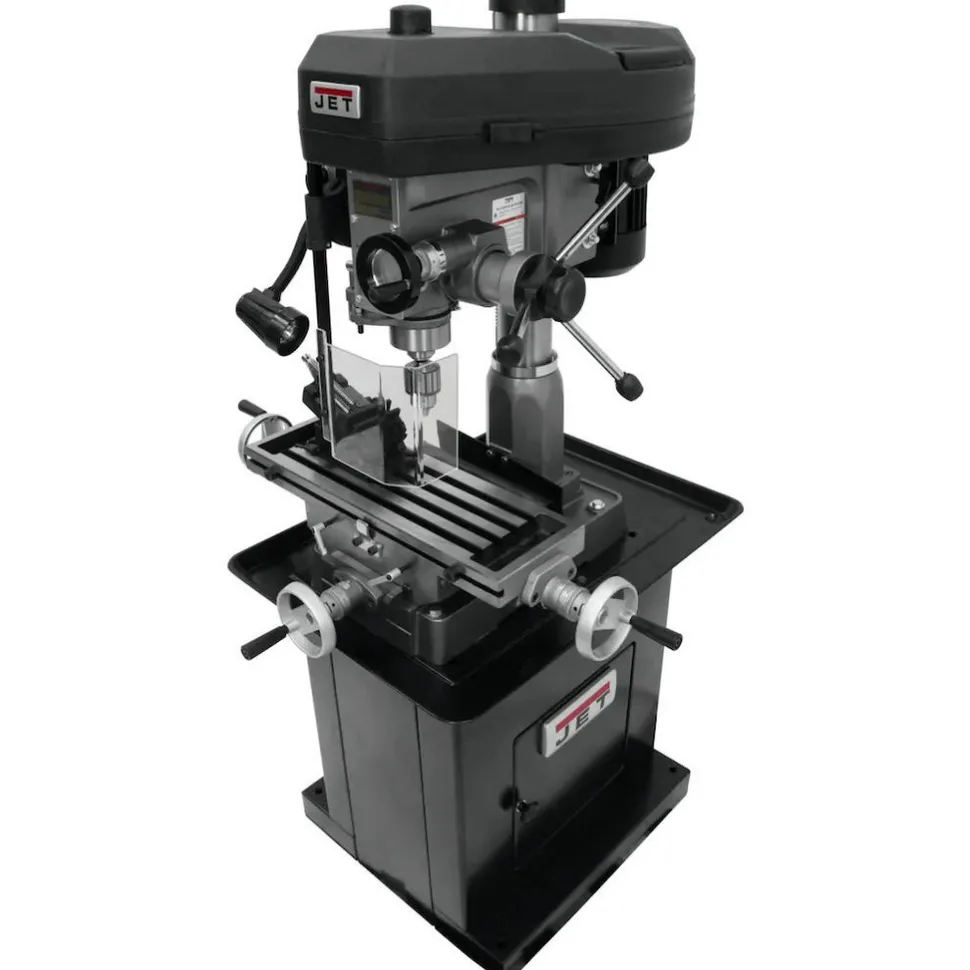

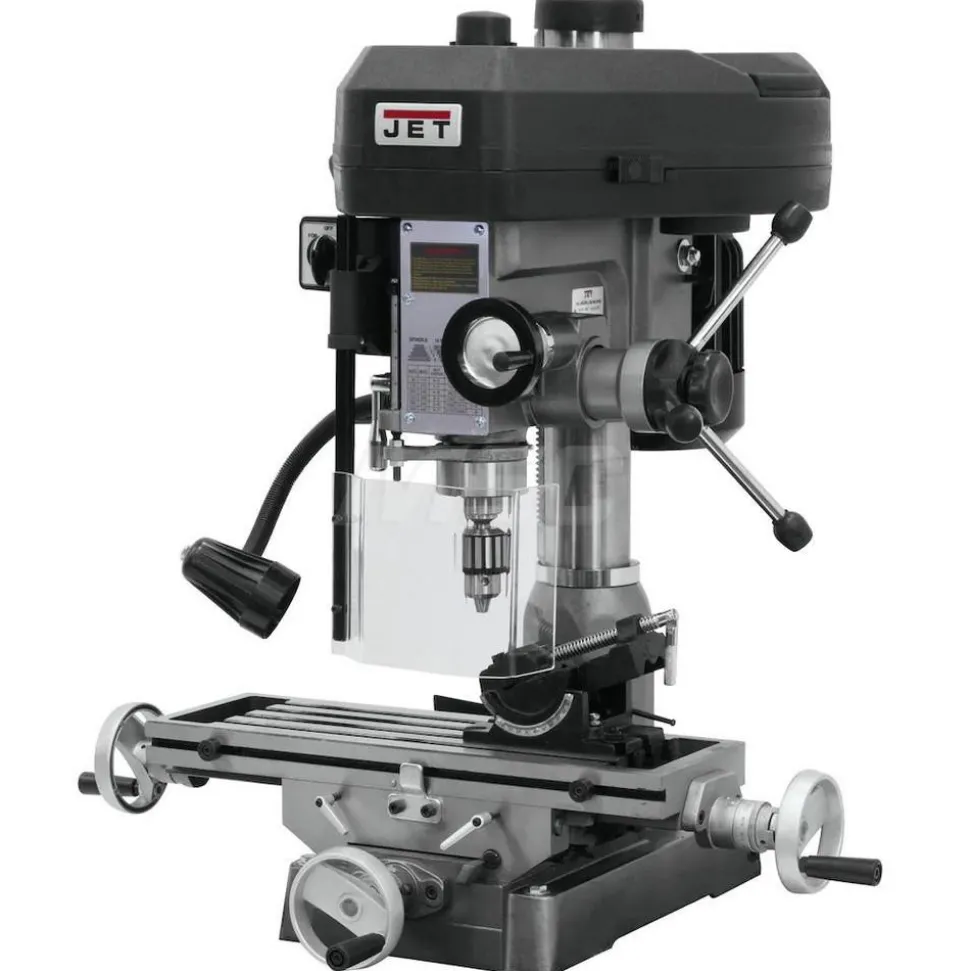

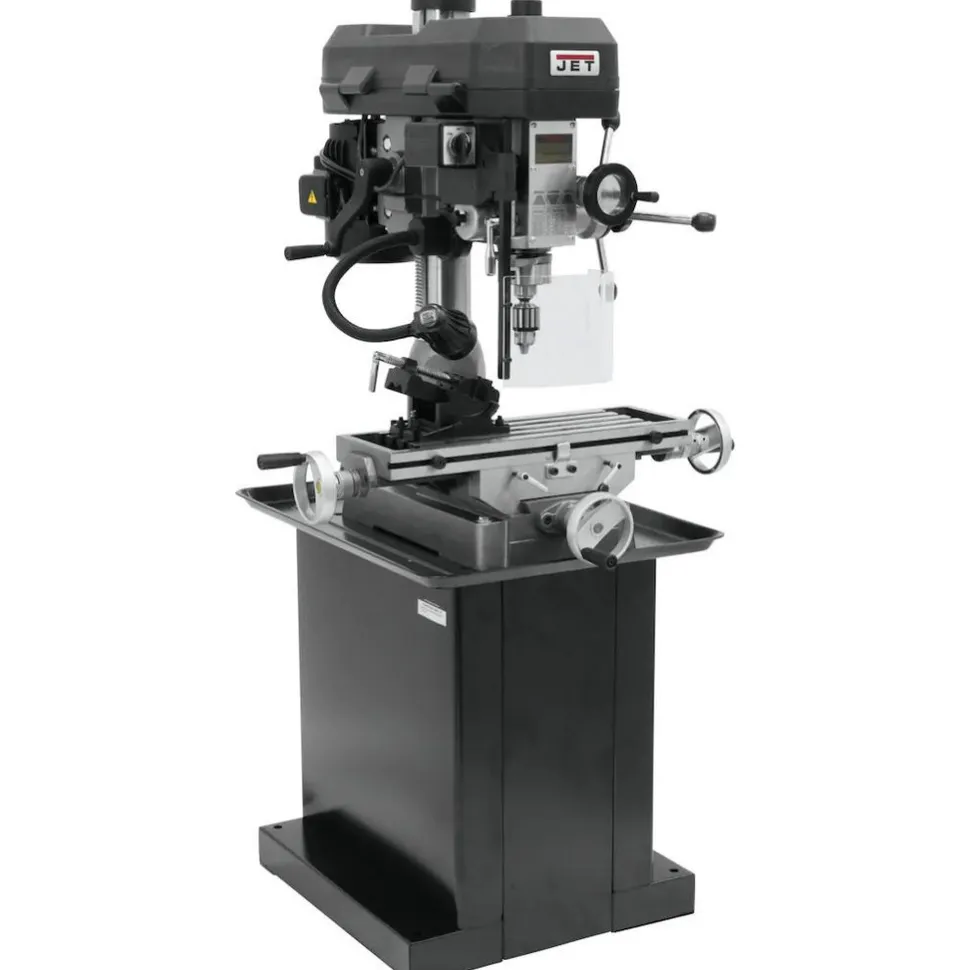

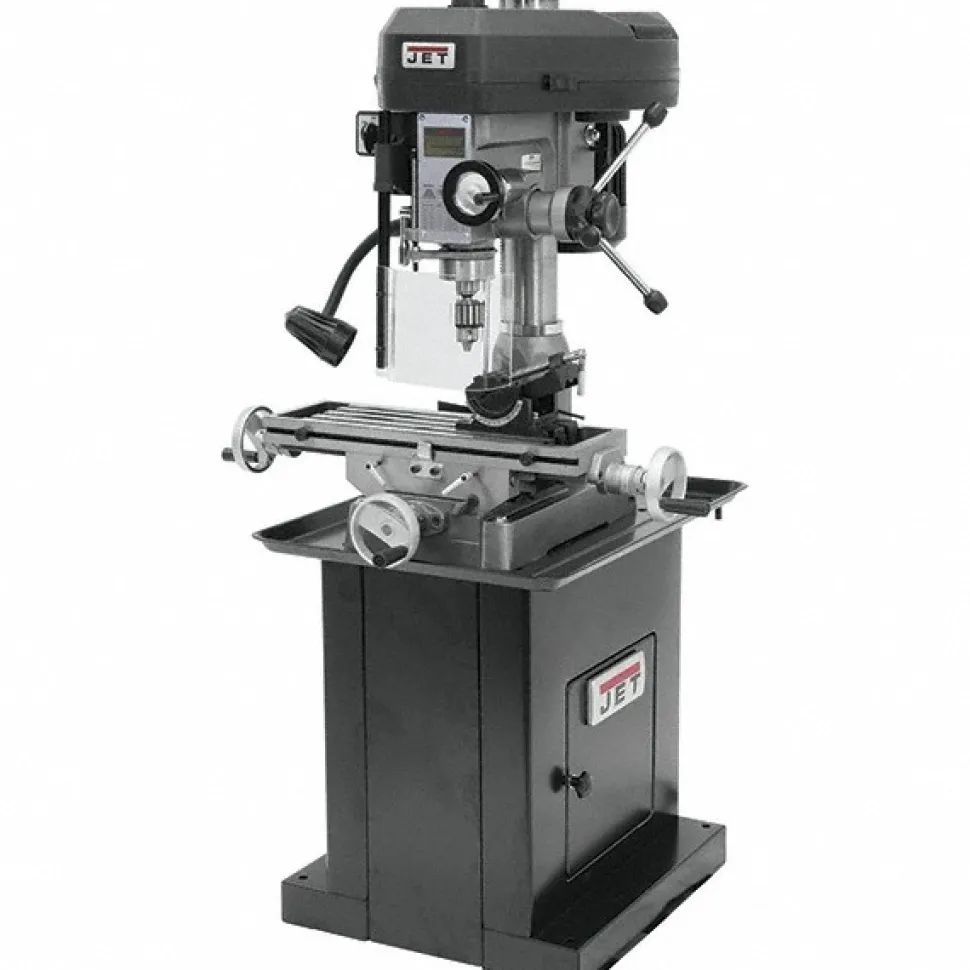

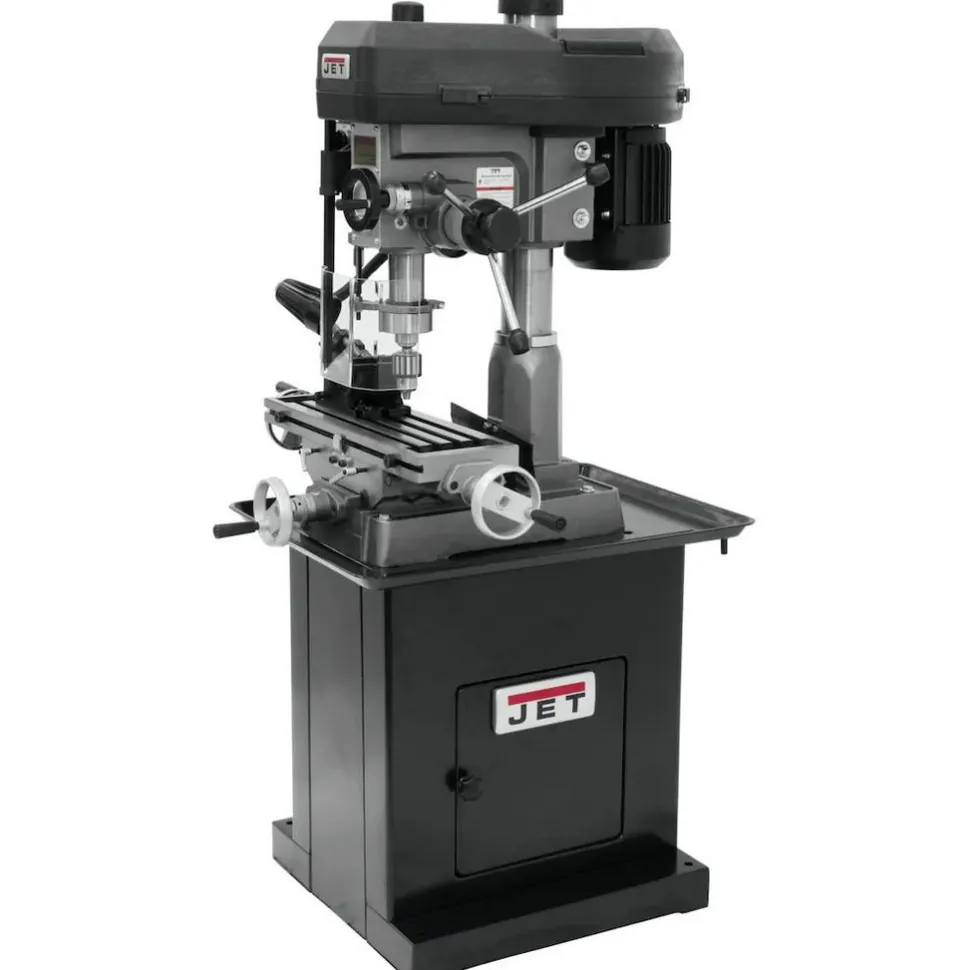

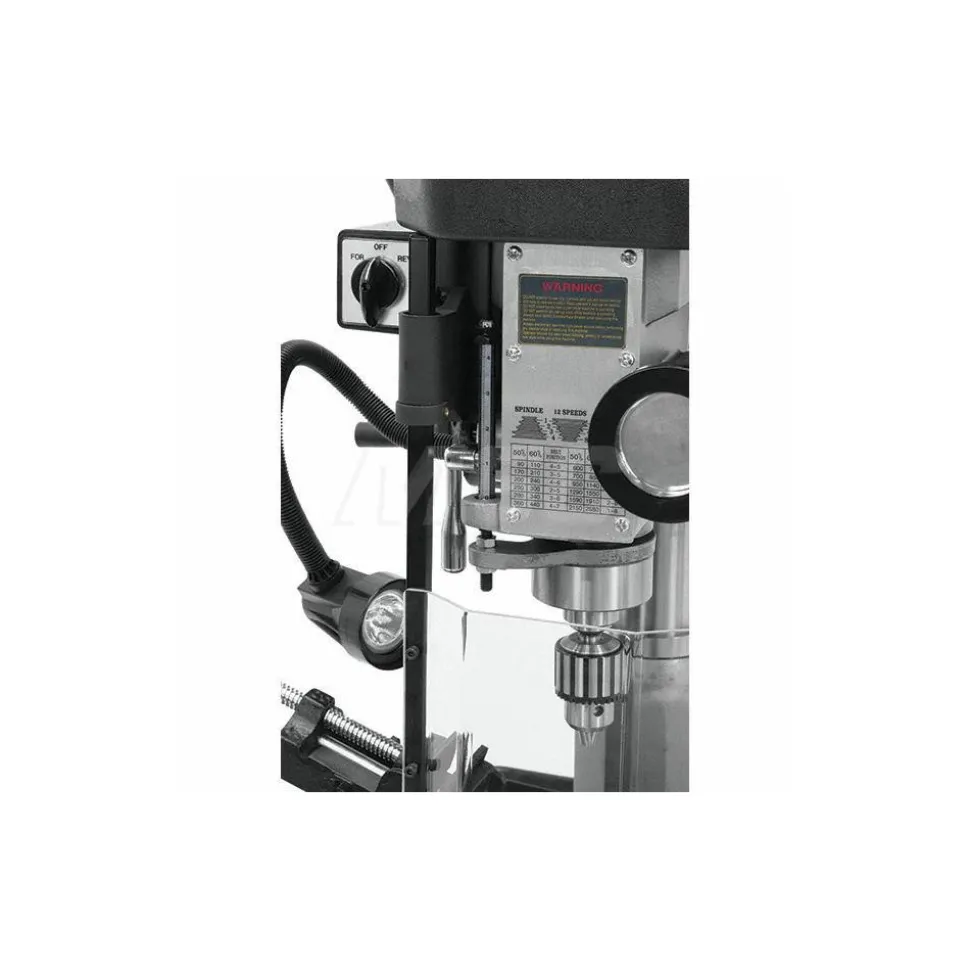

Mill Drill Machine: 14″ x 5-1/2″ Travel
122,99 $
Specifications
| Drilling Capacity in Steel (Decimal Inch): 1.0000 | Drilling Capacity in Steel (Inch): 1 |
| Cross Travel (Inch): 5-1/2 | Longitudinal Travel (Inch): 14 |
| Head Swivel (Degrees): 360.00 | Maximum Spindle to Table Distance (Decimal Inch): 15.0000 |
| Maximum Spindle to Table Distance (Inch): 15 | Minimum Spindle Speed: 110 |
| Maximum Spindle Speed (RPM): 2580 | Number Of Spindle Speeds: 12 |
| Number of Spindle Speeds: 12 | Number of T-Slots: 4.000 |
| Horsepower: 1 | Swing Distance (Inch): 14-1/2 |
| Table Length (Inch): 23 | Table Width (Inch): 7-1/2 |
| Phase: Single | Quill Diameter (Inch): 2-7/16 |

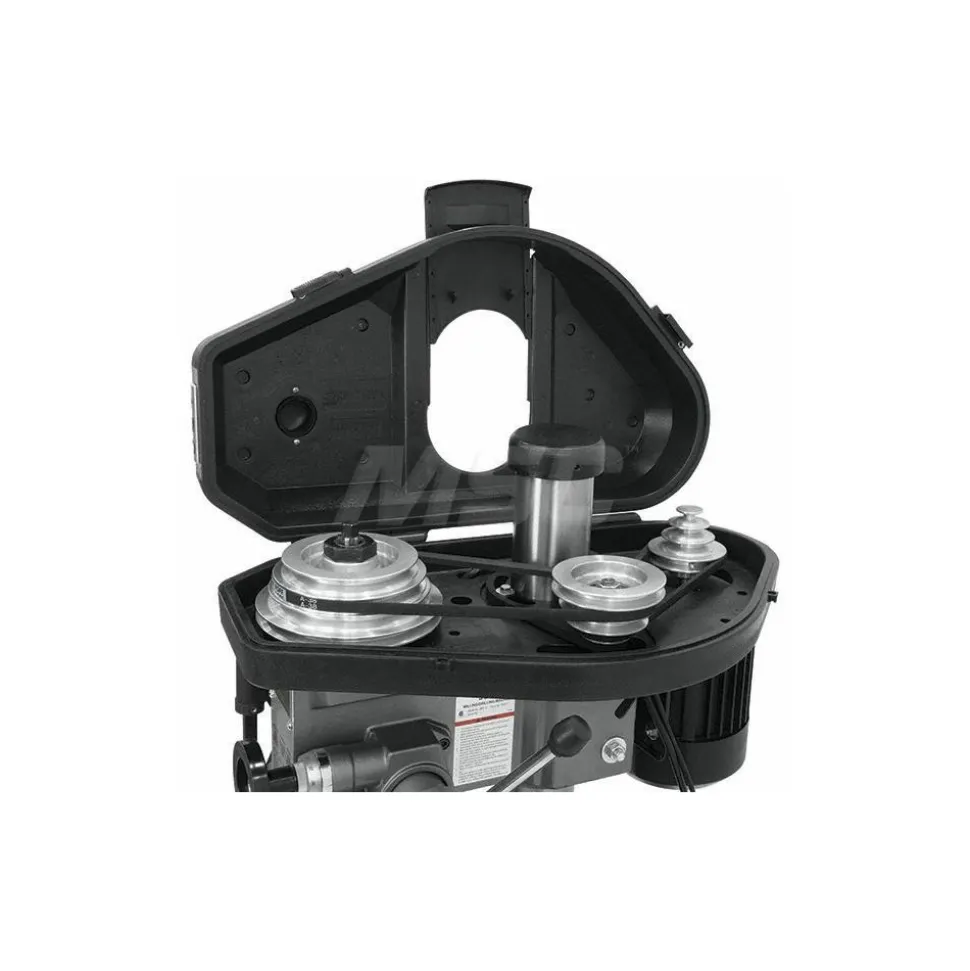

| Spindle Speed Control: Step Pulley | Spindle Taper Size: R8 |
| Spindle Travel Length (Inch): 3-1/2 | T-Slot Size (Inch): 9/16 |
| Voltage: 230V; 115V | Overall Height (Inch): 42 |
| Overall Length (Inch): 38 | Overall Depth (Inch): 37-1/2 |
| Features: Adjustable Carbide Face Mill; 360 degrees Head Swivel | Maximum Spindle To Column Distance (Inch): 7-1/4 |
| UNSPSC Code: 23241500 | Country of Origin: Taiwan |
| Drilling Capacity in Steel (Decimal Inch): 1.0000 | |
| Drilling Capacity in Steel (Inch): 1 | |
| Cross Travel (Inch): 5-1/2 | |
| Longitudinal Travel (Inch): 14 | |
| Head Swivel (Degrees): 360.00 | |
| Maximum Spindle to Table Distance (Decimal Inch): 15.0000 | |
| Maximum Spindle to Table Distance (Inch): 15 | |
| Minimum Spindle Speed: 110 | |
| Maximum Spindle Speed (RPM): 2580 | |
| Number Of Spindle Speeds: 12 | |
| Number of Spindle Speeds: 12 | |
| Number of T-Slots: 4.000 | |
| Horsepower: 1 | |
| Swing Distance (Inch): 14-1/2 | |
| Table Length (Inch): 23 | |
| Table Width (Inch): 7-1/2 | |
| Phase: Single | |
| Quill Diameter (Inch): 2-7/16 | |
| Spindle Speed Control: Step Pulley | |
| Spindle Taper Size: R8 | |
| Spindle Travel Length (Inch): 3-1/2 | |
| T-Slot Size (Inch): 9/16 | |
| Voltage: 230V; 115V | |
| Overall Height (Inch): 42 | |
| Overall Length (Inch): 38 | |
| Overall Depth (Inch): 37-1/2 | |
| Features: Adjustable Carbide Face Mill; 360 degrees Head Swivel | |
| Maximum Spindle To Column Distance (Inch): 7-1/4 | |
| UNSPSC Code: 23241500 | |
| Country of Origin: Taiwan |
| MSC# | 80181555 |
| Mfr# | 350017 |
| Big Book# | 1543 |
