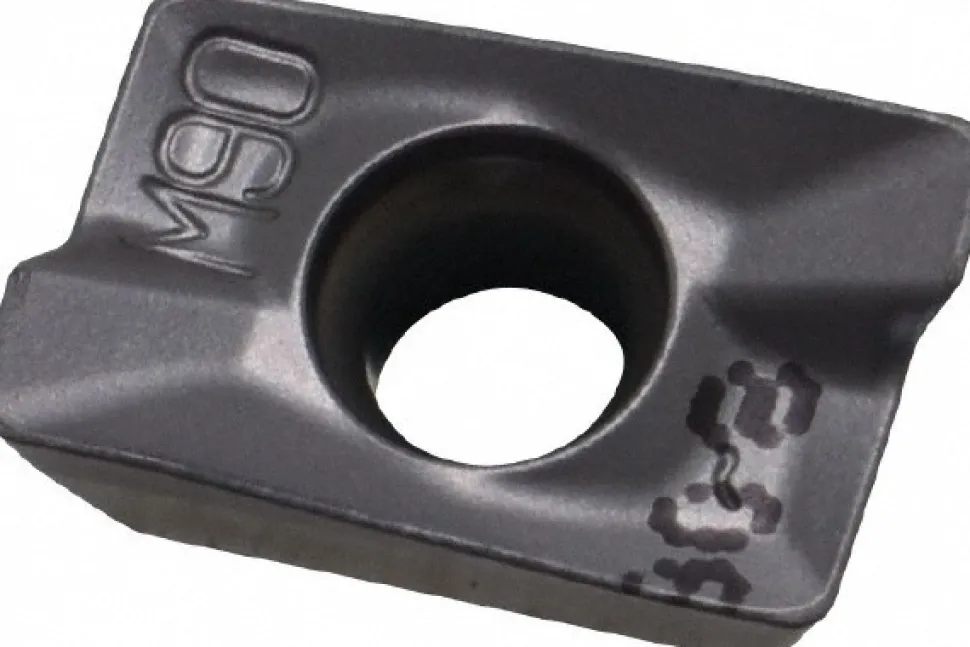

Milling Inserts: Insert Style: ADKT; Insert Size: 15; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 28,00 $.20,99 $Current price is: 20,99 $.
Specifications
| Insert Style: ADKT | Insert Size: 15 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: IC908 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.2300 | Coating/Finish: TiAlN |
| Relief Angle: 15.000 | Insert Size Code: 1505 |
| Material Grade: Submicron | Inscribed Circle (Decimal Inch): 0.3800 |
| Thickness Range (Decimal Inch): 0.2200 to 0.2350 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | Length Range (Decimal Inch): 0.6000 to 0.6500 |
| Insert Hand: Right Hand | Maximum Depth of Cut (mm): 12.00 |
| Maximum Depth of Cut (Decimal Inch): 0.4720 | Series: HELI2000 |
| Coating Process: PVD | Cutting Edge Effective Length (Decimal Inch): 0.5710 |
| Rake: Positive | Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; H; K; M | Secondary Workpiece Material Code: S; H |

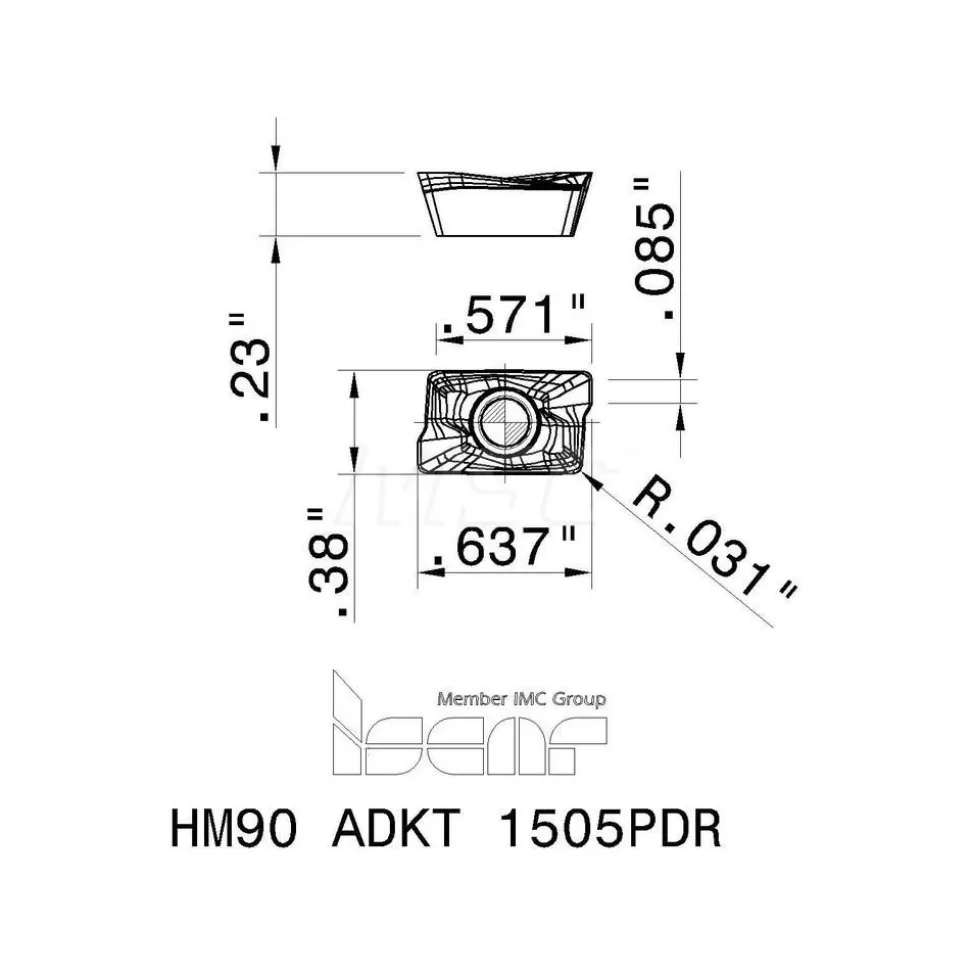

| Ansi Code: HM90 ADKT 1505PDR IC908 | Iso Code: HM90 ADKT 1505PDR |
| Standards: ISO 13399; ANSI | Cutting Edge Style: Honed |
| Manufacturers Catalog Number: HM90 ADKT 1505PDR IC908 | Cutter Series Compatibility: HM90-15 |
| Chip Breaker: PDR | UNSPSC Code: 23291601 |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 85 | Width (Decimal Inch – 4 Decimals): 0.3800 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.6370 |
| Country of Origin: Israel | |
| Insert Style: ADKT | |
| Insert Size: 15 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: IC908 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2300 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 1505 | |
| Material Grade: Submicron | |
| Inscribed Circle (Decimal Inch): 0.3800 | |
| Thickness Range (Decimal Inch): 0.2200 to 0.2350 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | |
| Length Range (Decimal Inch): 0.6000 to 0.6500 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 12.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.4720 | |
| Series: HELI2000 | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.5710 | |
| Rake: Positive | |
| Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Secondary Workpiece Material Code: S; H | |
| Ansi Code: HM90 ADKT 1505PDR IC908 | |
| Iso Code: HM90 ADKT 1505PDR | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: HM90 ADKT 1505PDR IC908 | |
| Cutter Series Compatibility: HM90-15 | |
| Chip Breaker: PDR | |
| UNSPSC Code: 23291601 | |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 85 | |
| Width (Decimal Inch – 4 Decimals): 0.3800 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6370 | |
| Country of Origin: Israel |
| MSC# | 82422247 |
| Mfr# | 5602499 |
| Big Book# | 682 |
