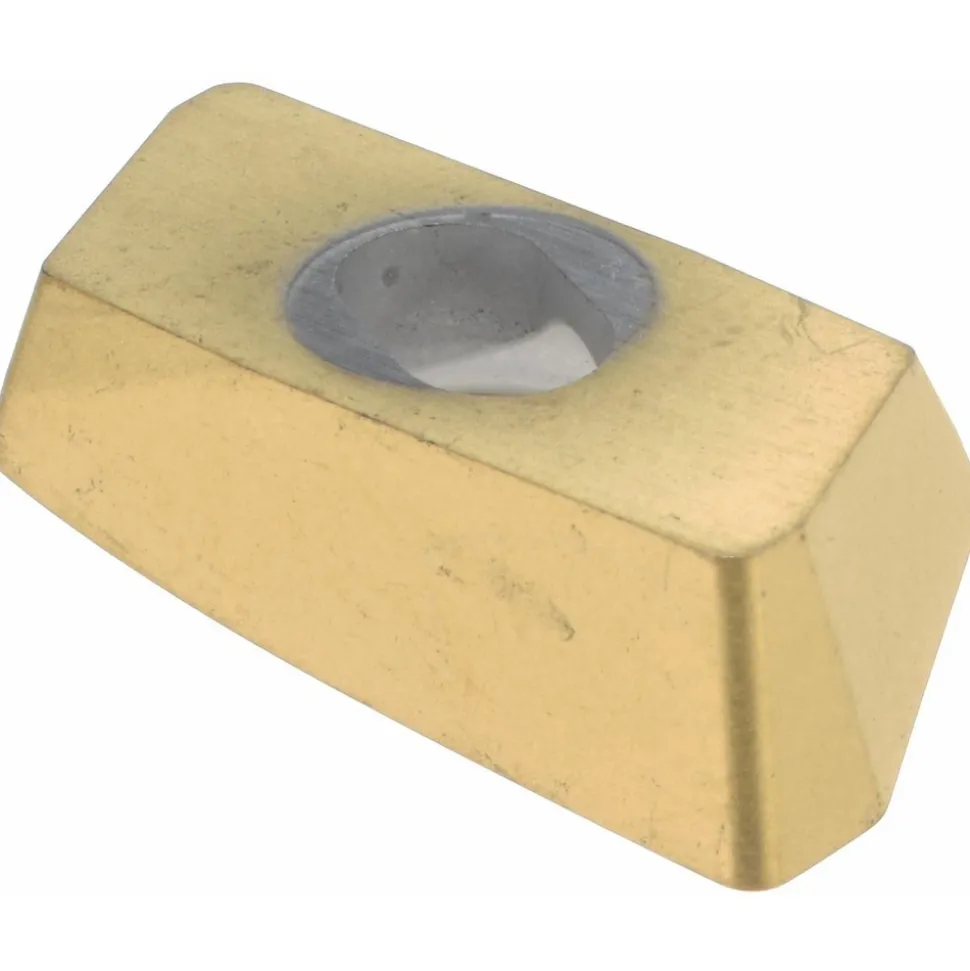

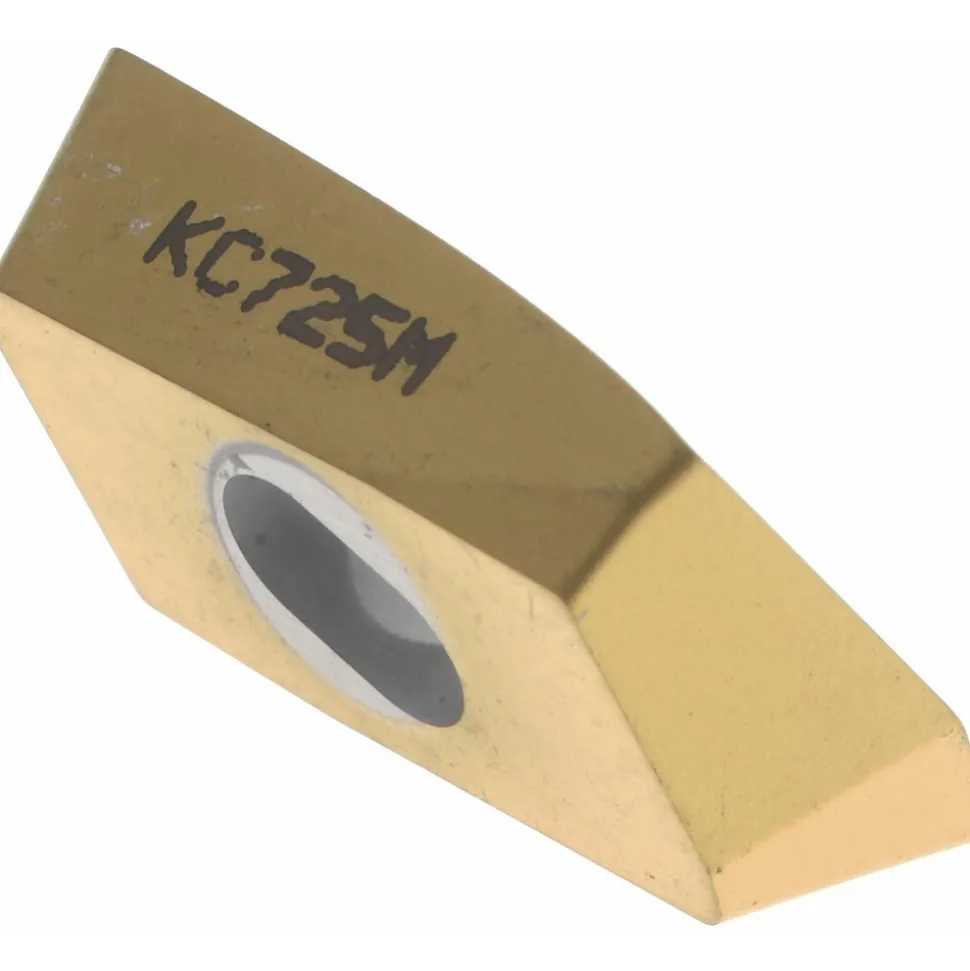

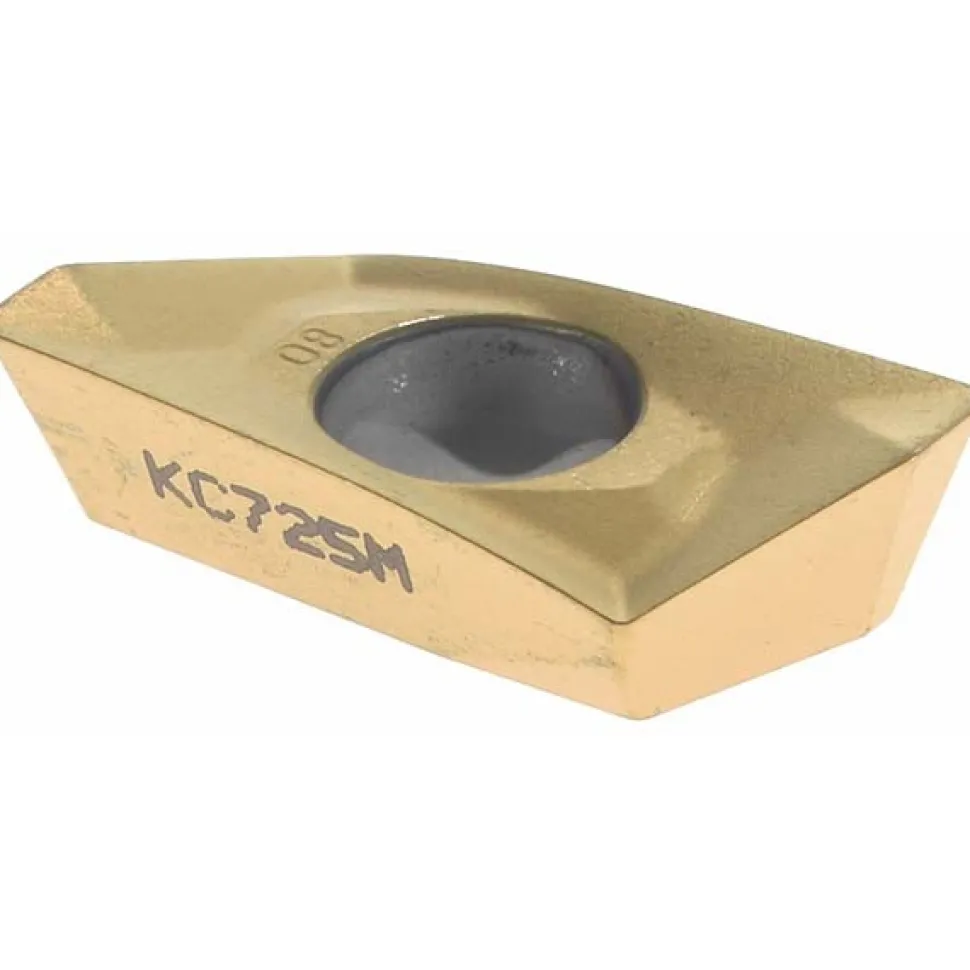

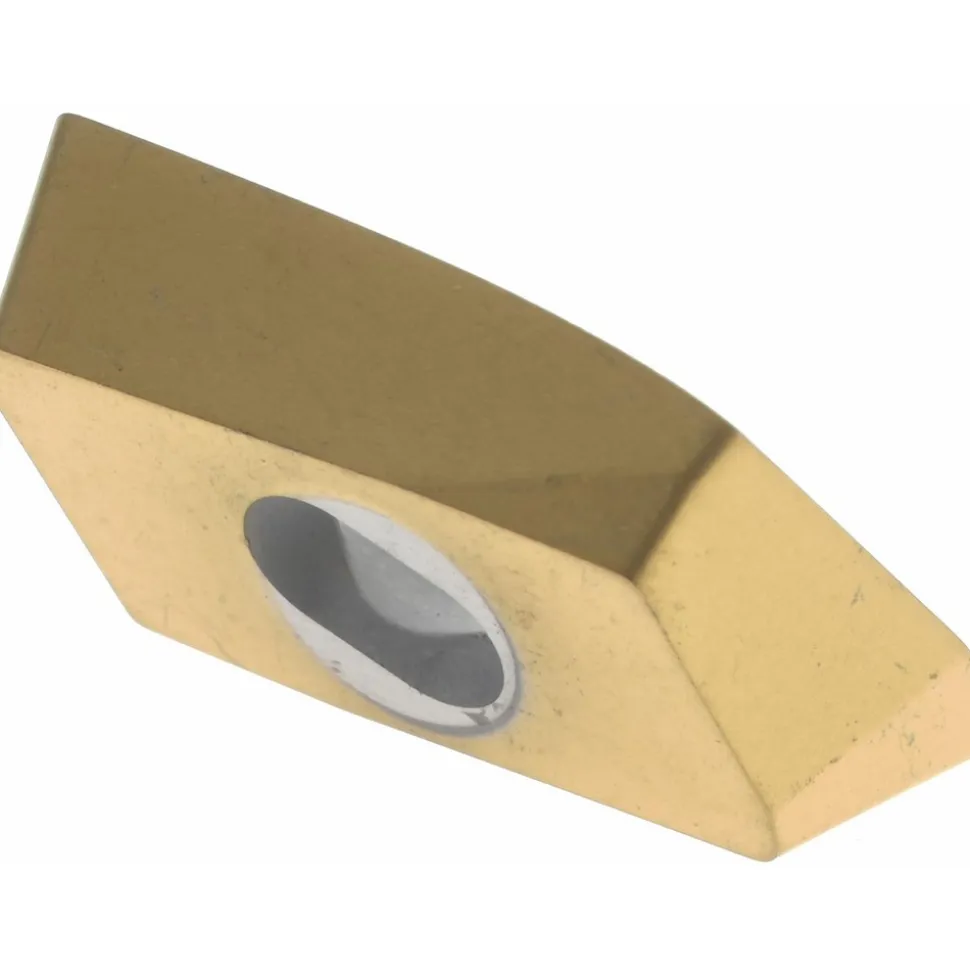

Milling Inserts: Insert Style: EDPT; Insert Size: 18; Insert Material: Solid Carbide; Insert Shape: Parallelogram
21,89 $
Specifications
| Insert Style: EDPT | Insert Size: 18 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: KC725M | Corner Radius (Decimal Inch): 0.0310 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.2170 | Coating/Finish: TiAlN |
| Relief Angle: 15.000 | Insert Size Code: 1808 |
| Material Grade: C5; C6; C7 | Inscribed Circle (Decimal Inch): 0.4320 |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | Length Range (Decimal Inch): 0.7000 to 0.9000 |
| Insert Hand: Right Hand | Series: EDPT |
| Coating Process: PVD | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Ansi Code: EP1808E | Iso Code: EDPT180508PDERGD |
| Standards: ISO; ANSI | Cutting Edge Style: Honed |
| Manufacturers Catalog Number: EDPT180508PDERGD | Cutter Series Compatibility: Mill 1-18 |
| Chip Breaker: GD | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 70 | Width (Decimal Inch – 4 Decimals): 0.4320 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.8570 |
| Country of Origin: UNITED STATES | |
| Insert Style: EDPT | |
| Insert Size: 18 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: KC725M | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2170 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 1808 | |
| Material Grade: C5; C6; C7 | |
| Inscribed Circle (Decimal Inch): 0.4320 | |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | |
| Length Range (Decimal Inch): 0.7000 to 0.9000 | |
| Insert Hand: Right Hand | |
| Series: EDPT | |
| Coating Process: PVD | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: EP1808E | |
| Iso Code: EDPT180508PDERGD | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: EDPT180508PDERGD | |
| Cutter Series Compatibility: Mill 1-18 | |
| Chip Breaker: GD | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 70 | |
| Width (Decimal Inch – 4 Decimals): 0.4320 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.8570 | |
| Country of Origin: UNITED STATES |
| MSC# | 01654680 |
| Mfr# | 2271119 |
| Big Book# | 704 |
