Sale!

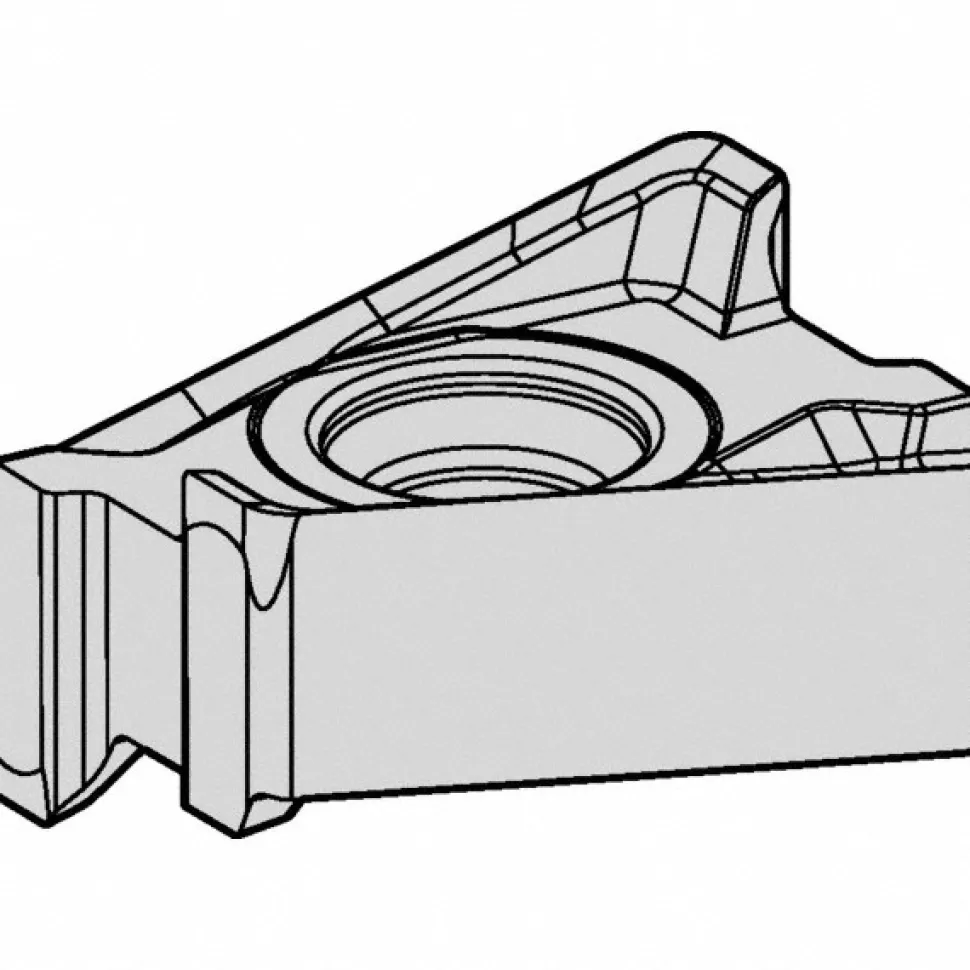

Milling Inserts: Insert Style: LNPU; Insert Size: 5; Insert Material: Solid Carbide; Insert Shape: Rectangle
Original price was: 36,00 $.26,89 $Current price is: 26,89 $.
Specifications
| Insert Style: LNPU | Insert Size: 5 |
| Insert Material: Solid Carbide | Insert Shape: Rectangle |
| Manufacturer Grade: KCPM40 | Corner Radius (Decimal Inch): 0.0310 |
| Number Of Cutting Edges: 4 | Thickness (Decimal Inch – 4 Decimals): 0.2740 |
| Coating/Finish: AlCrN; TiAlN | Relief Angle: 0.000 |
| Insert Size Code: 54 | Inscribed Circle (Decimal Inch): 0.3940 |
| Thickness Range (Decimal Inch): 0.2500 to 0.3500 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | Length Range (Decimal Inch): 0.6500 to 0.7000 |
| Insert Hand: Right Hand | Series: LNPU |
| Coating Process: PVD | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Ansi Code: LNPU542SRGE | Iso Code: LNPU15T608SRGE |
| Standards: ISO; ANSI | Cutting Edge Style: Honed; Chamfered |
| Manufacturers Catalog Number: LNPU15T608SRGE | Cutter Series Compatibility: Mill 4-15 |
| Chip Breaker: GE | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.3940 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.6650 |
| Country of Origin: Germany | |
| Insert Style: LNPU | |
| Insert Size: 5 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Rectangle | |
| Manufacturer Grade: KCPM40 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2740 | |
| Coating/Finish: AlCrN; TiAlN | |
| Relief Angle: 0.000 | |
| Insert Size Code: 54 | |
| Inscribed Circle (Decimal Inch): 0.3940 | |
| Thickness Range (Decimal Inch): 0.2500 to 0.3500 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | |
| Insert Hand: Right Hand | |
| Series: LNPU | |
| Coating Process: PVD | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: LNPU542SRGE | |
| Iso Code: LNPU15T608SRGE | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed; Chamfered | |
| Manufacturers Catalog Number: LNPU15T608SRGE | |
| Cutter Series Compatibility: Mill 4-15 | |
| Chip Breaker: GE | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.3940 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6650 | |
| Country of Origin: Germany |
| MSC# | 37189578 |
| Mfr# | 5684657 |
