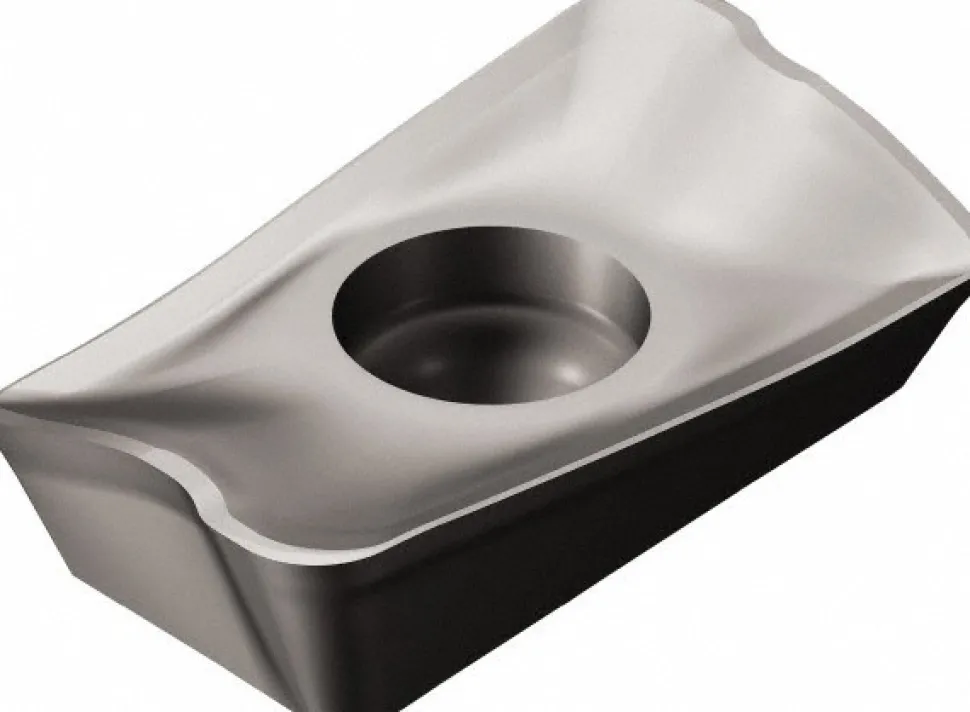

Milling Inserts: Insert Style: R390; Insert Size: 11; Insert Material: Solid Carbide; Insert Shape: Parallelogram
21,99 $
Specifications
| Insert Style: R390 | Insert Size: 11 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: 1130 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1413 | Thickness (mm): 3.59 |
| Coating/Finish: AlTiCrN | Insert Size Code: 11T308 |
| Material Grade: M15; N15; P30 | Inscribed Circle (Decimal Inch): 0.2677 |
| Inscribed Circle (mm): 6.80 | Thickness Range (Decimal Inch): 0.1250 to 0.1500 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (mm): 10.00 | Maximum Depth of Cut (Decimal Inch): 0.3937 |
| Series: R390 | Coating Process: PVD |
| Hole Diameter (mm): 0.11 | Hole Diameter (Decimal Inch): 0.1102 |
| Rake: Positive | Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; H; M; N | Ansi Code: R390-11 T3 08M-PM 1130 |
| Iso Code: R390-11 T3 08M-PM 1130 | Standards: ISO; ANSI |
| Rake Angle: 20.000 | Cutting Edge Style: Corner Rounded |
| Manufacturers Catalog Number: R390-11 T3 08M-PM 1130 | Cutter Series Compatibility: M-32; R390 |
| Chip Breaker: PM | UNSPSC Code: 23291601 |
| Material Application: Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |

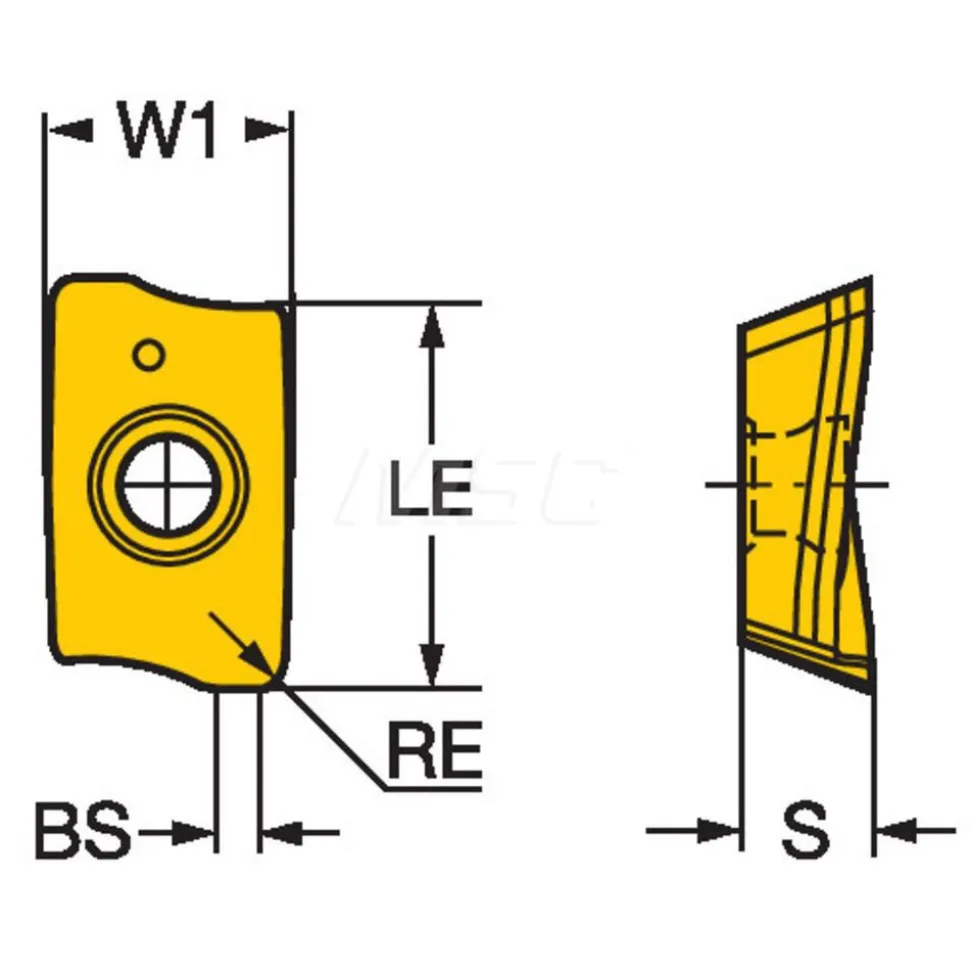

| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.2677 |
| Width (mm – 2 Decimals): 6.80 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.3937 | Country of Origin: VARIOUS |
| Insert Style: R390 | |
| Insert Size: 11 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: 1130 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1413 | |
| Thickness (mm): 3.59 | |
| Coating/Finish: AlTiCrN | |
| Insert Size Code: 11T308 | |
| Material Grade: M15; N15; P30 | |
| Inscribed Circle (Decimal Inch): 0.2677 | |
| Inscribed Circle (mm): 6.80 | |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.2500 to 0.3000 | |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 10.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.3937 | |
| Series: R390 | |
| Coating Process: PVD | |
| Hole Diameter (mm): 0.11 | |
| Hole Diameter (Decimal Inch): 0.1102 | |
| Rake: Positive | |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; M; N | |
| Ansi Code: R390-11 T3 08M-PM 1130 | |
| Iso Code: R390-11 T3 08M-PM 1130 | |
| Standards: ISO; ANSI | |
| Rake Angle: 20.000 | |
| Cutting Edge Style: Corner Rounded | |
| Manufacturers Catalog Number: R390-11 T3 08M-PM 1130 | |
| Cutter Series Compatibility: M-32; R390 | |
| Chip Breaker: PM | |
| UNSPSC Code: 23291601 | |
| Material Application: Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.2677 | |
| Width (mm – 2 Decimals): 6.80 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.3937 | |
| Country of Origin: VARIOUS |
| MSC# | 54733282 |
| Mfr# | 6906943 |
