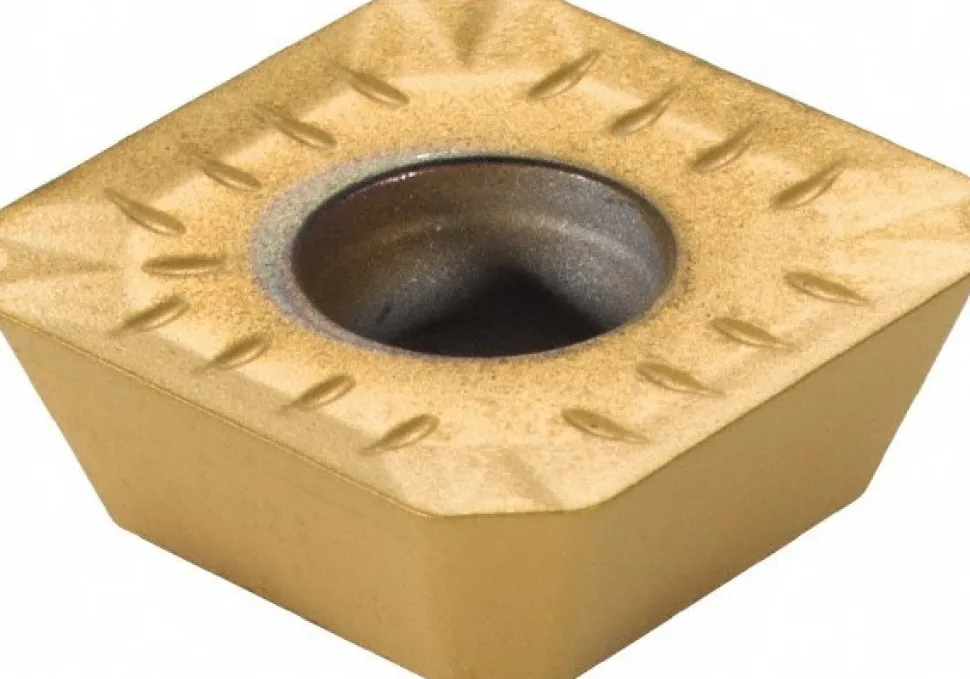

Milling Inserts: Insert Style: SEKT; Insert Size: 4; Insert Material: Solid Carbide; Insert Shape: Square
26,99 $
Specifications
| Insert Style: SEKT | Insert Size: 4 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: KC725M | Corner Radius (Decimal Inch): 0.0394 |
| Corner Radius (mm): 1.00 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | Coating/Finish: TiAlN |
| Relief Angle: 20.000 | Insert Size Code: 443 |
| Material Grade: C5; C6; C7 | Thickness (Inch): 3/16 |
| Inscribed Circle (Decimal Inch): 0.5512 | Inscribed Circle (mm): 14.00 |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | Inscribed Circle Range (Decimal Inch): 0.5100 to 0.6000 |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | Insert Hand: Neutral |
| Maximum Depth of Cut (Decimal Inch): 0.5512 | Series: SEKT |
| Coating Process: PVD | Hole Diameter (mm): 0.17 |
| Hole Diameter (Decimal Inch): 0.1732 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Ansi Code: SEKT443AEEN7GP2 | Iso Code: SEKT1404AEENGP2 |
| Standards: ISO; ANSI | Cutting Edge Style: Honed |
| Manufacturers Catalog Number: SEKT1404AEENGP2 | Cutter Series Compatibility: KSSM |
| Chip Breaker: GP2 | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.5512 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.5512 |
| Country of Origin: UNITED STATES | |
| Insert Style: SEKT | |
| Insert Size: 4 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: KC725M | |
| Corner Radius (Decimal Inch): 0.0394 | |
| Corner Radius (mm): 1.00 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 20.000 | |
| Insert Size Code: 443 | |
| Material Grade: C5; C6; C7 | |
| Thickness (Inch): 3/16 | |
| Inscribed Circle (Decimal Inch): 0.5512 | |
| Inscribed Circle (mm): 14.00 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Inscribed Circle Range (Decimal Inch): 0.5100 to 0.6000 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.5512 | |
| Series: SEKT | |
| Coating Process: PVD | |
| Hole Diameter (mm): 0.17 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: SEKT443AEEN7GP2 | |
| Iso Code: SEKT1404AEENGP2 | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: SEKT1404AEENGP2 | |
| Cutter Series Compatibility: KSSM | |
| Chip Breaker: GP2 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.5512 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5512 | |
| Country of Origin: UNITED STATES |
| MSC# | 01654813 |
| Mfr# | 2390257 |
| Big Book# | 707 |
