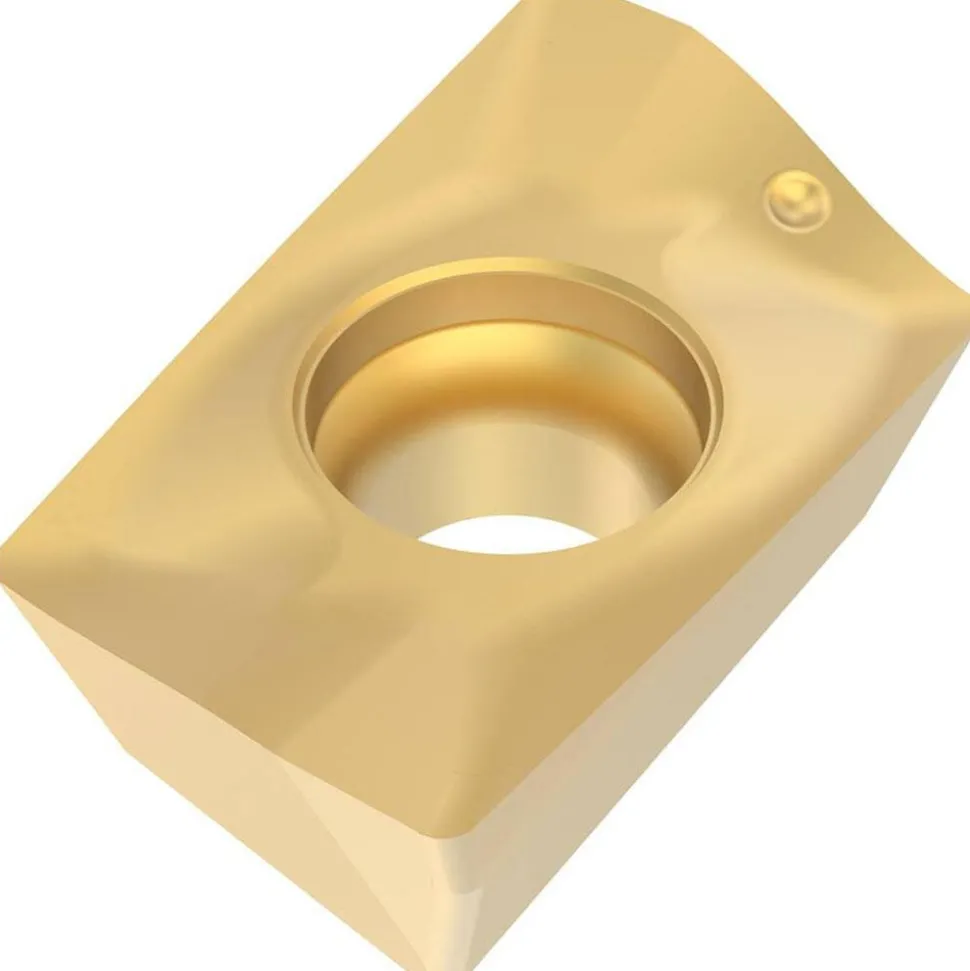

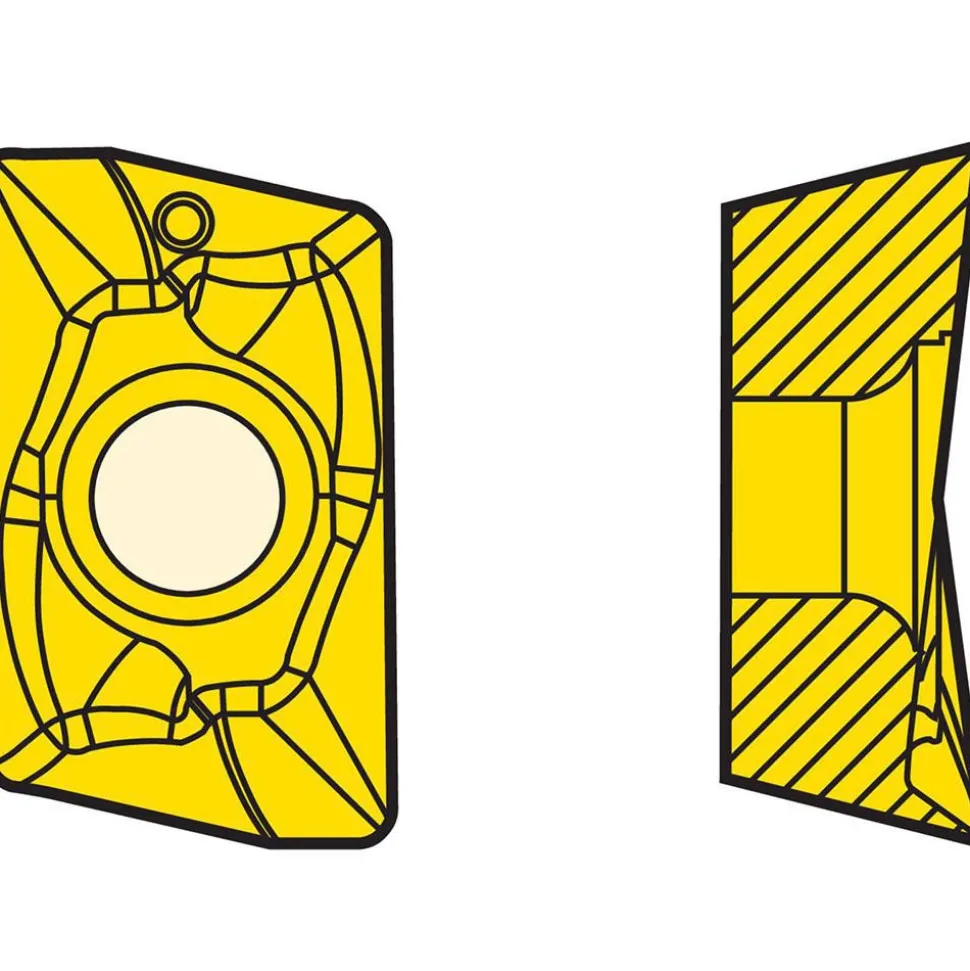

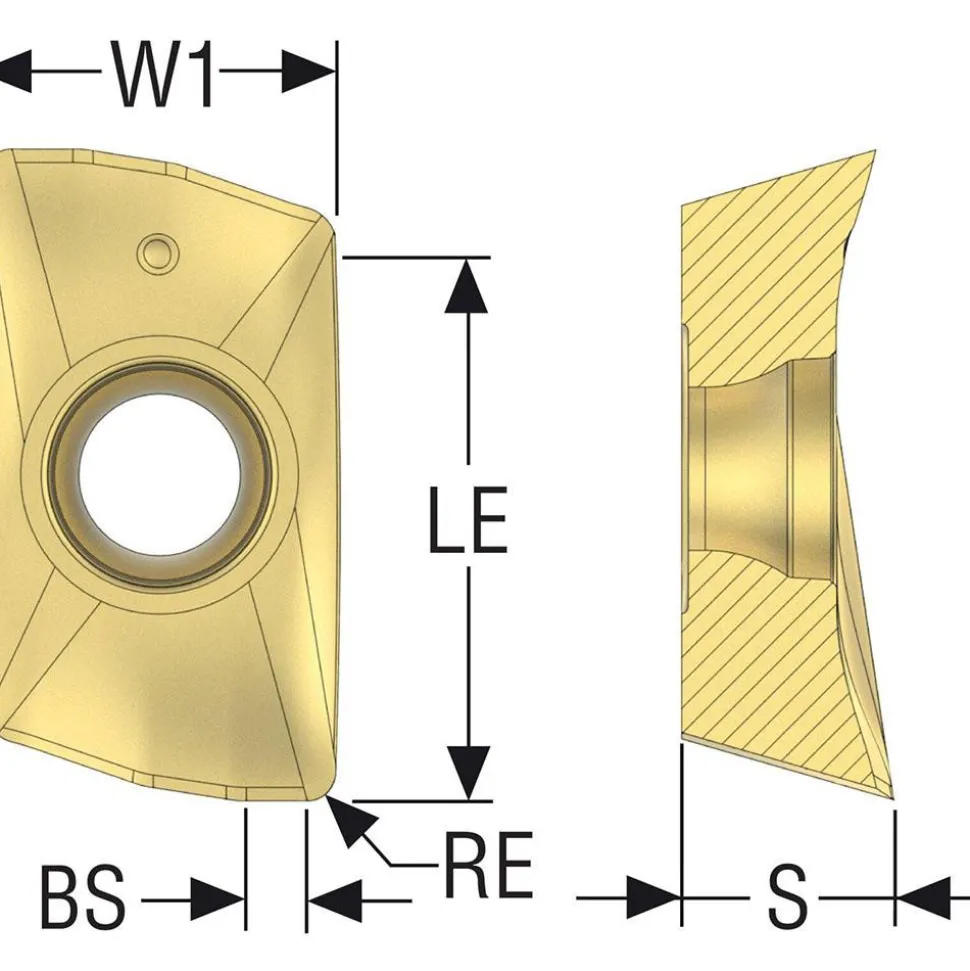

Milling Inserts: Insert Style: XOEX; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Parallelogram
28,89 $
Specifications
| Insert Style: XOEX | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: F40M | Corner Radius (Decimal Inch): 0.0315 |
| Number Of Cutting Edges: 2 | Thickness (Decimal Inch – 4 Decimals): 0.1980 |
| Coating/Finish: TiN; TiAlN | Relief Angle: 15.000 |
| Insert Size Code: 120408 | Material Grade: Fine Grain |
| Inscribed Circle (Decimal Inch): 0.3228 | Thickness Range (Decimal Inch): 0.1850 to 0.2000 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.4724 | Series: XOEX-12 |
| Coating Process: PVD | Hole Diameter (Decimal Inch): 0.1535 |
| Cutting Edge Effective Length (Decimal Inch): 0.4724 | Rake: Positive |
| Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; K |
| Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron | Secondary Workpiece Material Code: K; N |
| Ansi Code: XOEX120408R-M07 | Iso Code: XOEX120408R-M07 |
| Standards: ISO | Rake Angle: 20.300 |
| Cutting Edge Style: Honed | Manufacturers Catalog Number: XOEX120408R-M07 |
| Cutter Series Compatibility: R217.69-12; R220.69-12 | Chip Breaker: M07 |
| UNSPSC Code: 23291601 | Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Shape: Parallelogram | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.3228 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4724 |
| Country of Origin: Sweden | |
| Insert Style: XOEX | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: F40M | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1980 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 120408 | |
| Material Grade: Fine Grain | |
| Inscribed Circle (Decimal Inch): 0.3228 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3000 to 0.3500 | |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.4724 | |
| Series: XOEX-12 | |
| Coating Process: PVD | |
| Hole Diameter (Decimal Inch): 0.1535 | |
| Cutting Edge Effective Length (Decimal Inch): 0.4724 | |
| Rake: Positive | |
| Primary Workpiece Material: Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K | |
| Secondary Workpiece Material: Non-Ferrous Metal; Cast Iron | |
| Secondary Workpiece Material Code: K; N | |
| Ansi Code: XOEX120408R-M07 | |
| Iso Code: XOEX120408R-M07 | |
| Standards: ISO | |
| Rake Angle: 20.300 | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: XOEX120408R-M07 | |
| Cutter Series Compatibility: R217.69-12; R220.69-12 | |
| Chip Breaker: M07 | |
| UNSPSC Code: 23291601 | |
| Material Application: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Parallelogram | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.3228 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4724 | |
| Country of Origin: Sweden |
| MSC# | 01926427 |
| Mfr# | 00035445 |
| Big Book# | 664 |
