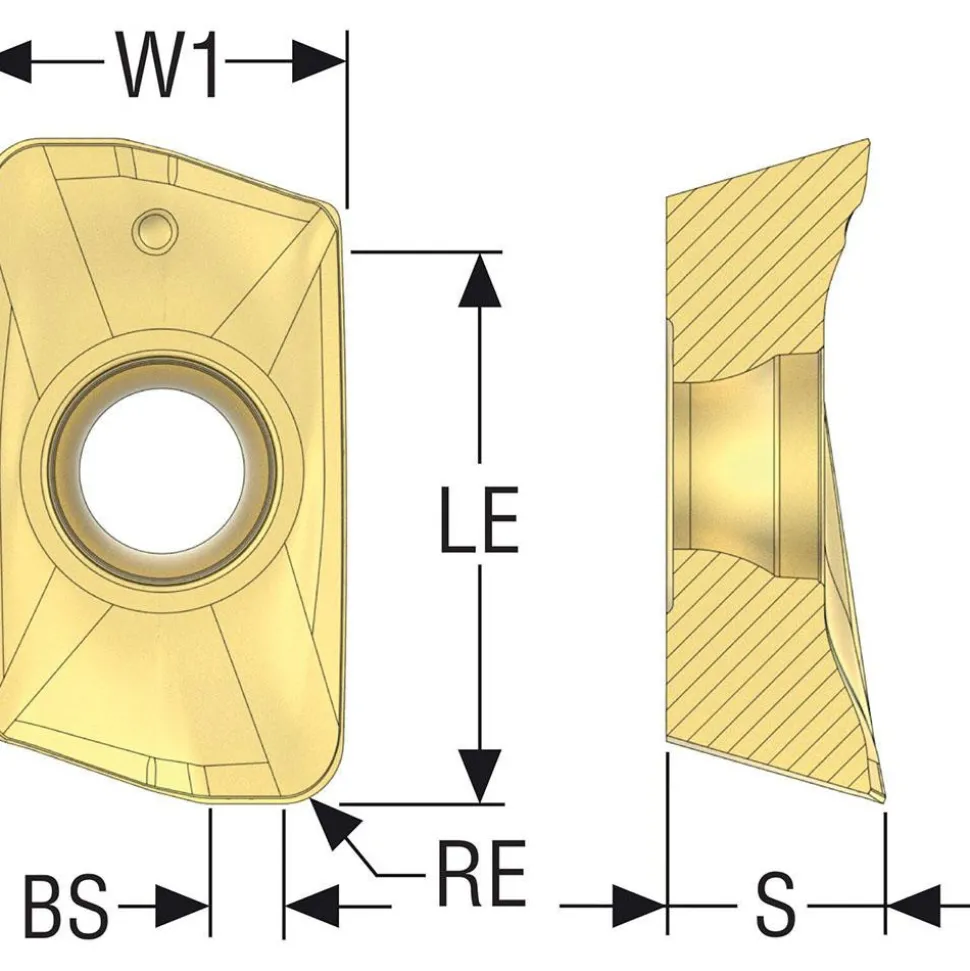

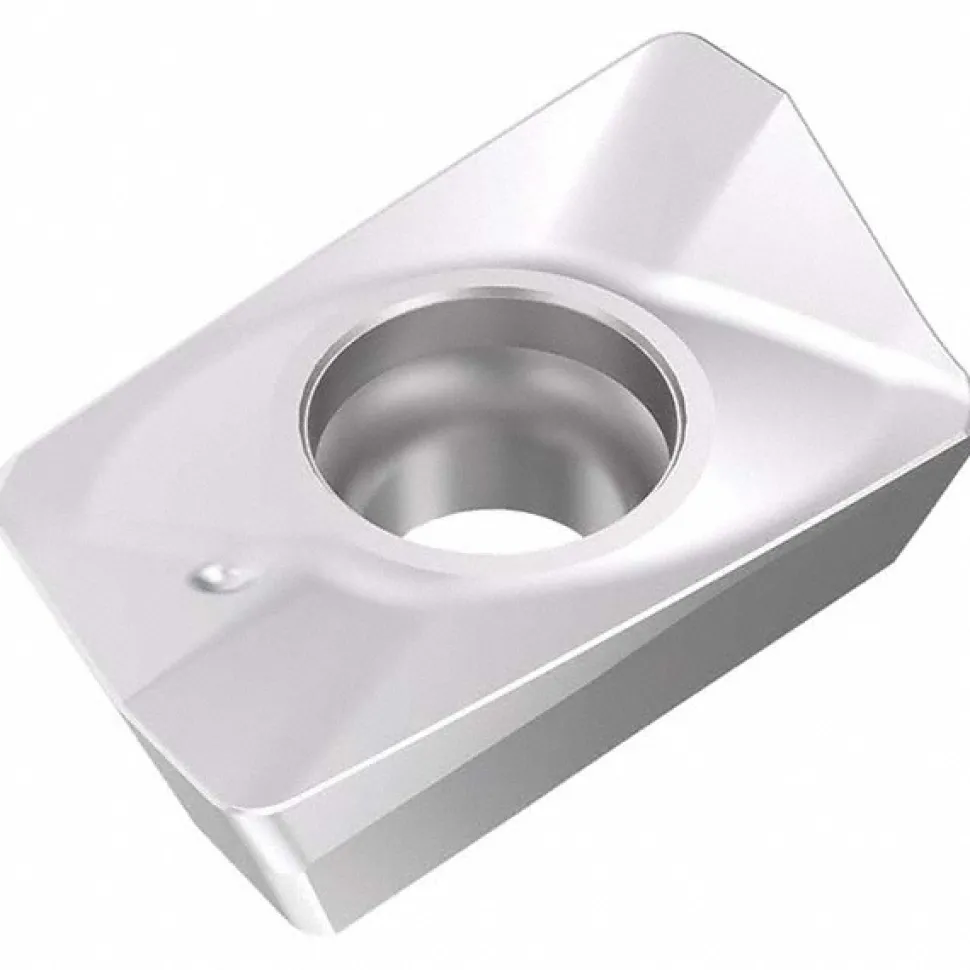

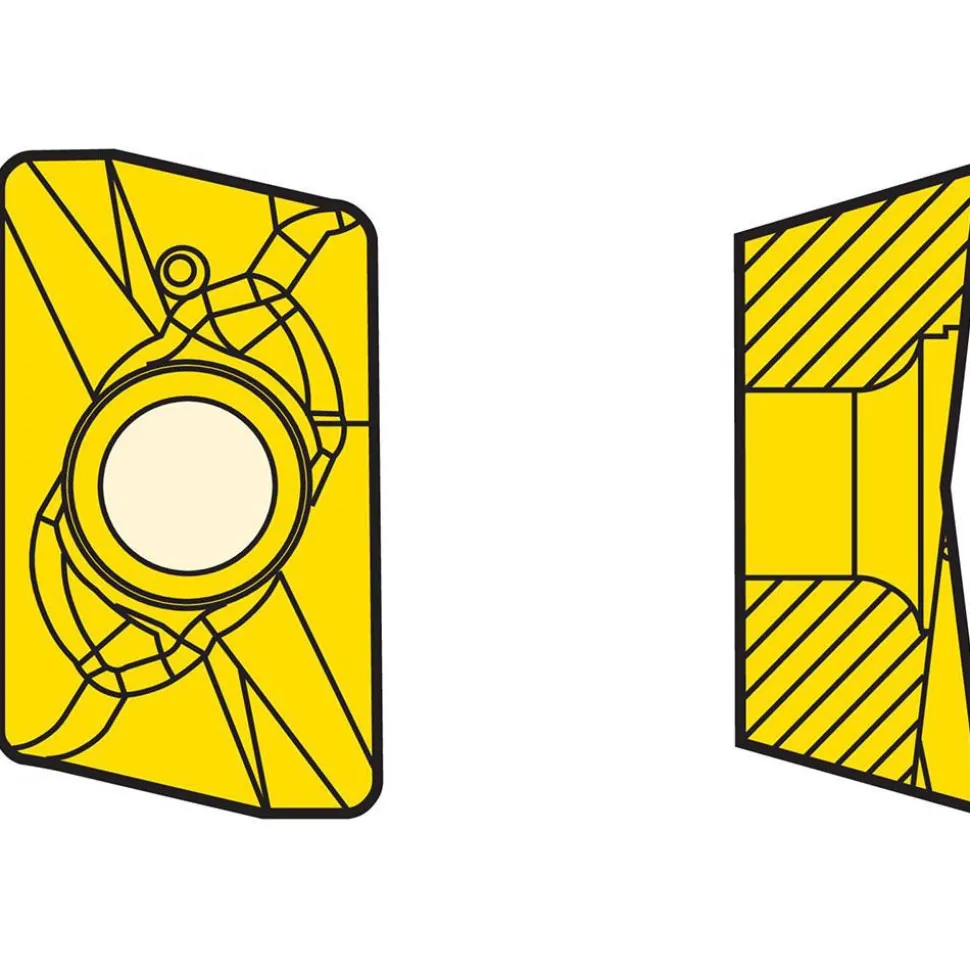

Milling Inserts: Insert Style: XOMX; Insert Size: 18; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 42,00 $.29,99 $Current price is: 29,99 $.
Specifications
| Insert Style: XOMX | Insert Size: 18 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: MP2501 | Corner Radius (Decimal Inch): 0.0315 |
| Number Of Cutting Edges: 2 | Thickness (Decimal Inch – 4 Decimals): 0.2520 |
| Thickness (mm): 6.40 | Coating/Finish: TiCN; Al2O3 |
| Relief Angle: 15.000 | Insert Size Code: 180608 |
| Material Grade: Fine Grain | Inscribed Circle (Decimal Inch): 0.4409 |
| Inscribed Circle (mm): 11.20 | Thickness Range (Decimal Inch): 0.2500 to 0.3500 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (mm): 8.25 | Maximum Depth of Cut (Decimal Inch): 0.6693 |
| Series: XOMX-18 | Coating Process: CVD |
| Hole Diameter (Decimal Inch): 0.1969 | Cutting Edge Effective Length (Decimal Inch): 0.6693 |
| Rake: Positive | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code: S; K; M | Ansi Code: XOMX180608TR-M14 |
| Iso Code: XOMX180608TR-M14 | Standards: ISO |
| Rake Angle: 15.500 | Cutting Edge Style: T-Land |
| Manufacturers Catalog Number: XOMX180608TR-M14 | Cutter Series Compatibility: R220.69-18; R217.69-18 |
| Chip Breaker: M14 | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Shape: Parallelogram |
| Insert Holding Method: Screw | Coating Classification: Duratomic |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Length (mm): 16.50 | Width (Decimal Inch – 4 Decimals): 0.4409 |
| Width (mm – 2 Decimals): 11.20 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.6693 | Country of Origin: Sweden |
| Insert Style: XOMX | |
| Insert Size: 18 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: MP2501 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2520 | |
| Thickness (mm): 6.40 | |
| Coating/Finish: TiCN; Al2O3 | |
| Relief Angle: 15.000 | |
| Insert Size Code: 180608 | |
| Material Grade: Fine Grain | |
| Inscribed Circle (Decimal Inch): 0.4409 | |
| Inscribed Circle (mm): 11.20 | |
| Thickness Range (Decimal Inch): 0.2500 to 0.3500 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (mm): 8.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.6693 | |
| Series: XOMX-18 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1969 | |
| Cutting Edge Effective Length (Decimal Inch): 0.6693 | |
| Rake: Positive | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Secondary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium | |
| Secondary Workpiece Material Code: S; K; M | |
| Ansi Code: XOMX180608TR-M14 | |
| Iso Code: XOMX180608TR-M14 | |
| Standards: ISO | |
| Rake Angle: 15.500 | |
| Cutting Edge Style: T-Land | |
| Manufacturers Catalog Number: XOMX180608TR-M14 | |
| Cutter Series Compatibility: R220.69-18; R217.69-18 | |
| Chip Breaker: M14 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Shape: Parallelogram | |
| Insert Holding Method: Screw | |
| Coating Classification: Duratomic | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Length (mm): 16.50 | |
| Width (Decimal Inch – 4 Decimals): 0.4409 | |
| Width (mm – 2 Decimals): 11.20 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6693 | |
| Country of Origin: Sweden |
| MSC# | 96593041 |
| Mfr# | 03272861 |
