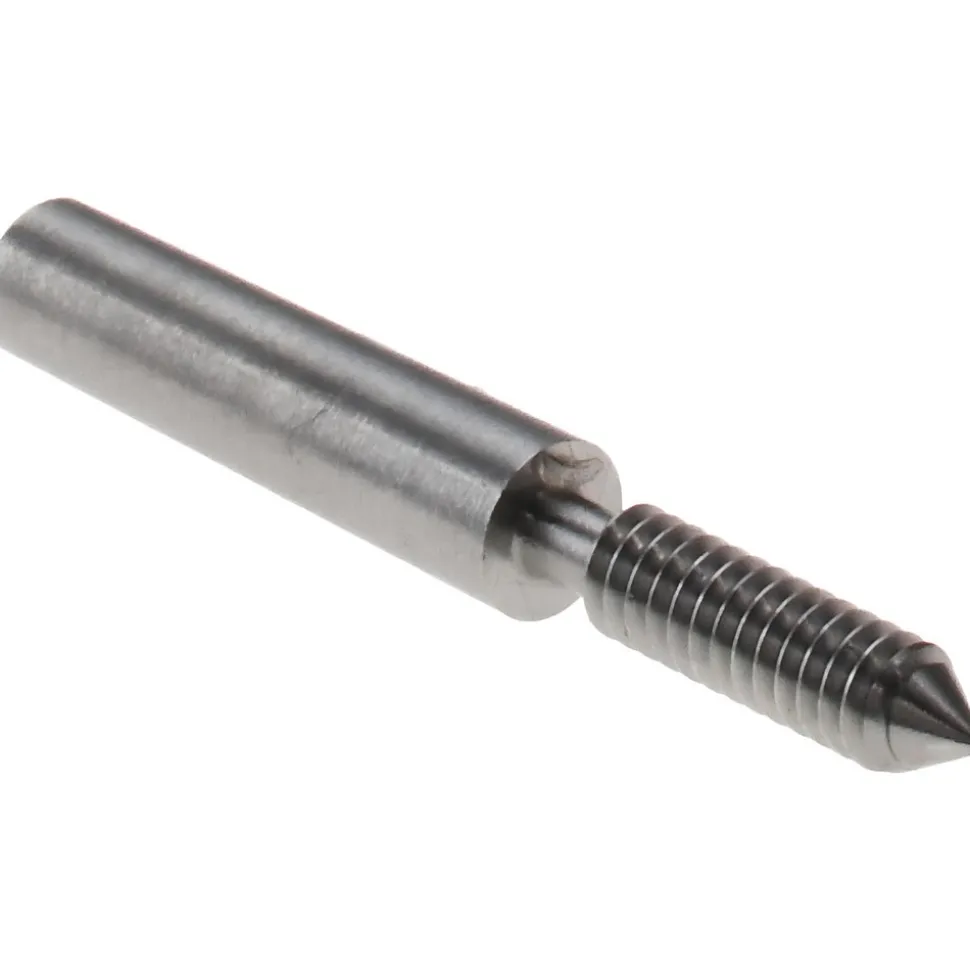

Plug Thread Gage: #4-40 Thread, 2B Class, Single End, Go

58,89 $

Specifications

Go/No Go: Go	Thread Size: #4-40
Material: Tool Steel	Classification: 2B
Go Pitch Diameter (Inch): 0.0958	Go Pitch Diameter (mm): 2.4333
Handle Size: 00	Handle Included: No
Overall Length (Decimal Inch): 1.0625	Overall Length (mm): 26.99
Thread Direction: Right Hand	Calibrated: No
Traceability Certification Included: Inspection Certificate Traceable to NIST	Standards: ASME B1.2
Single Or Double End: Single	Thread Standard: UNC
UNSPSC Code: 41111619	Country of Origin: India
Go/No Go: Go
Thread Size: #4-40
Material: Tool Steel
Classification: 2B
Go Pitch Diameter (Inch): 0.0958
Go Pitch Diameter (mm): 2.4333
Handle Size: 00
Handle Included: No
Overall Length (Decimal Inch): 1.0625
Overall Length (mm): 26.99
Thread Direction: Right Hand
Calibrated: No
Traceability Certification Included: Inspection Certificate Traceable to NIST
Standards: ASME B1.2
Single Or Double End: Single
Thread Standard: UNC
UNSPSC Code: 41111619
Country of Origin: India
