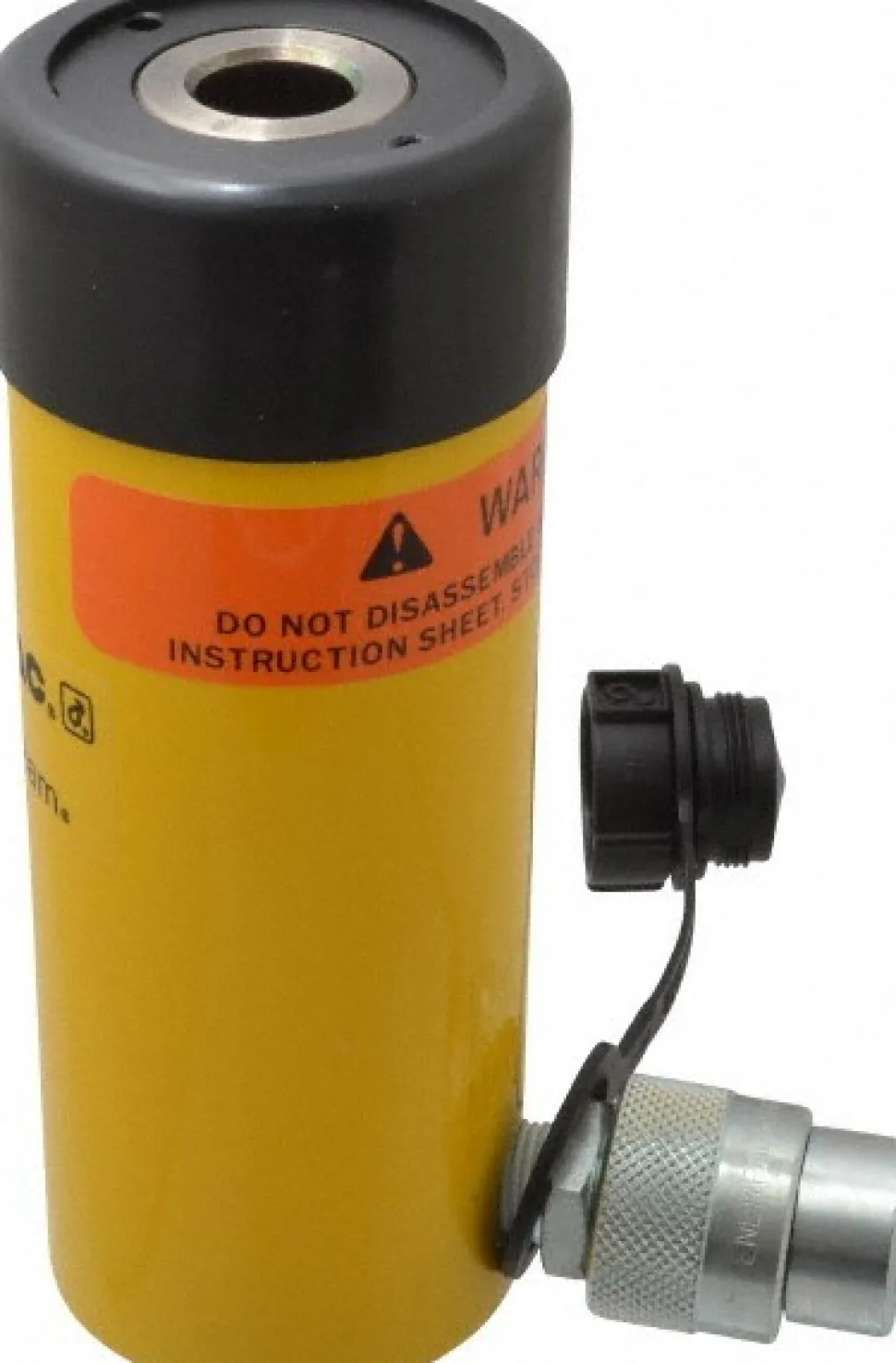

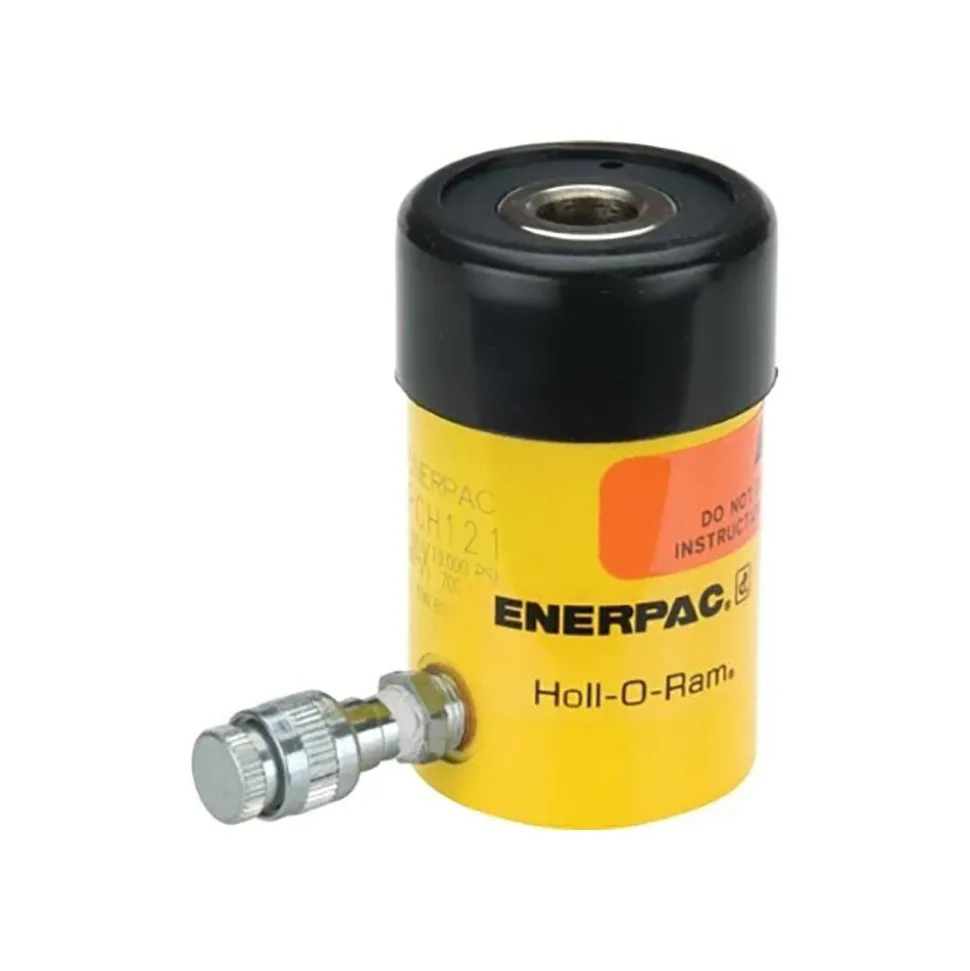

Portable Hydraulic Cylinder: 14 Ton, 3″ Stroke, Single Acting, 8.29 cu in
Original price was: 1 778,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Actuation: Single Acting | Load Capacity: 14 TON |
| Stroke Length: 3.00 in | Piston Stroke (Decimal Inch): 3.0000 |
| Oil Capacity: 8.29 cu in | Cylinder Bore Diameter (Decimal Inch): 2.13 |
| Cylinder Effective Area: 13.74 | Lowered Height: 7.25 |
| Retracted Length: 7 in | Extended Length: 10.25 in |
| Cushion Type: No Cushion | Bore Diameter: 2.1300 in |
| Outside Diameter: 2.75 in | Rod Diameter: 1.3800 in |
| Plunger Type: Hollow | Body Material: Steel |
| Series: RCH | Collar Thread: 2-3/4 – 16 |
| Maximum Height (Inch): 10.2500 | UNSPSC Code: 27121602 |
| Country of Origin: China | |
| Actuation: Single Acting | |
| Load Capacity: 14 TON | |
| Stroke Length: 3.00 in | |
| Piston Stroke (Decimal Inch): 3.0000 | |
| Oil Capacity: 8.29 cu in | |
| Cylinder Bore Diameter (Decimal Inch): 2.13 | |
| Cylinder Effective Area: 13.74 | |
| Lowered Height: 7.25 | |
| Retracted Length: 7 in | |
| Extended Length: 10.25 in | |
| Cushion Type: No Cushion | |
| Bore Diameter: 2.1300 in | |
| Outside Diameter: 2.75 in | |
| Rod Diameter: 1.3800 in | |
| Plunger Type: Hollow | |
| Body Material: Steel | |
| Series: RCH | |
| Collar Thread: 2-3/4 – 16 | |
| Maximum Height (Inch): 10.2500 | |
| UNSPSC Code: 27121602 | |
| Country of Origin: China |
| MSC# | 80016561 |
| Mfr# | RCH123 |
| Big Book# | 3968 |
