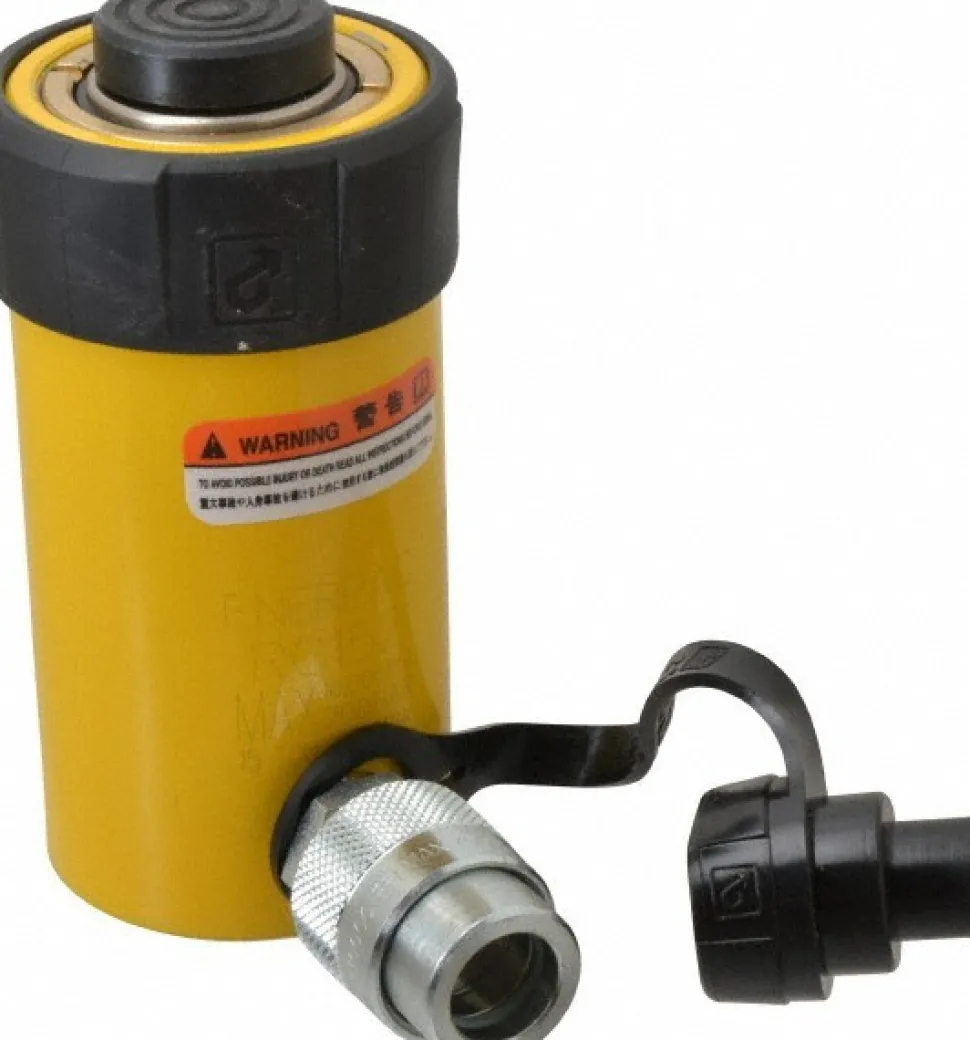

Portable Hydraulic Cylinder: 16 Ton, 2″ Stroke, Single Acting, 6.28 cu in
Original price was: 923,00 $.138,99 $Current price is: 138,99 $.
Specifications
| Actuation: Single Acting | Load Capacity: 16 TON |
| Stroke Length: 2.00 in | Piston Stroke (Decimal Inch): 2.0000 |
| Oil Capacity: 6.28 cu in | Cylinder Bore Diameter (Decimal Inch): 2.00 |
| Cylinder Effective Area: 12.9 | Lowered Height: 5.88 |
| Retracted Length: 6 in | Extended Length: 7.88 in |
| Cushion Type: No Cushion | Bore Diameter: 2.0000 in |
| Outside Diameter: 2.75 in | Rod Diameter: 1.6300 in |
| Plunger Type: Solid | Body Material: Steel |
| Plunger Internal Thread Size: 1-8 | Series: RC |
| Collar Thread: 2-3/4 – 16 | Plunger Internal Thread Length: 1.00 |
| Maximum Height (Inch): 7.8800 | UNSPSC Code: 27121602 |
| Country of Origin: China | |
| Actuation: Single Acting | |
| Load Capacity: 16 TON | |
| Stroke Length: 2.00 in | |
| Piston Stroke (Decimal Inch): 2.0000 | |
| Oil Capacity: 6.28 cu in | |
| Cylinder Bore Diameter (Decimal Inch): 2.00 | |
| Cylinder Effective Area: 12.9 | |
| Lowered Height: 5.88 | |
| Retracted Length: 6 in | |
| Extended Length: 7.88 in | |
| Cushion Type: No Cushion | |
| Bore Diameter: 2.0000 in | |
| Outside Diameter: 2.75 in | |
| Rod Diameter: 1.6300 in | |
| Plunger Type: Solid | |
| Body Material: Steel | |
| Plunger Internal Thread Size: 1-8 | |
| Series: RC | |
| Collar Thread: 2-3/4 – 16 | |
| Plunger Internal Thread Length: 1.00 | |
| Maximum Height (Inch): 7.8800 | |
| UNSPSC Code: 27121602 | |
| Country of Origin: China |
| MSC# | 80012909 |
| Mfr# | RC152 |
| Big Book# | 3967 |
