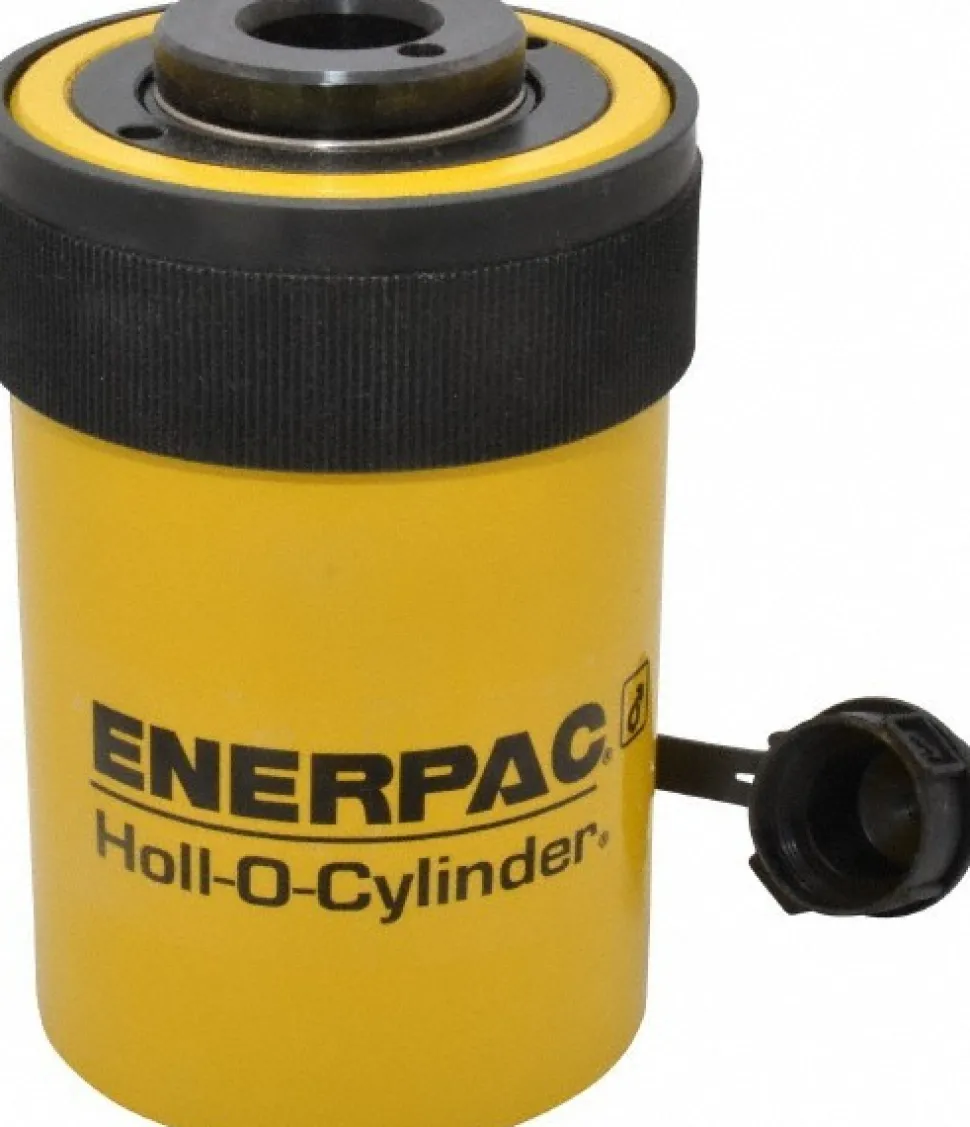

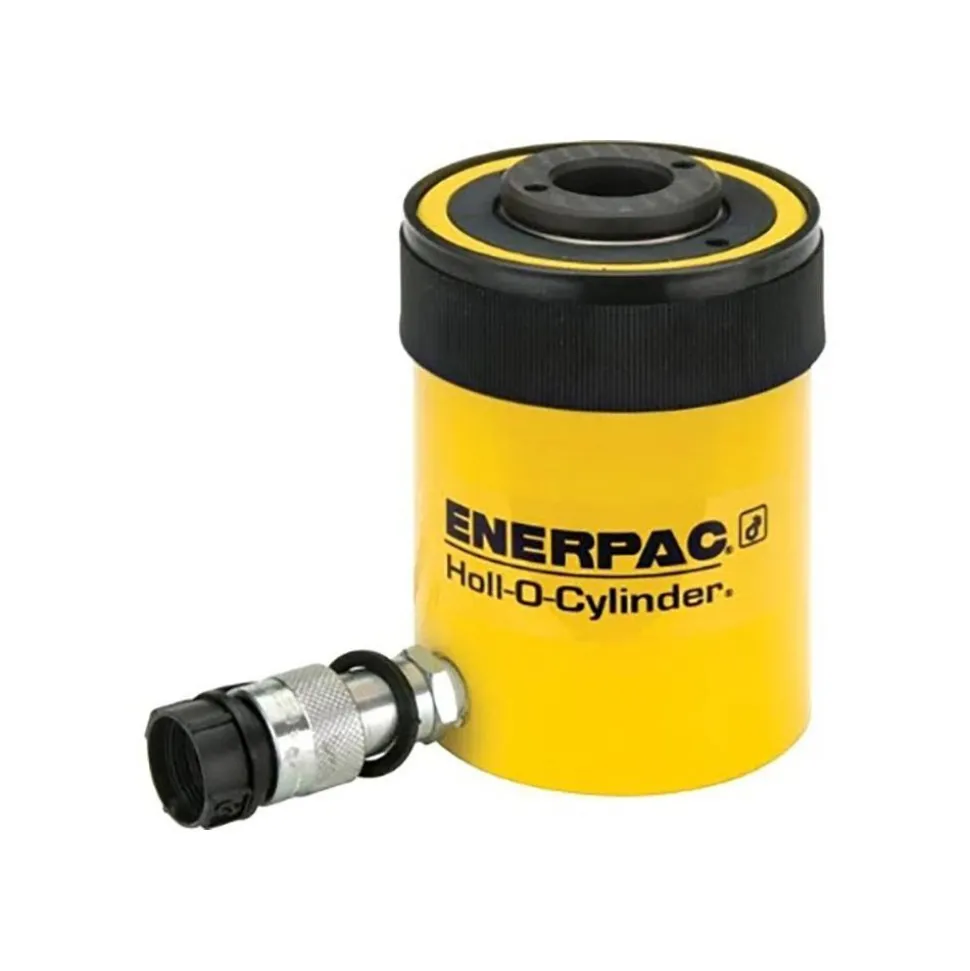

Portable Hydraulic Cylinder: 24 Ton, 2" Stroke, Single Acting, 9.46 cu in

Portable Hydraulic Cylinder: 24 Ton, 2″ Stroke, Single Acting, 9.46 cu in

Original price was: 1 783,00 $.Current price is: 140,99 $.

SKU: SKUWEPUUrUJUQ Categories: Hydraulics, Motion Control & Fluid Power, Shop All Products Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Specifications

Actuation: Single Acting	Load Capacity: 24 TON
Stroke Length: 2.00 in	Piston Stroke (Decimal Inch): 2.0000
Oil Capacity: 9.46 cu in	Cylinder Bore Diameter (Decimal Inch): 2.88
Cylinder Effective Area: 18.58	Lowered Height: 6.38
Retracted Length: 6 in	Extended Length: 8.38 in
Cushion Type: No Cushion	Bore Diameter: 2.8800 in
Outside Diameter: 3.88 in	Rod Diameter: 2.1300 in
Plunger Type: Hollow	Body Material: Steel
Plunger Internal Thread Size: 1-9/16-16	Series: RCH
Collar Thread: 3-7/8 – 12	Plunger Internal Thread Length: 0.75
Maximum Height (Inch): 8.3800	UNSPSC Code: 27121602
Country of Origin: China
Actuation: Single Acting
Load Capacity: 24 TON
Stroke Length: 2.00 in
Piston Stroke (Decimal Inch): 2.0000
Oil Capacity: 9.46 cu in
Cylinder Bore Diameter (Decimal Inch): 2.88
Cylinder Effective Area: 18.58
Lowered Height: 6.38
Retracted Length: 6 in
Extended Length: 8.38 in
Cushion Type: No Cushion
Bore Diameter: 2.8800 in
Outside Diameter: 3.88 in
Rod Diameter: 2.1300 in
Plunger Type: Hollow
Body Material: Steel
Plunger Internal Thread Size: 1-9/16-16
Series: RCH
Collar Thread: 3-7/8 – 12
Plunger Internal Thread Length: 0.75
Maximum Height (Inch): 8.3800
UNSPSC Code: 27121602
Country of Origin: China
