Sale!

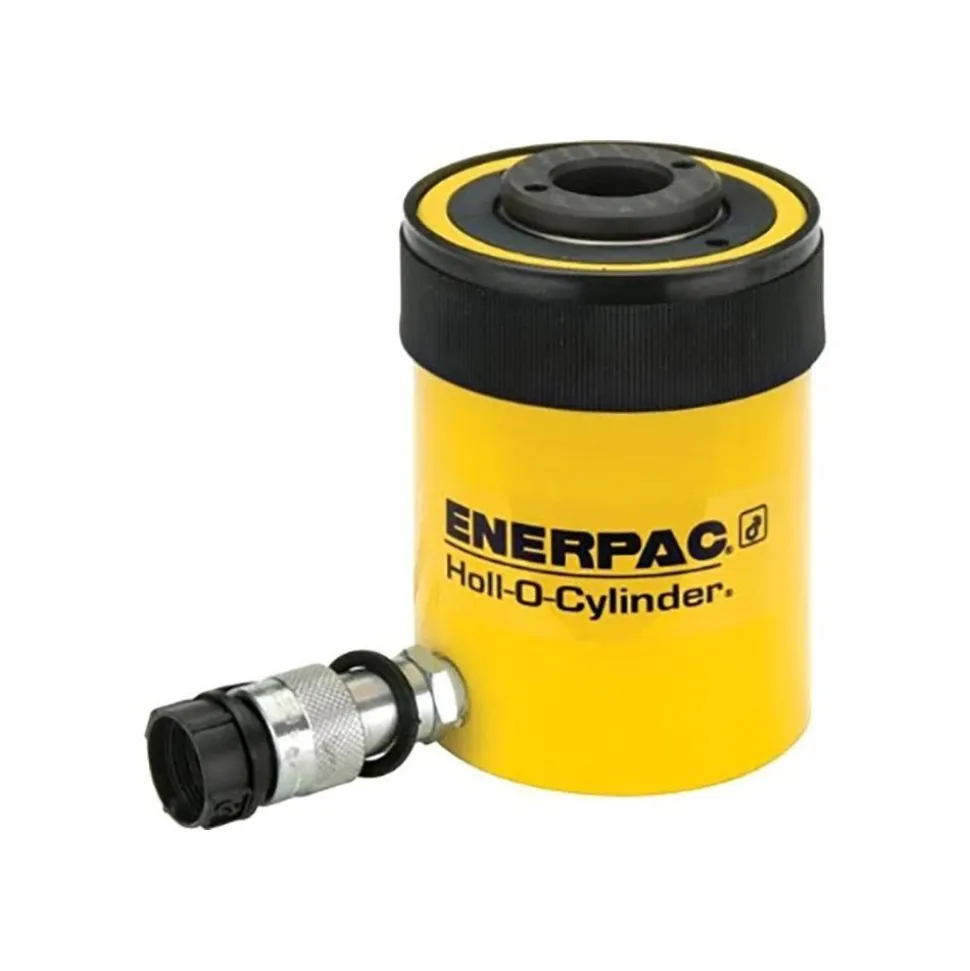

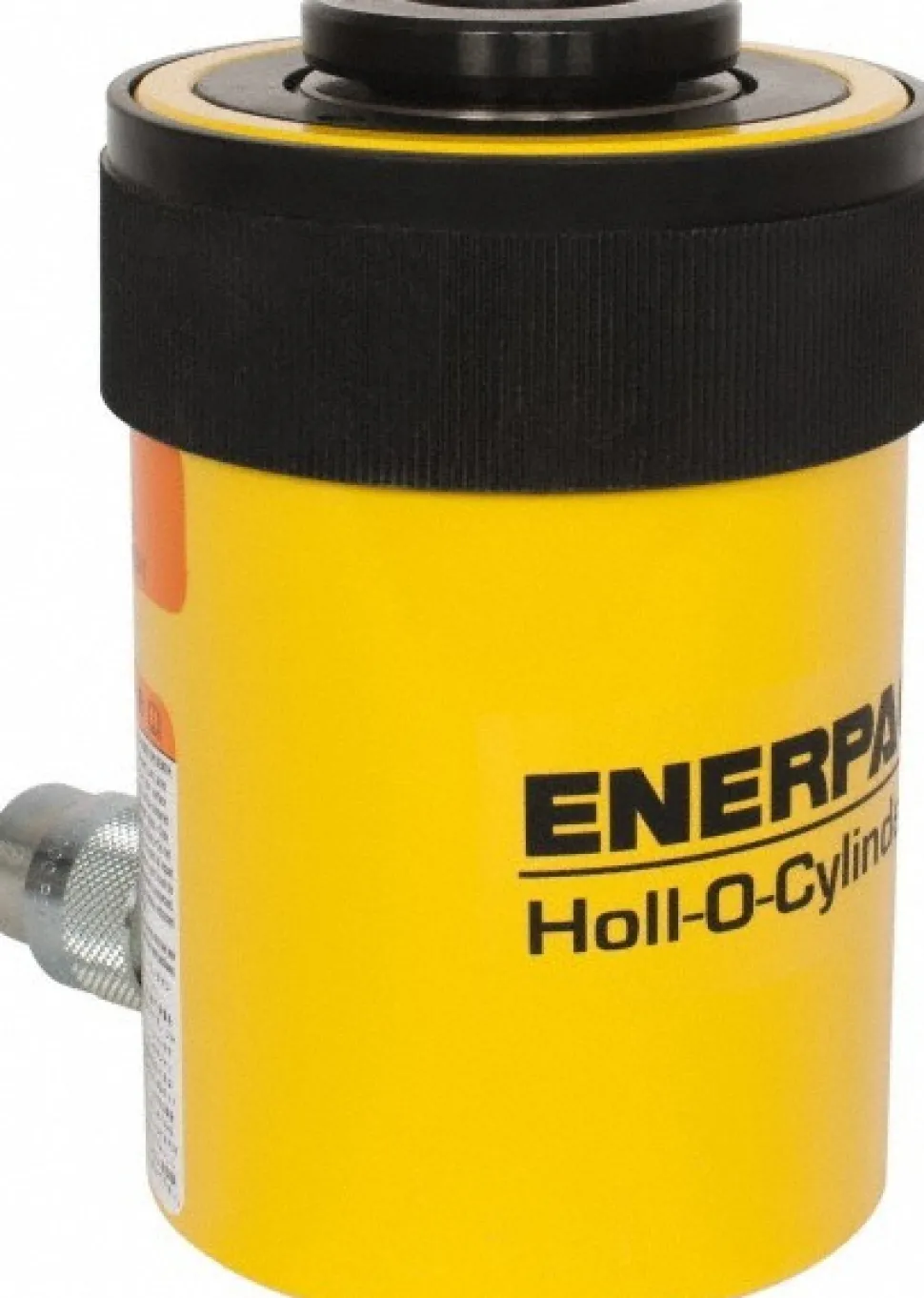

Portable Hydraulic Cylinder: 36 Ton, 2.5″ Stroke, Single Acting, 18.05 cu in
Original price was: 2 468,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Actuation: Single Acting | Load Capacity: 36 TON |
| Stroke Length: 2.50 in | Piston Stroke (Decimal Inch): 2.5000 |
| Oil Capacity: 18.05 cu in | Cylinder Bore Diameter (Decimal Inch): 3.50 |
| Cylinder Effective Area: 22.58 | Lowered Height: 7.03 |
| Retracted Length: 7 in | Extended Length: 9.53 in |
| Cushion Type: No Cushion | Bore Diameter: 3.5000 in |
| Outside Diameter: 4.5 in | Rod Diameter: 2.5000 in |
| Plunger Type: Hollow | Body Material: Steel |
| Plunger Internal Thread Size: 1-13/16-16 | Series: RCH |
| Collar Thread: 4-1/2 – 12 | Plunger Internal Thread Length: 0.88 |
| Maximum Height (Inch): 9.5300 | UNSPSC Code: 27121602 |
| Country of Origin: China | |
| Actuation: Single Acting | |
| Load Capacity: 36 TON | |
| Stroke Length: 2.50 in | |
| Piston Stroke (Decimal Inch): 2.5000 | |
| Oil Capacity: 18.05 cu in | |
| Cylinder Bore Diameter (Decimal Inch): 3.50 | |
| Cylinder Effective Area: 22.58 | |
| Lowered Height: 7.03 | |
| Retracted Length: 7 in | |
| Extended Length: 9.53 in | |
| Cushion Type: No Cushion | |
| Bore Diameter: 3.5000 in | |
| Outside Diameter: 4.5 in | |
| Rod Diameter: 2.5000 in | |
| Plunger Type: Hollow | |
| Body Material: Steel | |
| Plunger Internal Thread Size: 1-13/16-16 | |
| Series: RCH | |
| Collar Thread: 4-1/2 – 12 | |
| Plunger Internal Thread Length: 0.88 | |
| Maximum Height (Inch): 9.5300 | |
| UNSPSC Code: 27121602 | |
| Country of Origin: China |
| MSC# | 80016603 |
| Mfr# | RCH302 |
| Big Book# | 3968 |
