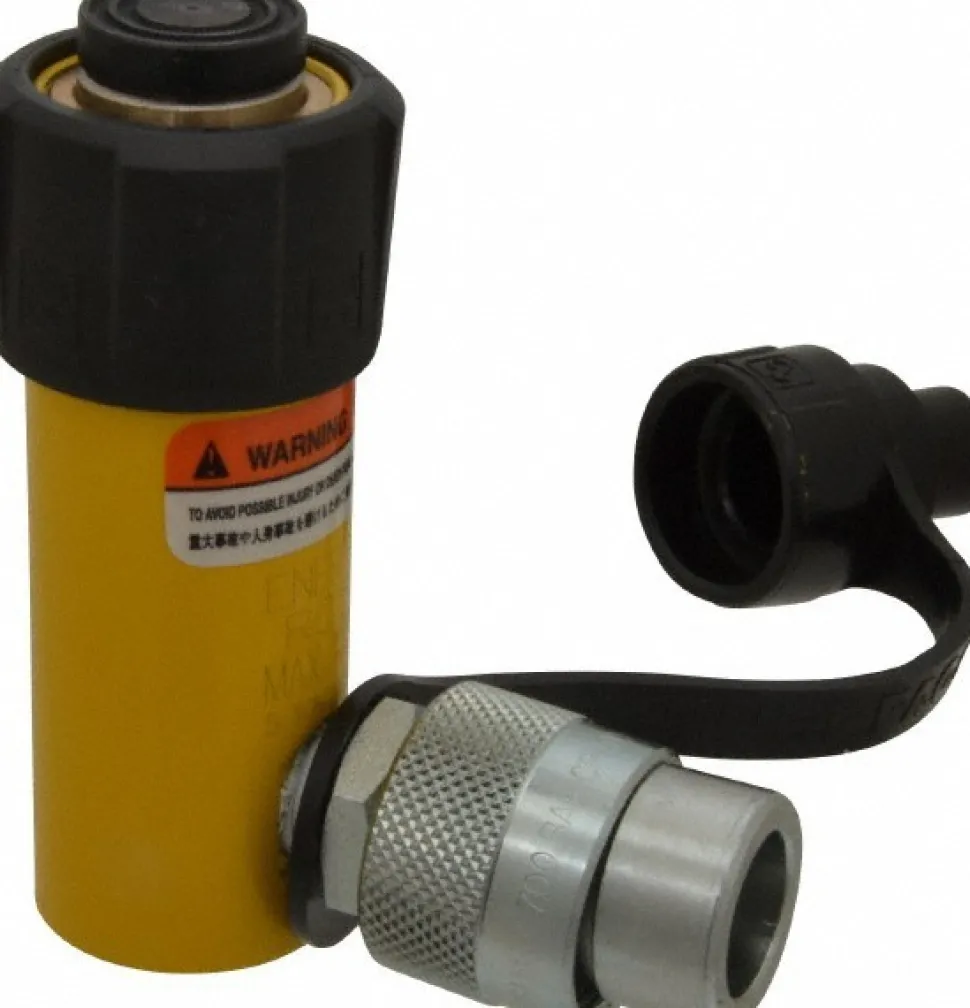

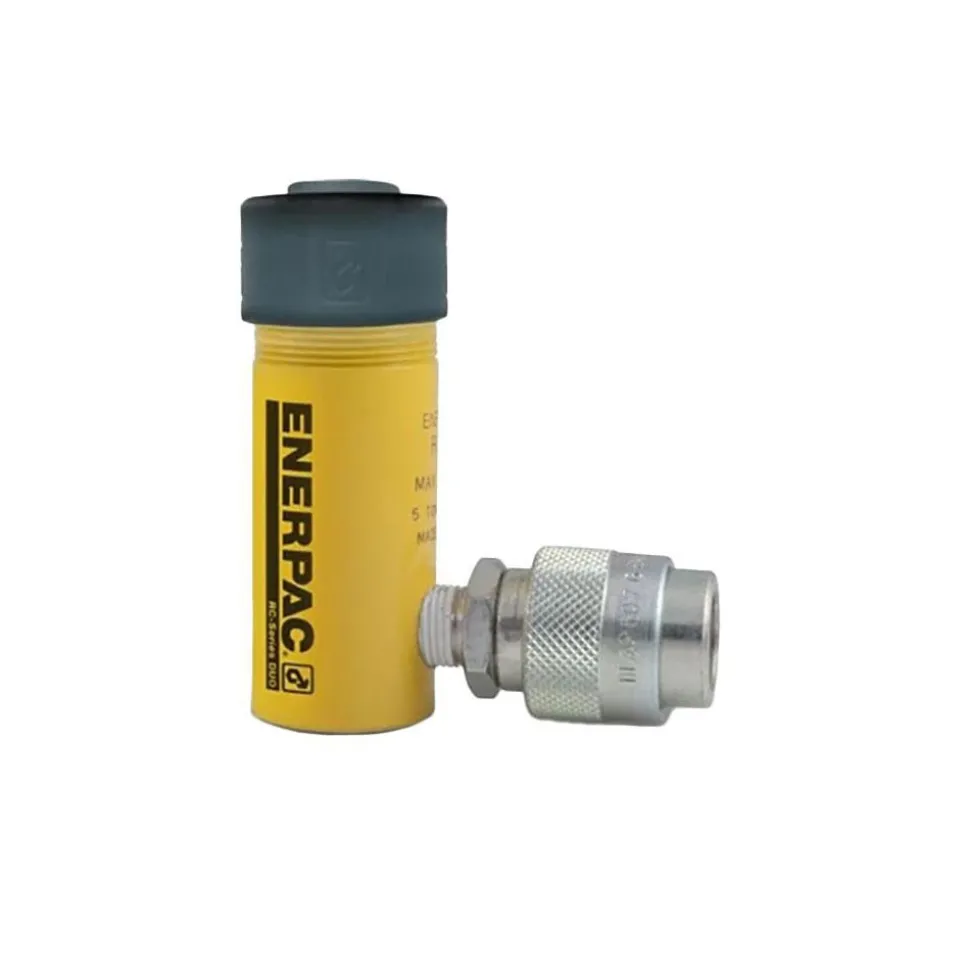

Portable Hydraulic Cylinder: 5 Ton, 1" Stroke, Single Acting, 0.99 cu in

Portable Hydraulic Cylinder: 5 Ton, 1″ Stroke, Single Acting, 0.99 cu in

138,99 $

SKU: SKUY6ojvfWDfR Categories: Hydraulics, Motion Control & Fluid Power, Shop All Products Tag: Enerpac Brand: Enerpac

Description
Reviews (0)

Specifications

Actuation: Single Acting	Load Capacity: 5 TON
Stroke Length: 1.00 in	Piston Stroke (Decimal Inch): 1.0000
Oil Capacity: 0.99 cu in	Cylinder Bore Diameter (Decimal Inch): 1.13
Cylinder Effective Area: 7.29	Lowered Height: 4.34
Retracted Length: 4 in	Extended Length: 5.34 in
Cushion Type: No Cushion	Bore Diameter: 1.1300 in
Outside Diameter: 1.5 in	Rod Diameter: 1.0000 in
Plunger Type: Solid	Body Material: Steel
Plunger Internal Thread Size: 3/4-16	Series: RC
Collar Thread: 1-1/2 – 16	Plunger Internal Thread Length: 0.56
Maximum Height (Inch): 5.3400	UNSPSC Code: 27121602
Country of Origin: China
Actuation: Single Acting
Load Capacity: 5 TON
Stroke Length: 1.00 in
Piston Stroke (Decimal Inch): 1.0000
Oil Capacity: 0.99 cu in
Cylinder Bore Diameter (Decimal Inch): 1.13
Cylinder Effective Area: 7.29
Lowered Height: 4.34
Retracted Length: 4 in
Extended Length: 5.34 in
Cushion Type: No Cushion
Bore Diameter: 1.1300 in
Outside Diameter: 1.5 in
Rod Diameter: 1.0000 in
Plunger Type: Solid
Body Material: Steel
Plunger Internal Thread Size: 3/4-16
Series: RC
Collar Thread: 1-1/2 – 16
Plunger Internal Thread Length: 0.56
Maximum Height (Inch): 5.3400
UNSPSC Code: 27121602
Country of Origin: China
