Sale!

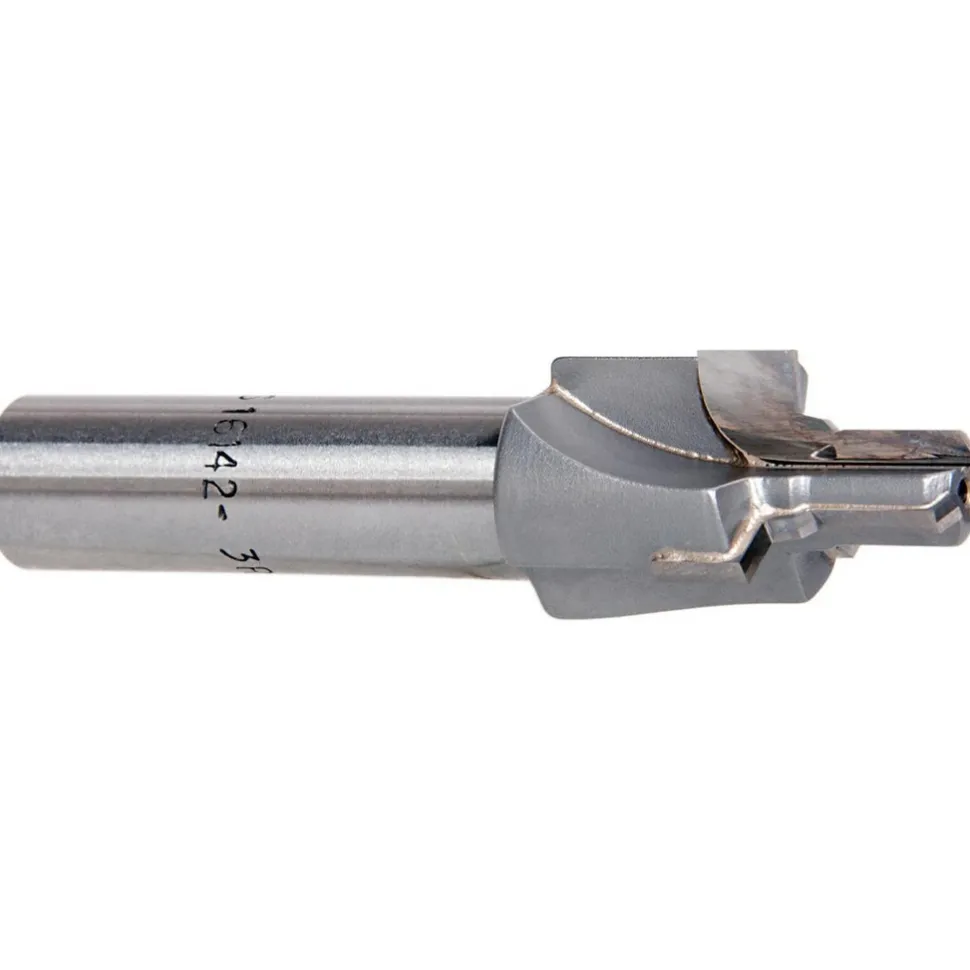

Porting Tool: 0.7600″ Spotface Dia, 3/16″ Tube OD, Reamer, 3/8-24″ Port, Carbide-Tipped, Tube Dash # 3.000
Original price was: 255,00 $.138,99 $Current price is: 138,99 $.
Specifications
| Spotface Diameter (Decimal Inch): 0.7600 | Tube Outside Diameter Compatibility (Inch): 3/16 |
| Pilot Type: Reamer | Port Thread Size (Decimal Inch): 3/8-24 |
| Tool Material: Carbide-Tipped | Tube Dash Number: 3.000 |
| Minimum Pilot Diameter (Decimal Inch): 0.3330 | Pilot Length: 0.3970 |
| Overall Length (Inch): 3 | Number Of Flutes: 3 |
| Standards: SAEJ1926; MS16142 | Shank Type: Straight |
| Identification Groove: No | Series: Standard |
| Seal Angle: 12 | Thread Type: UNF |
| Flute Type: Straight | Shank Diameter (Inch): 1/2 |
| Shank Length (Decimal Inch): 1.7500 | Maximum Pilot Diameter (Decimal Inch): 0.4235 |
| Head Length (Decimal Inch): 1.2500 | Workpiece Compatibility: Tubes |
| Coating/Finish: Bright/Uncoated | UNSPSC Code: 23241603 |
| Country of Origin: UNITED STATES | |
| Spotface Diameter (Decimal Inch): 0.7600 | |
| Tube Outside Diameter Compatibility (Inch): 3/16 | |
| Pilot Type: Reamer | |
| Port Thread Size (Decimal Inch): 3/8-24 | |
| Tool Material: Carbide-Tipped | |
| Tube Dash Number: 3.000 | |
| Minimum Pilot Diameter (Decimal Inch): 0.3330 | |
| Pilot Length: 0.3970 | |
| Overall Length (Inch): 3 | |
| Number Of Flutes: 3 | |
| Standards: SAEJ1926; MS16142 | |
| Shank Type: Straight | |
| Identification Groove: No | |
| Series: Standard | |
| Seal Angle: 12 | |
| Thread Type: UNF | |
| Flute Type: Straight | |
| Shank Diameter (Inch): 1/2 | |
| Shank Length (Decimal Inch): 1.7500 | |
| Maximum Pilot Diameter (Decimal Inch): 0.4235 | |
| Head Length (Decimal Inch): 1.2500 | |
| Workpiece Compatibility: Tubes | |
| Coating/Finish: Bright/Uncoated | |
| UNSPSC Code: 23241603 | |
| Country of Origin: UNITED STATES |
| MSC# | 99223158 |
| Mfr# | SAEJ1926-03R |
Be the first to review “Porting Tool: 0.7600″ Spotface Dia, 3/16″ Tube OD, Reamer, 3/8-24″ Port, Carbide-Tipped, Tube Dash # 3.000”
