Sale!

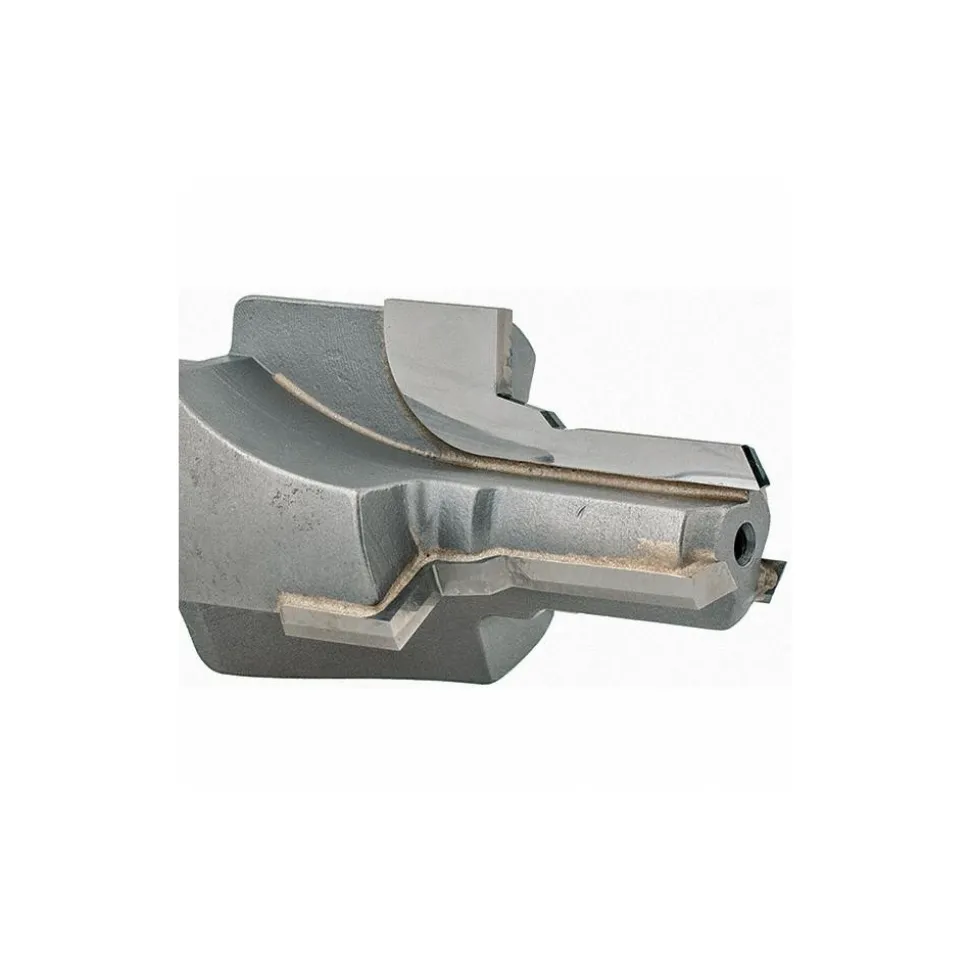

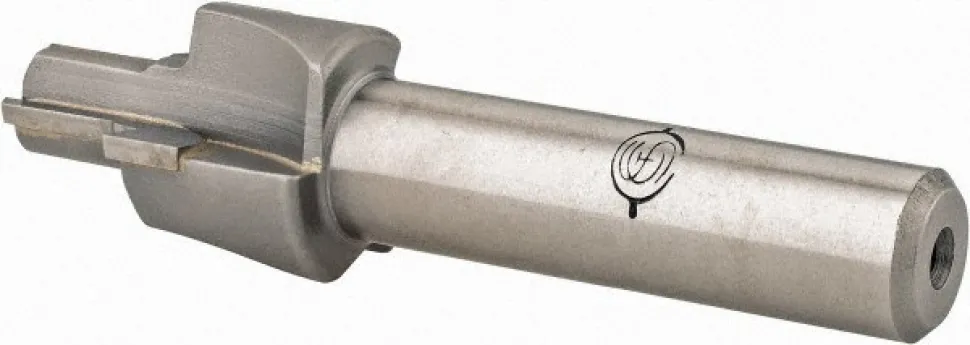

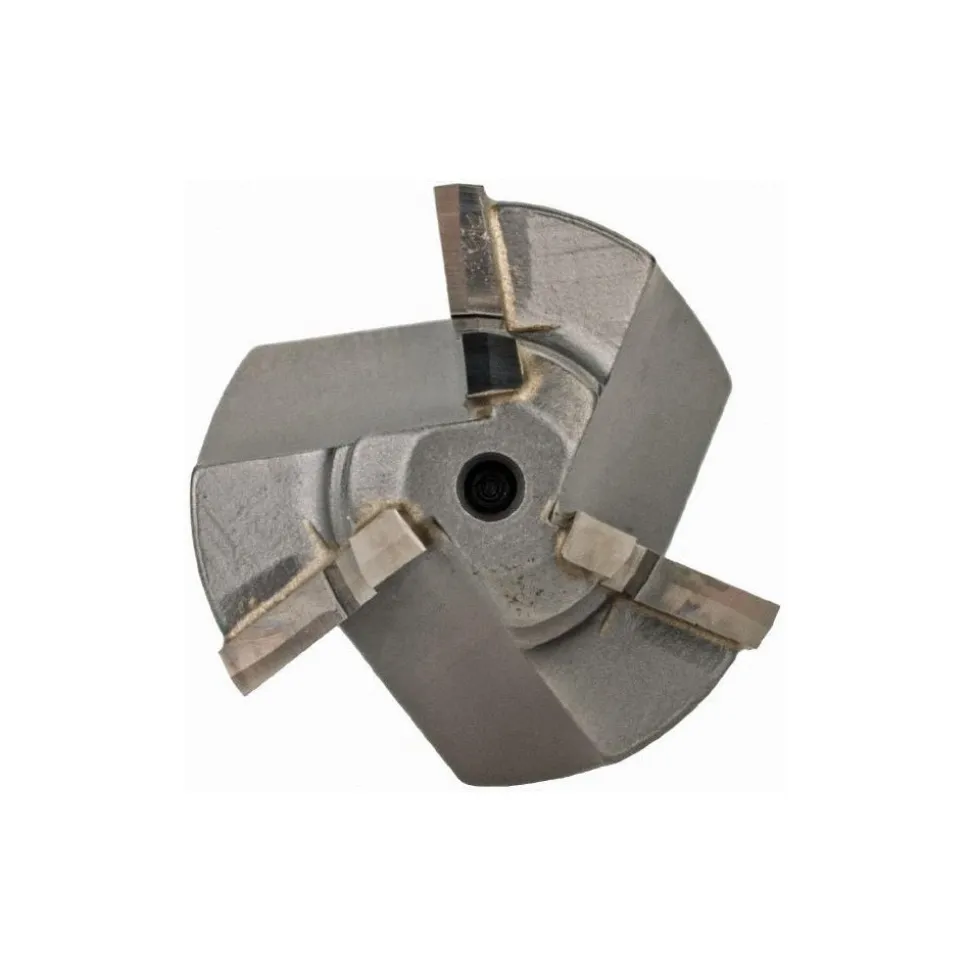

Porting Tool: 0.8380″ Spotface Dia, 1/4″ Tube OD, Reamer, 7/16-20″ Port, Carbide-Tipped, Tube Dash # 4.000
Original price was: 261,00 $.140,99 $Current price is: 140,99 $.
Specifications
| Spotface Diameter (Decimal Inch): 0.8380 | Tube Outside Diameter Compatibility (Inch): 1/4 |
| Pilot Type: Reamer | Port Thread Size (Decimal Inch): 7/16-20 |
| Tool Material: Carbide-Tipped | Tube Dash Number: 4.000 |
| Minimum Pilot Diameter (Decimal Inch): 0.3880 | Pilot Length: 0.4570 |
| Overall Length (Decimal Inch): 3.1200 | Number Of Flutes: 3 |
| Standards: SAEJ1926; MS16142 | Shank Type: Straight |
| Identification Groove: No | Series: Standard |
| Seal Angle: 12 | Thread Type: UNF |
| Flute Type: Straight | Shank Diameter (Inch): 1/2 |
| Shank Length (Decimal Inch): 1.8800 | Maximum Pilot Diameter (Decimal Inch): 0.4895 |
| Head Length (Decimal Inch): 1.2400 | Workpiece Compatibility: Tubes |
| Coating/Finish: Bright/Uncoated | UNSPSC Code: 23241603 |
| Country of Origin: UNITED STATES | |
| Spotface Diameter (Decimal Inch): 0.8380 | |
| Tube Outside Diameter Compatibility (Inch): 1/4 | |
| Pilot Type: Reamer | |
| Port Thread Size (Decimal Inch): 7/16-20 | |
| Tool Material: Carbide-Tipped | |
| Tube Dash Number: 4.000 | |
| Minimum Pilot Diameter (Decimal Inch): 0.3880 | |
| Pilot Length: 0.4570 | |
| Overall Length (Decimal Inch): 3.1200 | |
| Number Of Flutes: 3 | |
| Standards: SAEJ1926; MS16142 | |
| Shank Type: Straight | |
| Identification Groove: No | |
| Series: Standard | |
| Seal Angle: 12 | |
| Thread Type: UNF | |
| Flute Type: Straight | |
| Shank Diameter (Inch): 1/2 | |
| Shank Length (Decimal Inch): 1.8800 | |
| Maximum Pilot Diameter (Decimal Inch): 0.4895 | |
| Head Length (Decimal Inch): 1.2400 | |
| Workpiece Compatibility: Tubes | |
| Coating/Finish: Bright/Uncoated | |
| UNSPSC Code: 23241603 | |
| Country of Origin: UNITED STATES |
| MSC# | 99229312 |
| Mfr# | SAEJ1926-04R |
