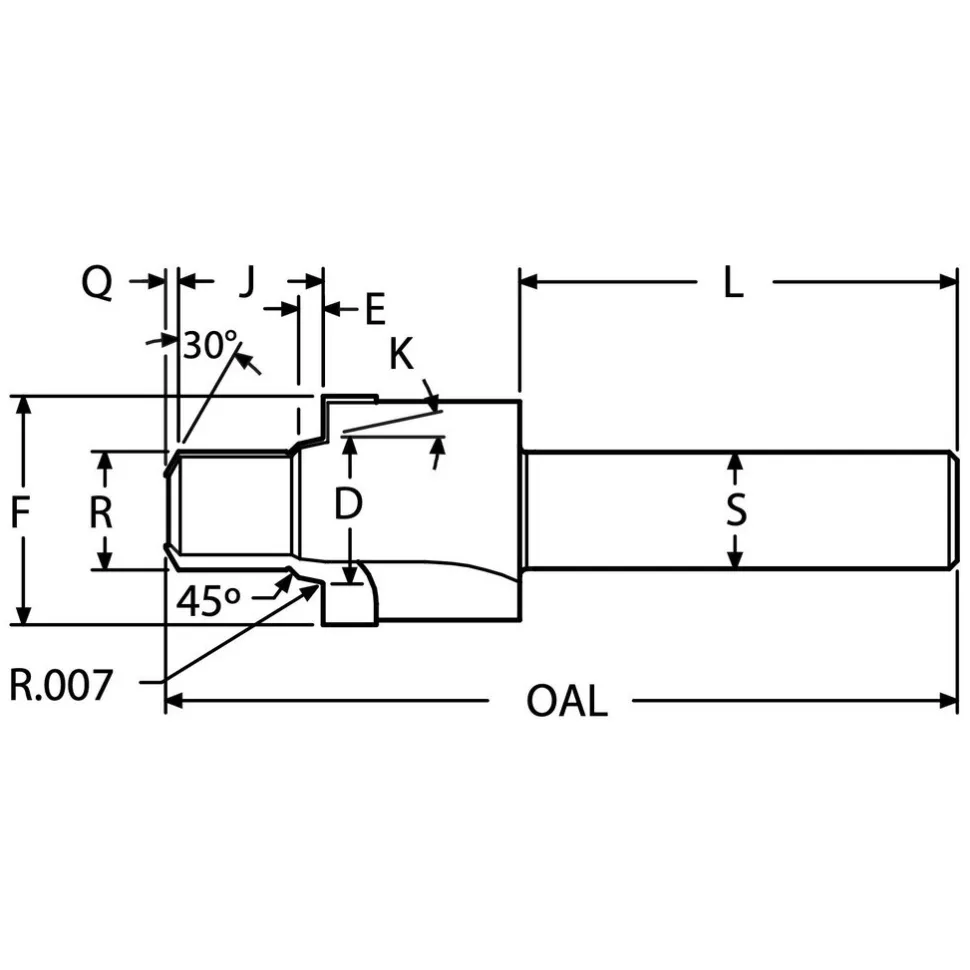

Porting Tool: 1.635″ Spotface Dia, 3/4″ Tube OD, Reamer, Tube Dash #12
136,89 $
Specifications
| Spotface Diameter (Decimal Inch): 1.6350 | Tube Outside Diameter Compatibility (Inch): 3/4 |
| Pilot Type: Reamer | Tool Material: Carbide-Tipped |
| Tube Dash Number: 12.000 | Minimum Pilot Diameter (Decimal Inch): 0.9790 |
| Pilot Length: 0.7790 | Overall Length (Decimal Inch): 3.9400 |
| Number Of Flutes: 4 | Standards: SAE J1926; MS 16142; SAE J514 |
| Identification Groove: No | Seal Angle: 15 |
| Flute Type: Straight | Shank Diameter (Inch): 3/4 |
| Shank Length (Decimal Inch): 2.1200 | Maximum Pilot Diameter (Decimal Inch): 1.1505 |
| Head Length (Decimal Inch): 1.8200 | Workpiece Compatibility: Tubes |
| Coating/Finish: AlTiN+ | UNSPSC Code: 23241603 |
| Country of Origin: UNITED STATES | |
| Spotface Diameter (Decimal Inch): 1.6350 | |
| Tube Outside Diameter Compatibility (Inch): 3/4 | |
| Pilot Type: Reamer | |
| Tool Material: Carbide-Tipped | |
| Tube Dash Number: 12.000 | |
| Minimum Pilot Diameter (Decimal Inch): 0.9790 | |
| Pilot Length: 0.7790 | |
| Overall Length (Decimal Inch): 3.9400 | |
| Number Of Flutes: 4 | |
| Standards: SAE J1926; MS 16142; SAE J514 | |
| Identification Groove: No | |
| Seal Angle: 15 | |
| Flute Type: Straight | |
| Shank Diameter (Inch): 3/4 | |
| Shank Length (Decimal Inch): 2.1200 | |
| Maximum Pilot Diameter (Decimal Inch): 1.1505 | |
| Head Length (Decimal Inch): 1.8200 | |
| Workpiece Compatibility: Tubes | |
| Coating/Finish: AlTiN+ | |
| UNSPSC Code: 23241603 | |
| Country of Origin: UNITED STATES |
| MSC# | 61996419 |
| Mfr# | SAEJ1926-12RA |
