Outside Diameter (Decimal Inch): 0.2400	Free Length (Inch): 1
Spring Rate: 48.0000	End Type: Ground; Closed
Maximum Work Load (N): 84.52	Maximum Work Load (Lb.): 18.0000
Material: Music Wire	Finish: Plain
Wire Size (Decimal Inch): 0.0421	Hole Diameter (Decimal Inch): 0.2500
Spring Type: Precision	Solid Height (Decimal Inch): 0.6210
Free Length (Decimal Inch): 1.0000	Color: Silver
Standards: AISI 302; ASTM A313; ASTM A228	Hole Diameter (Inch): 1/4
UNSPSC Code: 31161904	Country of Origin: UNITED STATES
Outside Diameter (Decimal Inch): 0.2400
Free Length (Inch): 1
Spring Rate: 48.0000
End Type: Ground; Closed
Maximum Work Load (N): 84.52
Maximum Work Load (Lb.): 18.0000
Material: Music Wire
Finish: Plain
Wire Size (Decimal Inch): 0.0421
Hole Diameter (Decimal Inch): 0.2500
Spring Type: Precision
Solid Height (Decimal Inch): 0.6210
Free Length (Decimal Inch): 1.0000
Color: Silver
Standards: AISI 302; ASTM A313; ASTM A228
Hole Diameter (Inch): 1/4
UNSPSC Code: 31161904
Country of Origin: UNITED STATES

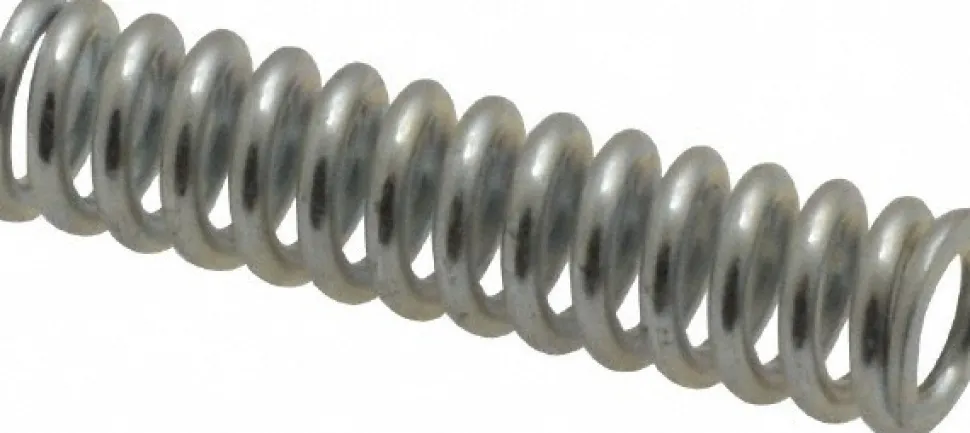

Precision Compression Spring: 0.2400″ OD, 1″ Free Length

Specifications
