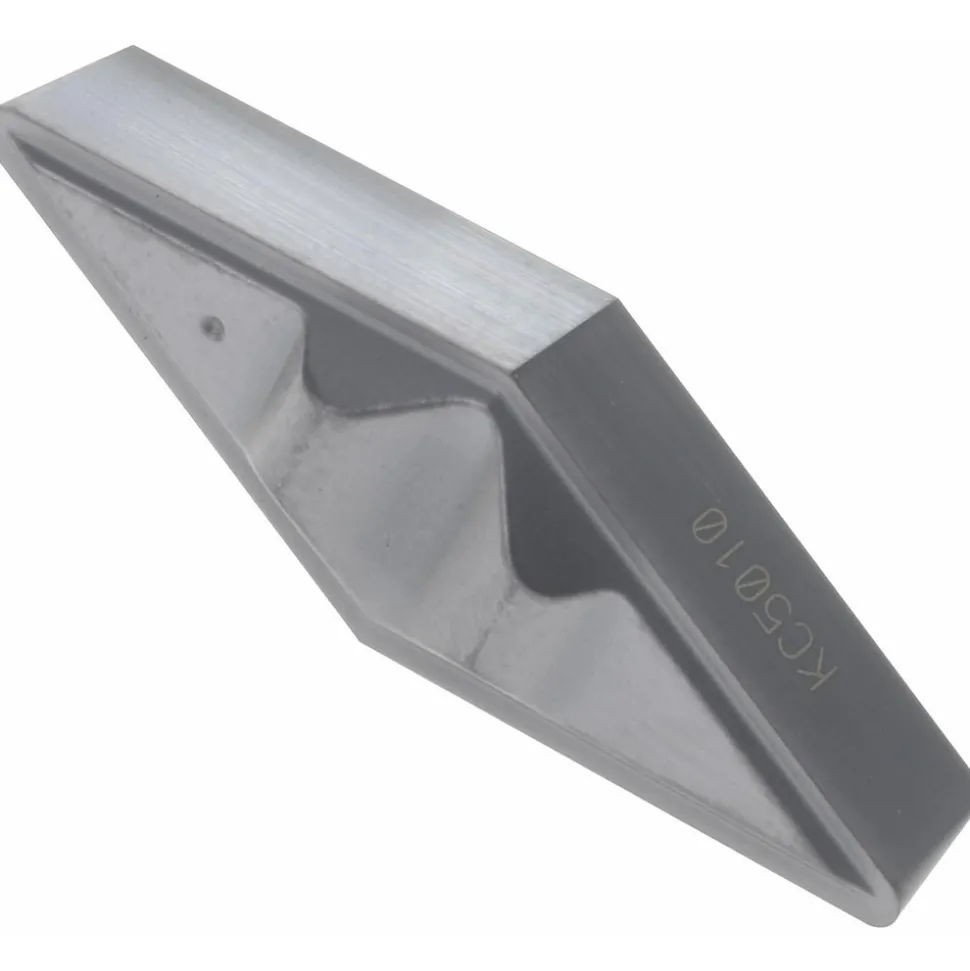

Profiling Insert: VPGR332 KC5010, Carbide
Original price was: 41,00 $.28,89 $Current price is: 28,89 $.
Specifications
| Insert Style: VPGR | Insert Size Code: 332 |
| Insert Material: Carbide | Material Grade: H10; K20; M20; K10; N10; M10; N20; P10; K15; P20; S20; K05; S10 |
| Width (Inch): 3/8 | Manufacturer Grade: KC5010 |
| Thickness (Inch): 3/16 | Insert Height (Decimal Inch): 0.1875 |
| Thickness (mm): 4.76 | Maximum Depth of Cut (Decimal Inch): 0.2180 |
| Insert Holding Method: Clamp | Insert Hand: Neutral |
| Corner Radius (Decimal Inch): 0.0312 | Corner Radius (mm): 0.79 |
| Included Angle: 35.00 | Relief Angle: 8.000 |
| Chipbreaker: Common | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Inscribed Circle (mm): 9.53 |
| Series: Top Not | Coating Process: PVD |
| Rake: Positive | Insert Length (Decimal Inch): 0.6540 |
| Number Of Cutting Edges: 2 | Hole Diameter (Decimal Inch): 0.0000 |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; H; K; M; N |
| Iso Code: VCGR160408 | Standards: VPGR332; VCGR160408 |
| Rake Angle: 10.000 | Side Length (Decimal Inch): 0.6540 |
| Side Length (mm): 16.61 | Shape: Parallelogram |
| Applications: Profiling; Turning | MSC/Manufacturer Number: VPGR332 |
| Coating Classification: PVD | Coating/Finish: AlTiN |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | Width (Decimal Inch – 4 Decimals): 0.3750 |
| UNSPSC Code: 23242105 | Country of Origin: UNITED STATES |
| Insert Style: VPGR | |
| Insert Size Code: 332 | |
| Insert Material: Carbide | |
| Material Grade: H10; K20; M20; K10; N10; M10; N20; P10; K15; P20; S20; K05; S10 | |
| Width (Inch): 3/8 | |
| Manufacturer Grade: KC5010 | |
| Thickness (Inch): 3/16 | |
| Insert Height (Decimal Inch): 0.1875 | |
| Thickness (mm): 4.76 | |
| Maximum Depth of Cut (Decimal Inch): 0.2180 | |
| Insert Holding Method: Clamp | |
| Insert Hand: Neutral | |
| Corner Radius (Decimal Inch): 0.0312 | |
| Corner Radius (mm): 0.79 | |
| Included Angle: 35.00 | |
| Relief Angle: 8.000 | |
| Chipbreaker: Common | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Inscribed Circle (mm): 9.53 | |
| Series: Top Not | |
| Coating Process: PVD | |
| Rake: Positive | |
| Insert Length (Decimal Inch): 0.6540 | |
| Number Of Cutting Edges: 2 | |
| Hole Diameter (Decimal Inch): 0.0000 | |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Iso Code: VCGR160408 | |
| Standards: VPGR332; VCGR160408 | |
| Rake Angle: 10.000 | |
| Side Length (Decimal Inch): 0.6540 | |
| Side Length (mm): 16.61 | |
| Shape: Parallelogram | |
| Applications: Profiling; Turning | |
| MSC/Manufacturer Number: VPGR332 | |
| Coating Classification: PVD | |
| Coating/Finish: AlTiN | |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| UNSPSC Code: 23242105 | |
| Country of Origin: UNITED STATES |
| MSC# | 03258506 |
| Mfr# | 1849302 |
| Big Book# | 919 |
