Fitting Type: Union	Connection Type: Push-to-Connect x Push-to-Connect
Material: Nickel-Plated Brass	Color: Silver
Tube Outside Diameter: 1/4	Minimum Work Temperature (F): 0
Standards: SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3	For Use With: Air Lines; Inert Gases; Oil Lines; Vacuum Lines
Special Item Information: Button is black flame resistant material that is compliant with the UL94 V-0, flame resistant standard	Vacuum Rating: 28 in-Hg
O Ring Material: Nitrile	Maximum Work Temperature (F): 200
Overall Length (Decimal Inch): 1.4300	UNSPSC Code: 27121700
Product Service Code: 4720	Country of Origin: UNITED STATES
Fitting Type: Union
Connection Type: Push-to-Connect x Push-to-Connect
Material: Nickel-Plated Brass
Color: Silver
Tube Outside Diameter: 1/4
Minimum Work Temperature (F): 0
Standards: SAE J2494; D.O.T. FMVSS571.106; SAE J844; SAE J2494-3
For Use With: Air Lines; Inert Gases; Oil Lines; Vacuum Lines
Special Item Information: Button is black flame resistant material that is compliant with the UL94 V-0, flame resistant standard
Vacuum Rating: 28 in-Hg
O Ring Material: Nitrile
Maximum Work Temperature (F): 200
Overall Length (Decimal Inch): 1.4300
UNSPSC Code: 27121700
Product Service Code: 4720
Country of Origin: UNITED STATES

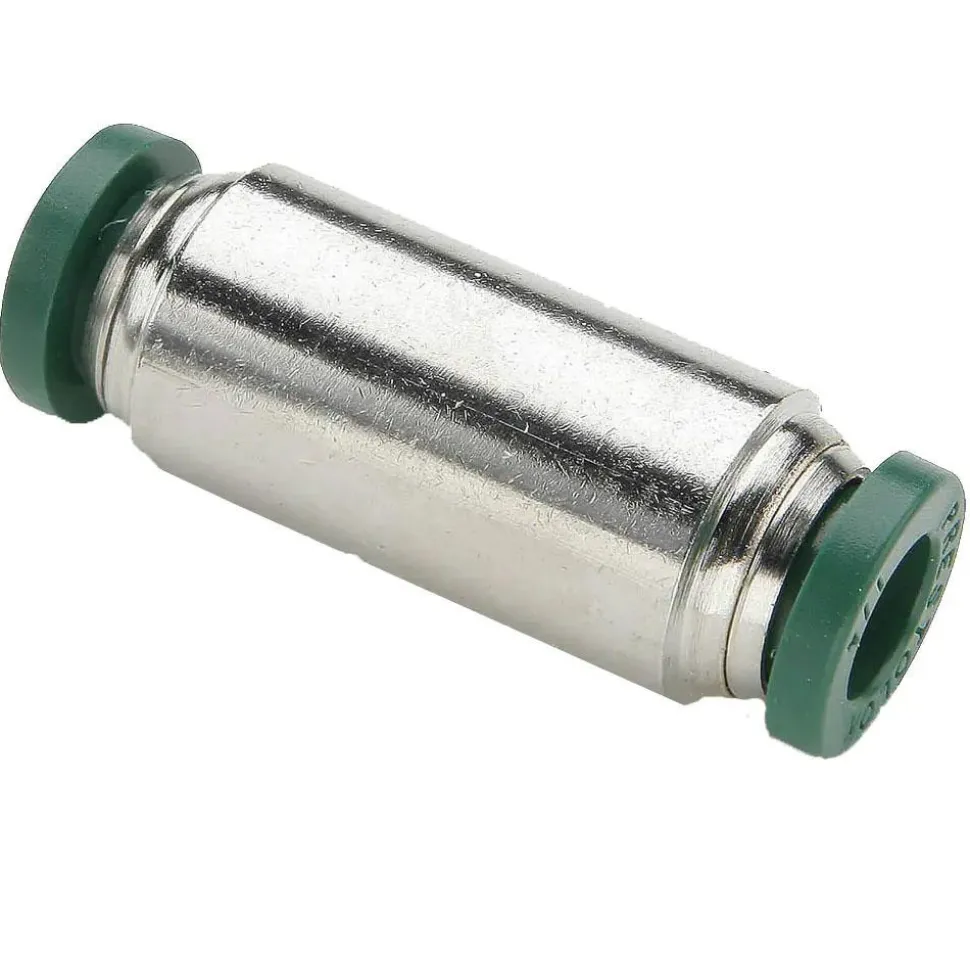

Push-to-Connect Push-to-Connect x Push-to-Connect Fitting: Union, 1/4″ OD

Specifications
