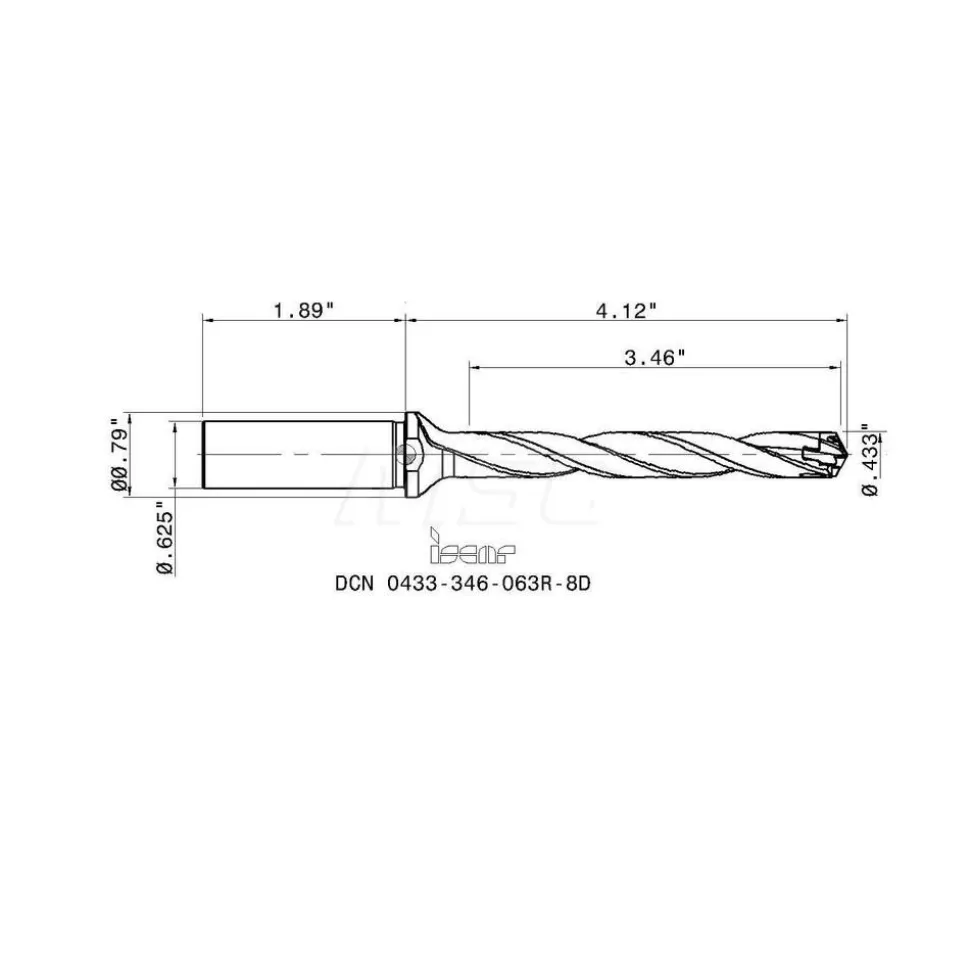

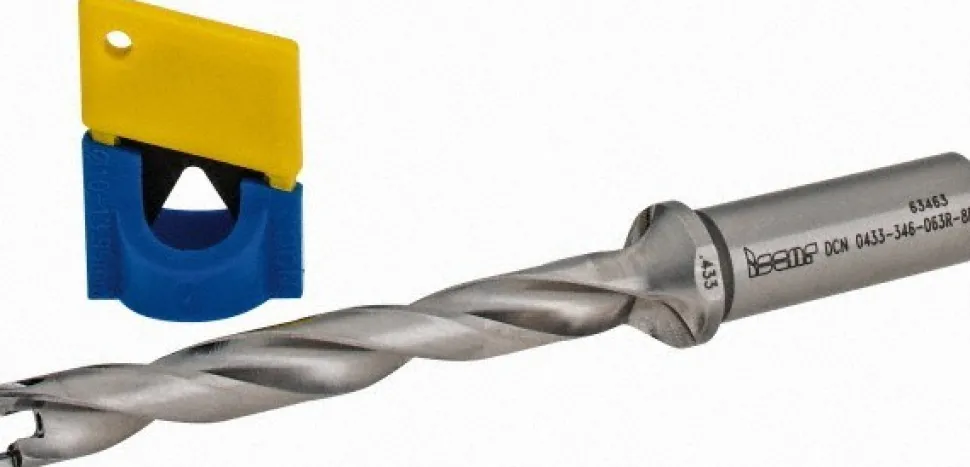

Replaceable-Tip Drill: 0.433 to 0.469″ Dia, 3.46″ Max Depth, 5/8″ Straight-Cylindrical Shank
Original price was: 383,00 $.128,89 $Current price is: 128,89 $.
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.4330 | Maximum Drill Diameter (Decimal Inch): 0.4690 |
| Drill Depth by Diameter Ratio: 8xD | Maximum Drill Depth (Decimal Inch): 3.4600 |
| Shank Type: Straight-Cylindrical | Shank Diameter (Inch): 5/8 |
| Shank Diameter (Decimal Inch): 0.6250 | Insert Seat Size: 11 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 6.0100 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.4330 | |
| Maximum Drill Diameter (Decimal Inch): 0.4690 | |
| Drill Depth by Diameter Ratio: 8xD | |
| Maximum Drill Depth (Decimal Inch): 3.4600 | |
| Shank Type: Straight-Cylindrical | |
| Shank Diameter (Inch): 5/8 | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Insert Seat Size: 11 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 6.0100 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 91321208 |
| Mfr# | 3202717 |
