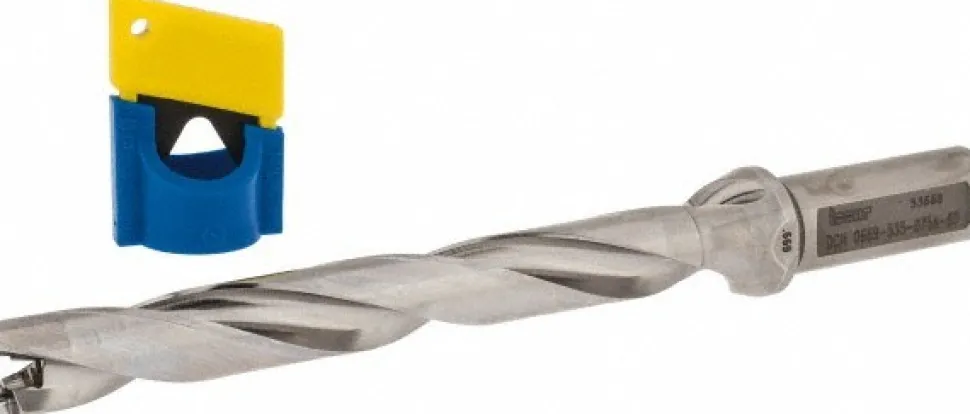

Replaceable-Tip Drill: 0.669 to 0.705″ Dia, 5.35″ Max Depth, 3/4″ Weldon Flat Shank
124,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.6690 | Maximum Drill Diameter (Decimal Inch): 0.7050 |
| Drill Depth by Diameter Ratio: 8xD | Maximum Drill Depth (Decimal Inch): 5.3500 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Insert Seat Size: 17 |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | Overall Length (Decimal Inch): 8.3800 |
| Series: SumoCham | Toolholder Style: DCN |
| Standards: ISO 13399 | Coolant Through: Yes |
| UNSPSC Code: 23291502 | Country of Origin: Israel |
| Minimum Drill Diameter (Decimal Inch): 0.6690 | |
| Maximum Drill Diameter (Decimal Inch): 0.7050 | |
| Drill Depth by Diameter Ratio: 8xD | |
| Maximum Drill Depth (Decimal Inch): 5.3500 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Insert Seat Size: 17 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP | |
| Overall Length (Decimal Inch): 8.3800 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 45391646 |
| Mfr# | 3202485 |
