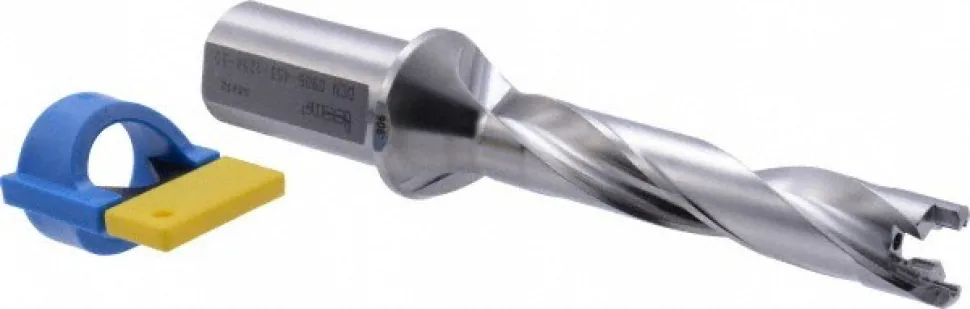

Replaceable-Tip Drill: 0.906 to 0.941″ Dia, 4.53″ Max Depth, 1-1/4″ Weldon Flat Shank
136,99 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.9060 | Maximum Drill Diameter (Decimal Inch): 0.9410 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 4.5300 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 1-1/4 |
| Shank Diameter (Decimal Inch): 1.2500 | Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP |
| Overall Length (Decimal Inch): 8.3200 | Series: SumoCham |
| Toolholder Style: DCN | Standards: ISO 13399 |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: Israel | |
| Minimum Drill Diameter (Decimal Inch): 0.9060 | |
| Maximum Drill Diameter (Decimal Inch): 0.9410 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 4.5300 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1-1/4 | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Compatible Insert Style: ICK; iCP-2M; FCP; ICM; ICK-2M; ICP | |
| Overall Length (Decimal Inch): 8.3200 | |
| Series: SumoCham | |
| Toolholder Style: DCN | |
| Standards: ISO 13399 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: Israel |
| MSC# | 63105779 |
| Mfr# | 3201742 |
