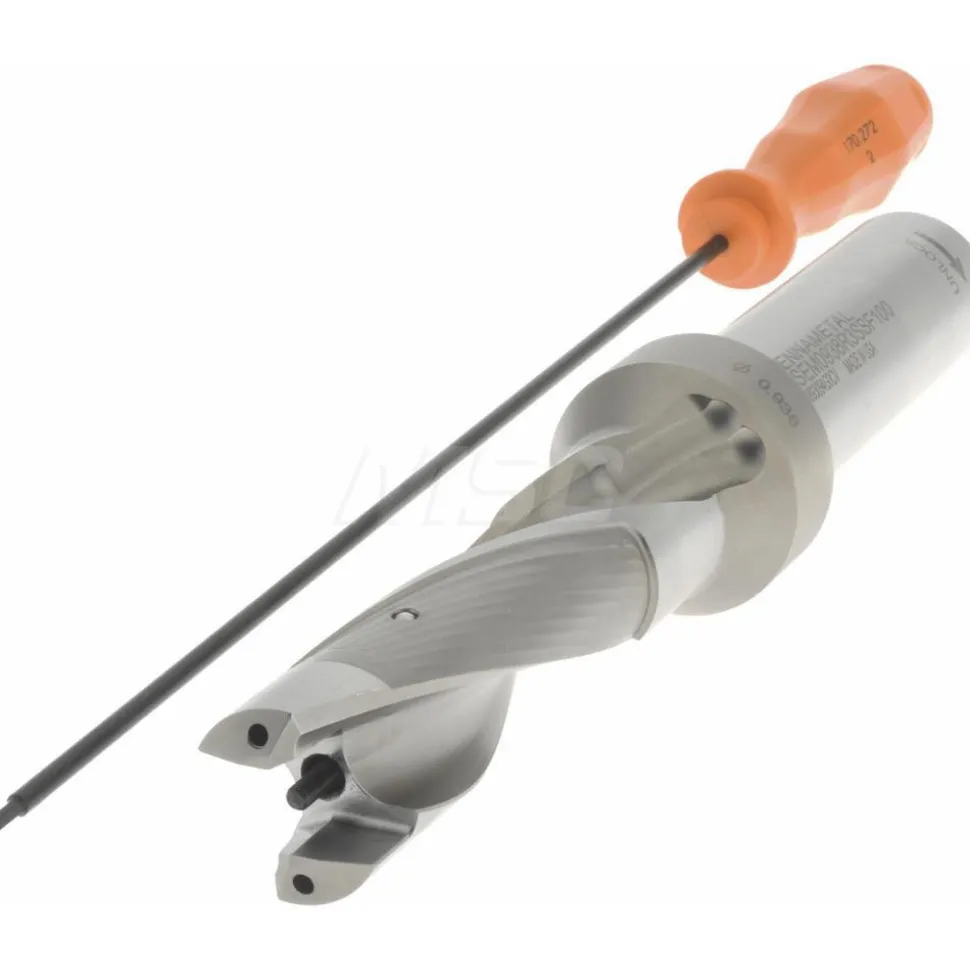

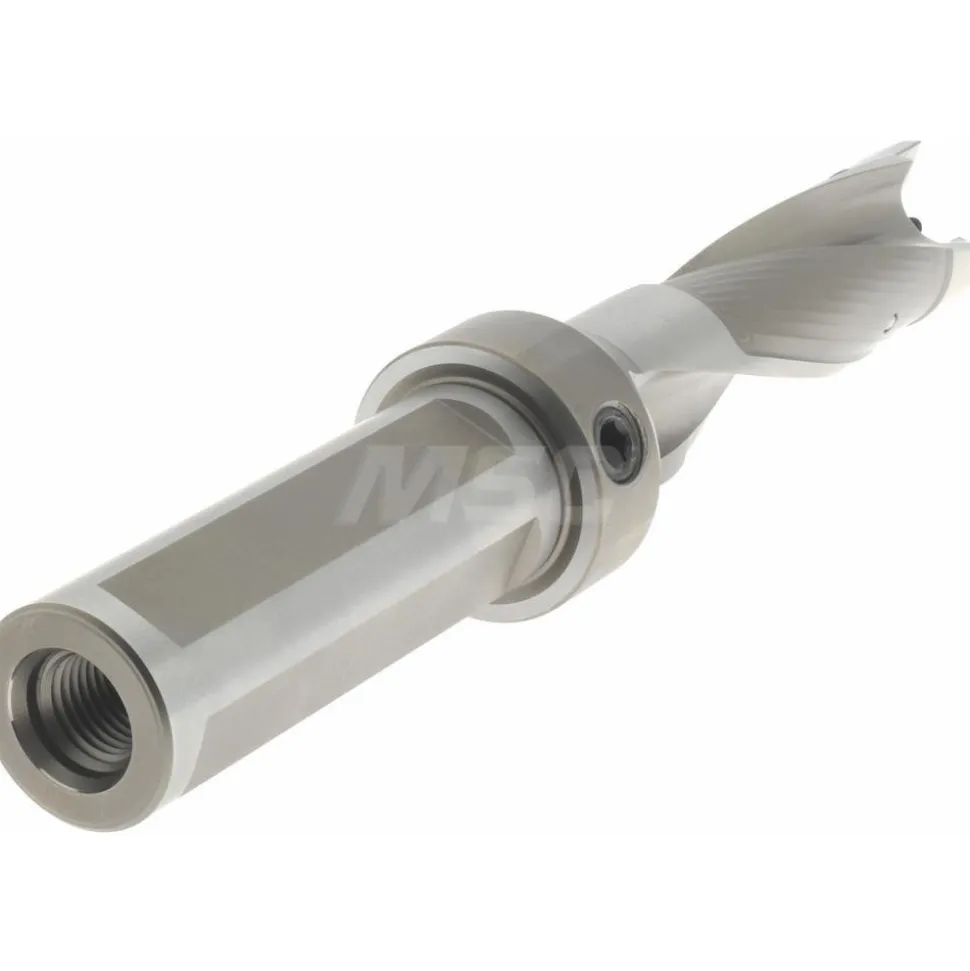

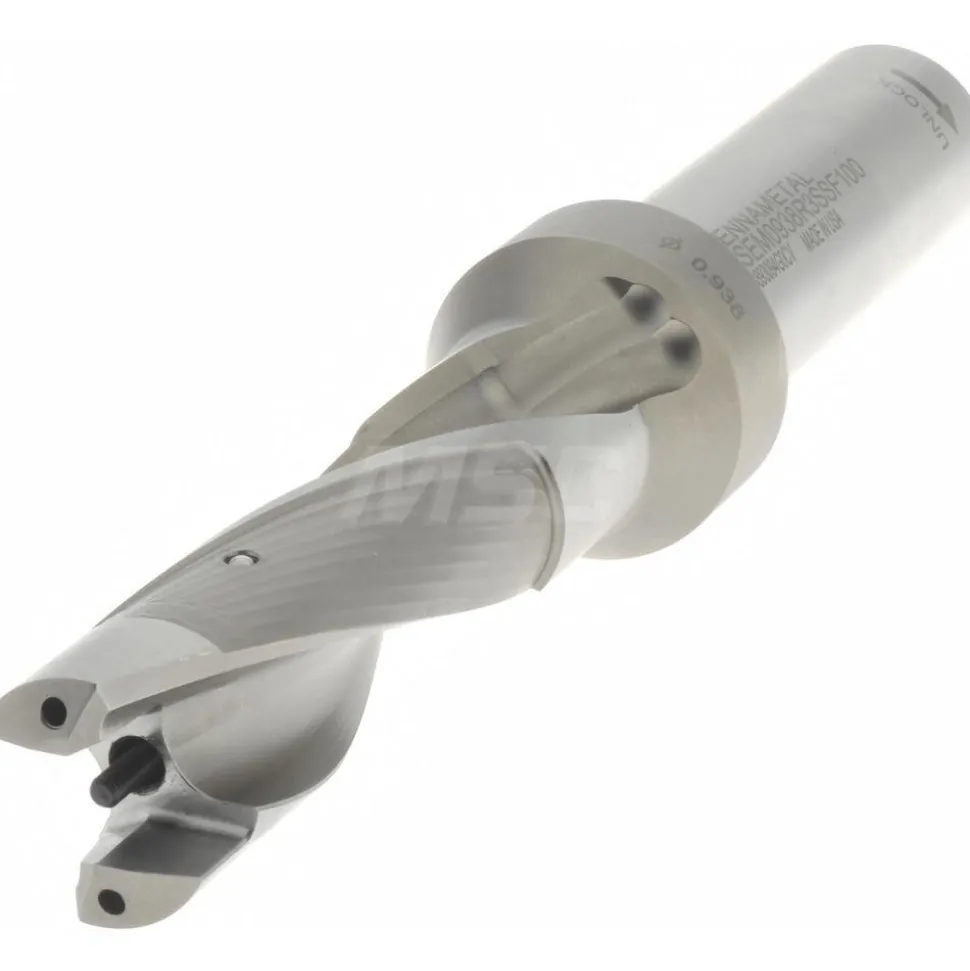

Replaceable-Tip Drill: 23.81 to 24 mm Dia, 72 mm Max Depth, 25.4 mm Weldon Flat Shank
Original price was: 605,00 $.122,89 $Current price is: 122,89 $.
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.9374 | Minimum Drill Diameter (mm): 23.81 |
| Maximum Drill Diameter (mm): 24.00 | Maximum Drill Diameter (Decimal Inch): 0.9449 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (mm): 72.00 |
| Maximum Drill Depth (Decimal Inch): 2.8300 | Shank Type: Weldon Flat |
| Insert Seat Size: 4 | Shank Diameter (mm): 25.40 |
| Compatible Insert Style: KSEM0938 | Overall Length (mm): 196.85 |
| Overall Length (Decimal Inch): 7.7500 | Series: KSEM |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 0.9374 | |
| Minimum Drill Diameter (mm): 23.81 | |
| Maximum Drill Diameter (mm): 24.00 | |
| Maximum Drill Diameter (Decimal Inch): 0.9449 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (mm): 72.00 | |
| Maximum Drill Depth (Decimal Inch): 2.8300 | |
| Shank Type: Weldon Flat | |
| Insert Seat Size: 4 | |
| Shank Diameter (mm): 25.40 | |
| Compatible Insert Style: KSEM0938 | |
| Overall Length (mm): 196.85 | |
| Overall Length (Decimal Inch): 7.7500 | |
| Series: KSEM | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 02734739 |
| Mfr# | 1505119 |
| Big Book# | 166 |
