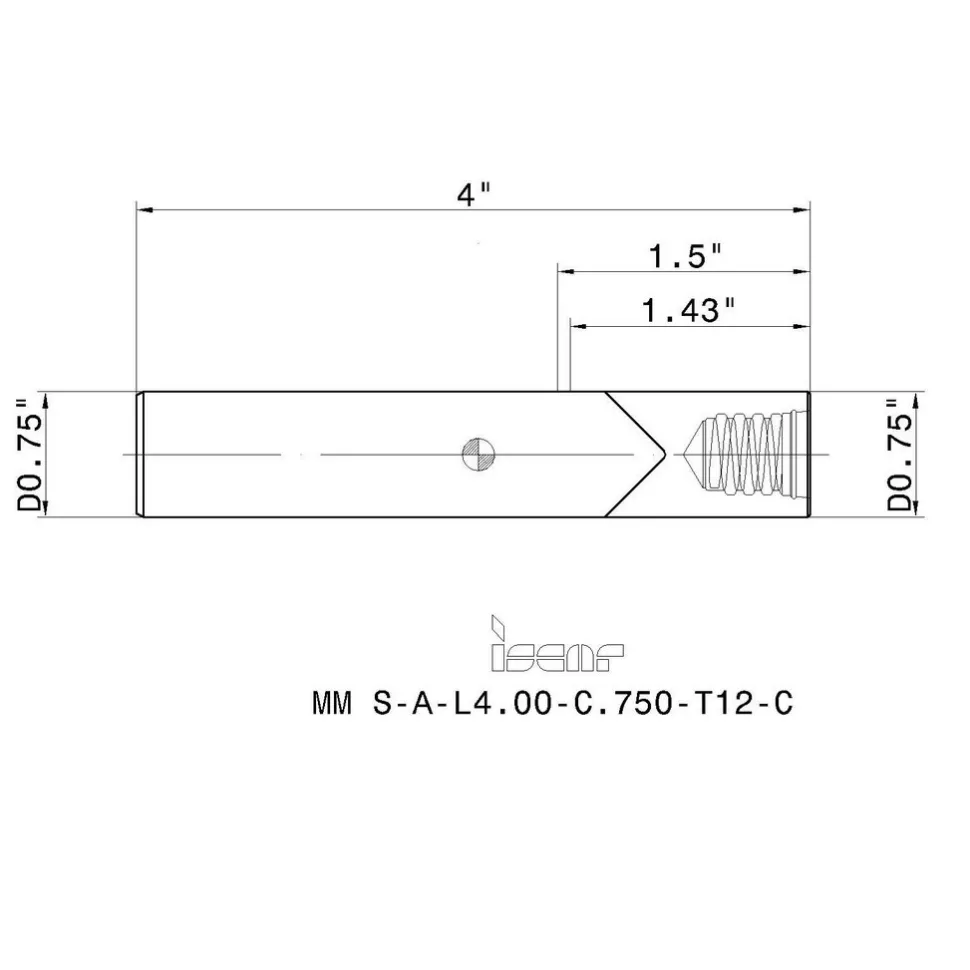

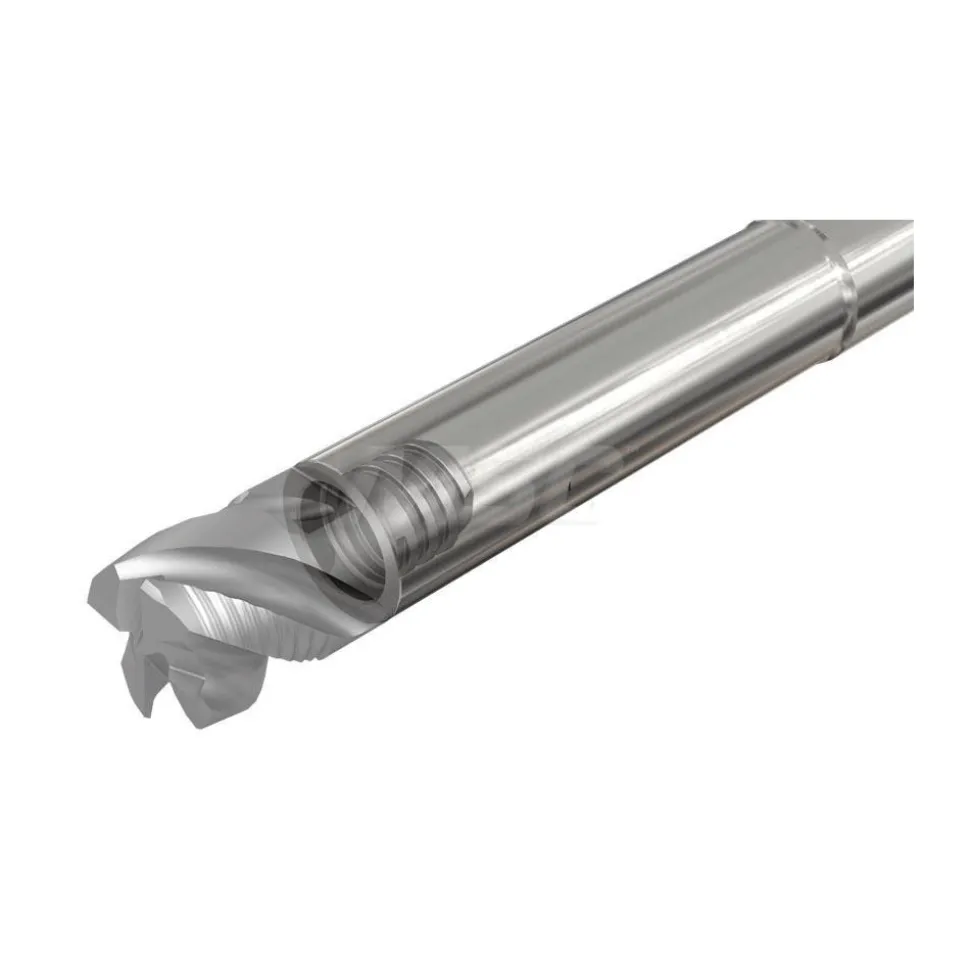

Replaceable Tip Milling Shank: Series Multimaster, 1-1/2″ Projection, 3/4″ 90 ° Stepped Shank
120,99 $
Specifications
| Shank Type: 90 Degree Stepped | Shank Diameter (Decimal Inch): 0.7500 |
| Shank Diameter (Inch): 3/4 | Neck Thread Size: T12 |
| Overall Length (Decimal Inch): 4.0000 | Shank Shape: Straight |
| Tool Material: Solid Carbide | Neck Diameter (Decimal Inch): 0.7200 |
| Coolant Through: No | Toolholder Style: MM S-A |
| Series: Multimaster | Head Length (Decimal Inch): 1.4300 |
| Maximum Diameter (Decimal Inch): 0.7500 | Tool Application: Milling |
| Weldon Flat: No | Effective Length (Decimal Inch): 1.5000 |
| Milling Tip Style: BCM-MM; HM90 E90A-MM-10; MM ERS; MM HCD; MM HBR; HCM-MM; MM EB; MM EC-4; HCE-MM; HP E90AN-MM-07 | Manufacturers Catalog Number: MM S-A-L4.00-C.750-T12-C |
| Projection (Decimal Inch): 1.5000 | UNSPSC Code: 23291600 |
| Country of Origin: Israel | |
| Shank Type: 90 Degree Stepped | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Neck Thread Size: T12 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Shank Shape: Straight | |
| Tool Material: Solid Carbide | |
| Neck Diameter (Decimal Inch): 0.7200 | |
| Coolant Through: No | |
| Toolholder Style: MM S-A | |
| Series: Multimaster | |
| Head Length (Decimal Inch): 1.4300 | |
| Maximum Diameter (Decimal Inch): 0.7500 | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| Effective Length (Decimal Inch): 1.5000 | |
| Milling Tip Style: BCM-MM; HM90 E90A-MM-10; MM ERS; MM HCD; MM HBR; HCM-MM; MM EB; MM EC-4; HCE-MM; HP E90AN-MM-07 | |
| Manufacturers Catalog Number: MM S-A-L4.00-C.750-T12-C | |
| Projection (Decimal Inch): 1.5000 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Israel |
| MSC# | 02128494 |
| Mfr# | 3103842 |
| Big Book# | 702 |
