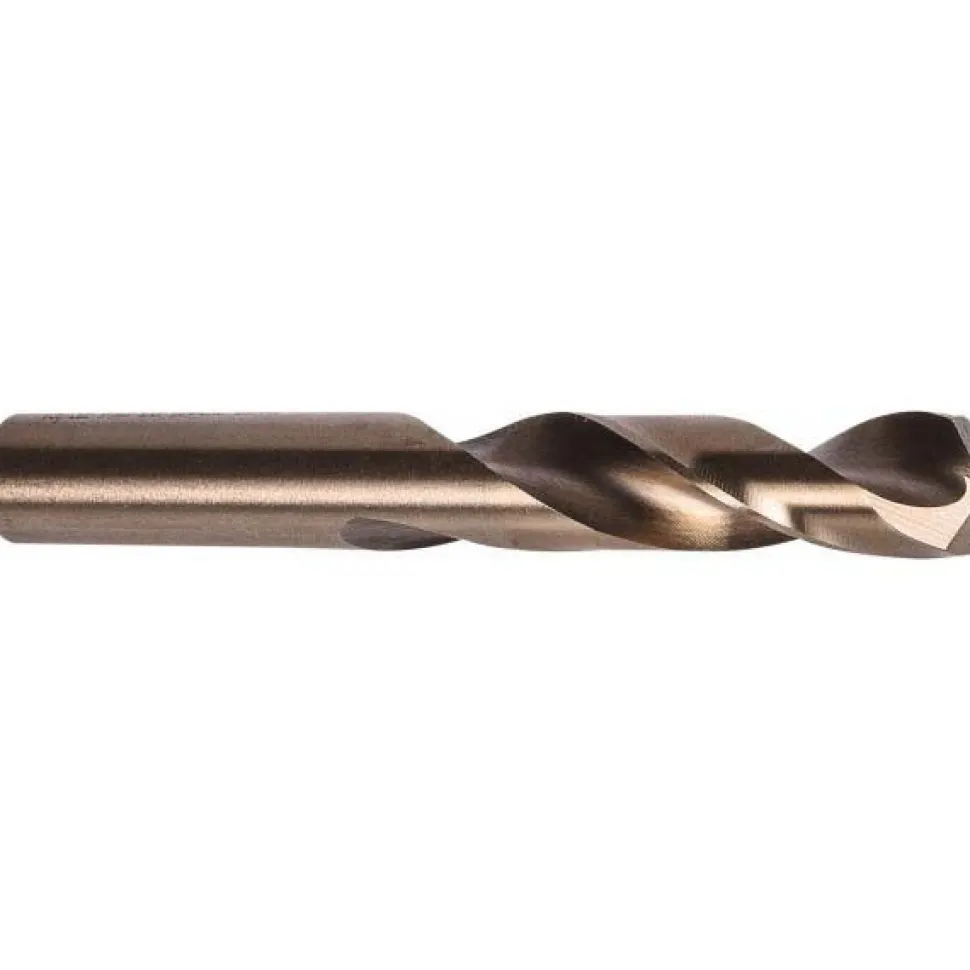

Screw Machine Drill Bit: 1/8″ (0.1250) Dia, 135 deg, Cobalt
2,99 $
Specifications
| Drill Bit Size (Inch): 1/8 | Drill Bit Size (Decimal Inch): 0.1250 |
| Tool Material: Cobalt | Cutting Direction: Right Hand |
| Coating/Finish: Straw | Number Of Flutes: 2 |
| Spiral Type: Regular | Flute Type: Regular Spiral |
| Flute Length (Decimal Inch): 0.8750 | Drill Point Angle: 135 |
| Coolant Through: No | Shank Type: Straight |
| Point Type: Split Point | Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Shank Diameter (Decimal Inch): 0.1250 | Overall Length (Inch): 1-7/8 |
| Series: M40CO | Web Thinning: Web-Thinned |
| Proprietary Coating/Finish: Bronze Oxide | Web Configuration: Tapered |
| Drill Length Type: Screw Machine | Flute By Diameter Ratio: 2.5xD |
| Tool Performance: High Performance | Standards: ANSI |
| Flute Length (Inch): 7/8 | Drill Bit Grade: Heavy Duty |
| Drill Bit Size Range (Decimal Inch): 0.1000 to 0.1500 | Specification Designation: ANSI |
| Material Grade: M40 | UNSPSC Code: 23241635 |
| Country of Origin: Brazil | |
| Drill Bit Size (Inch): 1/8 | |
| Drill Bit Size (Decimal Inch): 0.1250 | |
| Tool Material: Cobalt | |
| Cutting Direction: Right Hand | |
| Coating/Finish: Straw | |
| Number Of Flutes: 2 | |
| Spiral Type: Regular | |
| Flute Type: Regular Spiral | |
| Flute Length (Decimal Inch): 0.8750 | |
| Drill Point Angle: 135 | |
| Coolant Through: No | |
| Shank Type: Straight | |
| Point Type: Split Point | |
| Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials | |
| Shank Diameter (Decimal Inch): 0.1250 | |
| Overall Length (Inch): 1-7/8 | |
| Series: M40CO | |
| Web Thinning: Web-Thinned | |
| Proprietary Coating/Finish: Bronze Oxide | |
| Web Configuration: Tapered | |
| Drill Length Type: Screw Machine | |
| Flute By Diameter Ratio: 2.5xD | |
| Tool Performance: High Performance | |
| Standards: ANSI | |
| Flute Length (Inch): 7/8 | |
| Drill Bit Grade: Heavy Duty | |
| Drill Bit Size Range (Decimal Inch): 0.1000 to 0.1500 | |
| Specification Designation: ANSI | |
| Material Grade: M40 | |
| UNSPSC Code: 23241635 | |
| Country of Origin: Brazil |
| MSC# | 78543816 |
| Mfr# | 5996145 |
| Big Book# | 46 |
