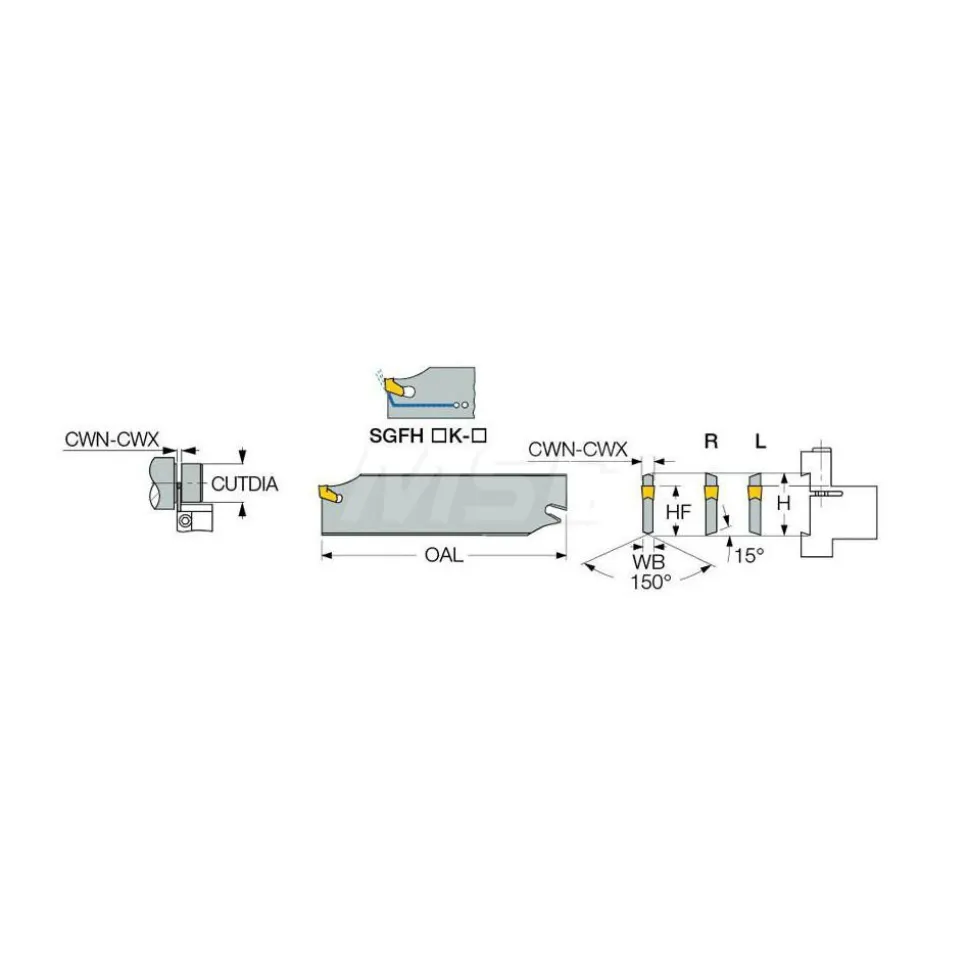

SGFH Double End Right Hand Indexable Cutoff Blade
93,89 $
Specifications
| End Type: Double | Cutting Direction: Right Hand |
| Hand: Right Hand | Blade Height (mm): 19.00 |
| Blade Height (Decimal Inch): 0.7480 | Blade Width (Decimal Inch): 0.0600 |
| Blade Width (mm): 1.60 | Blade Overall Length (Decimal Inch): 3.3858 |
| Blade Overall Length (mm): 86.00 | Blade Style: SGFH |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 1.5000 |
| Maximum Workpiece Diameter (Inch): 1-1/2 | Series: Self Grip |
| Cutting Tool Application: Grooving; Turning; Parting | Insert Width (mm): 2.00 |
| Standards: ISO 13399 | Cutting Height (mm): 15.70 |
| Cutting Height (Decimal Inch): 0.6181 | Minimum Insert Width (Decimal Inch): 0.0709 |
| Minimum Insert Width (mm): 1.80 | Maximum Insert Width (mm): 2.69 |
| Maximum Insert Width (Decimal Inch): 0.1059 | Complete Insert Compatibility: GF.. 2.4; GF.. 2.. |
| Manufacturers Catalog Number: SGFH 19-2 | Insert Width: 0.0787 |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| End Type: Double | |
| Cutting Direction: Right Hand | |
| Hand: Right Hand | |
| Blade Height (mm): 19.00 | |
| Blade Height (Decimal Inch): 0.7480 | |
| Blade Width (Decimal Inch): 0.0600 | |
| Blade Width (mm): 1.60 | |
| Blade Overall Length (Decimal Inch): 3.3858 | |
| Blade Overall Length (mm): 86.00 | |
| Blade Style: SGFH | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 1.5000 | |
| Maximum Workpiece Diameter (Inch): 1-1/2 | |
| Series: Self Grip | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 2.00 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 15.70 | |
| Cutting Height (Decimal Inch): 0.6181 | |
| Minimum Insert Width (Decimal Inch): 0.0709 | |
| Minimum Insert Width (mm): 1.80 | |
| Maximum Insert Width (mm): 2.69 | |
| Maximum Insert Width (Decimal Inch): 0.1059 | |
| Complete Insert Compatibility: GF.. 2.4; GF.. 2.. | |
| Manufacturers Catalog Number: SGFH 19-2 | |
| Insert Width: 0.0787 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 60820883 |
| Mfr# | 2300509 |
| Big Book# | 896 |
