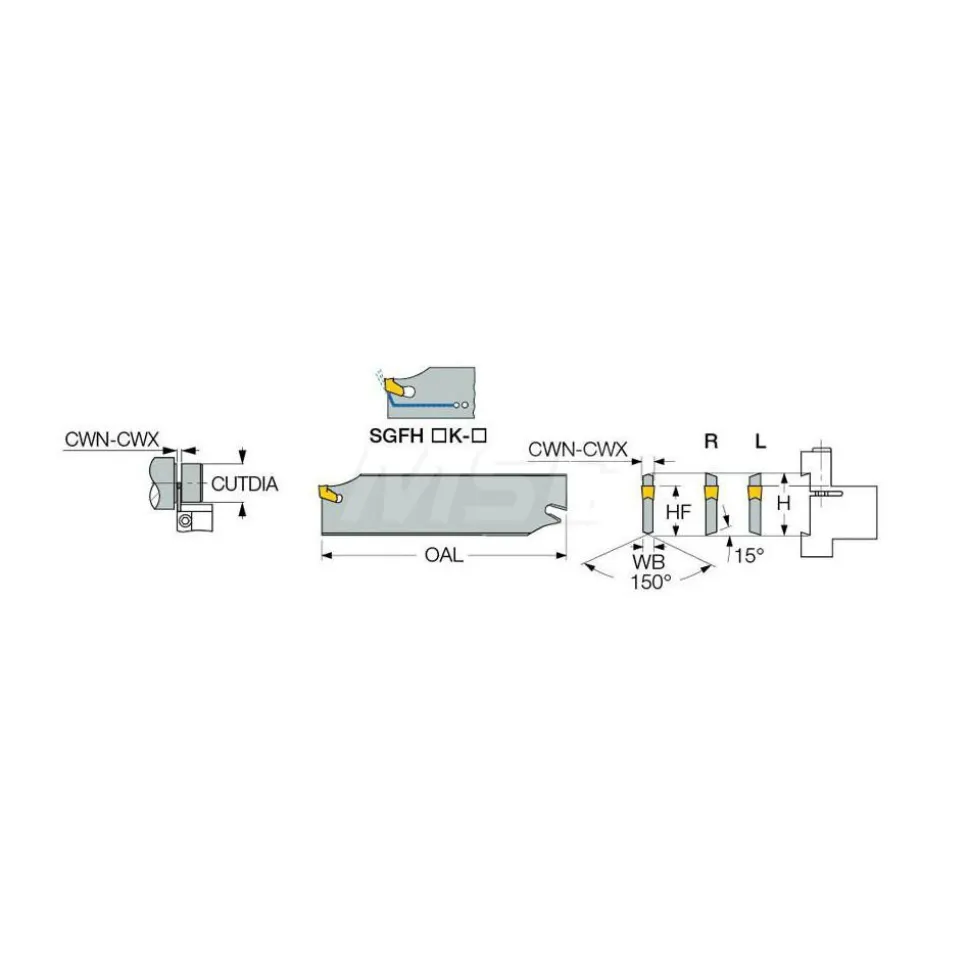

SGFH Double End Right Hand Indexable Cutoff Blade
107,89 $
Specifications
| End Type: Double | Cutting Direction: Right Hand |
| Hand: Right Hand | Blade Height (mm): 26.00 |
| Blade Height (Decimal Inch): 1.0236 | Blade Width (Decimal Inch): 0.0900 |
| Blade Width (mm): 2.40 | Blade Overall Length (Decimal Inch): 4.3307 |
| Blade Overall Length (mm): 110.00 | Blade Style: SGFH |
| Insert Holding Method: Self Grip | Maximum Workpiece Diameter (Decimal Inch): 2.9500 |
| Series: Self Grip | Insert Style: GF.. 3 |
| Cutting Tool Application: Grooving; Turning; Parting | Insert Width (mm): 3.00 |
| Standards: ISO 13399 | Cutting Height (mm): 21.40 |
| Cutting Height (Decimal Inch): 0.8425 | Minimum Insert Width (Decimal Inch): 0.1063 |
| Minimum Insert Width (mm): 2.70 | Maximum Insert Width (mm): 3.53 |
| Maximum Insert Width (Decimal Inch): 0.1390 | Manufacturers Catalog Number: SGFH 26-3 |
| Insert Width: 0.1181 | UNSPSC Code: 23241600 |
| Country of Origin: Israel | |
| End Type: Double | |
| Cutting Direction: Right Hand | |
| Hand: Right Hand | |
| Blade Height (mm): 26.00 | |
| Blade Height (Decimal Inch): 1.0236 | |
| Blade Width (Decimal Inch): 0.0900 | |
| Blade Width (mm): 2.40 | |
| Blade Overall Length (Decimal Inch): 4.3307 | |
| Blade Overall Length (mm): 110.00 | |
| Blade Style: SGFH | |
| Insert Holding Method: Self Grip | |
| Maximum Workpiece Diameter (Decimal Inch): 2.9500 | |
| Series: Self Grip | |
| Insert Style: GF.. 3 | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Insert Width (mm): 3.00 | |
| Standards: ISO 13399 | |
| Cutting Height (mm): 21.40 | |
| Cutting Height (Decimal Inch): 0.8425 | |
| Minimum Insert Width (Decimal Inch): 0.1063 | |
| Minimum Insert Width (mm): 2.70 | |
| Maximum Insert Width (mm): 3.53 | |
| Maximum Insert Width (Decimal Inch): 0.1390 | |
| Manufacturers Catalog Number: SGFH 26-3 | |
| Insert Width: 0.1181 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 60820982 |
| Mfr# | 2300514 |
| Big Book# | 896 |
