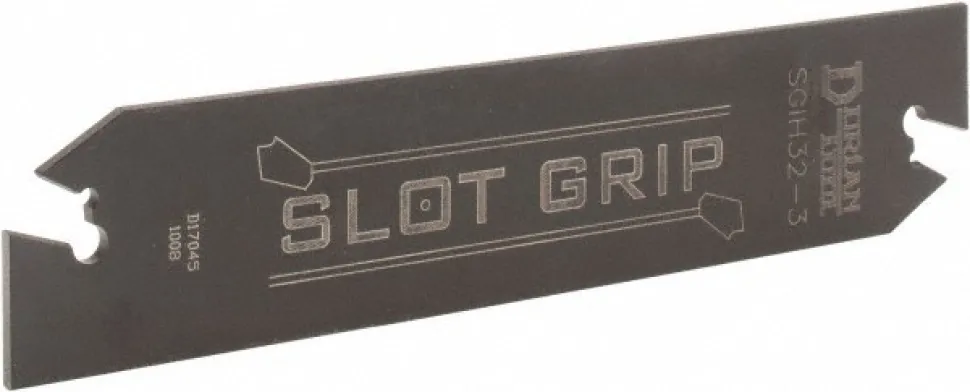

SGIH Double End Neutral Indexable Cutoff Blade

116,99 $

Specifications

End Type: Double	Cutting Direction: Neutral
Hand: Left Hand; Right Hand	Blade Height (mm): 31.80
Blade Height (Decimal Inch): 1.2520	Blade Width (Decimal Inch): 0.0900
Blade Width (mm): 2.39	Blade Overall Length (Decimal Inch): 5.9016
Blade Overall Length (mm): 149.90	Blade Style: SGIH
Compatible Insert Style: SGT (N/R/L)	Compatible Insert Size Code: 5
Maximum Workpiece Diameter (Decimal Inch): 3.9370	Series: Slot Grip
Cutting Tool Application: Grooving; Cut-Off	Insert Width (mm): 3.00
Cutting Height (mm): 25.00	Cutting Height (Decimal Inch): 0.9843
Minimum Insert Width (mm): 3.00	Maximum Insert Width (mm): 3.00
Maximum Insert Width (Decimal Inch): 0.1181	Manufacturers Catalog Number: SGIH32-3
UNSPSC Code: 23241600	Country of Origin: UNITED STATES
End Type: Double
Cutting Direction: Neutral
Hand: Left Hand; Right Hand
Blade Height (mm): 31.80
Blade Height (Decimal Inch): 1.2520
Blade Width (Decimal Inch): 0.0900
Blade Width (mm): 2.39
Blade Overall Length (Decimal Inch): 5.9016
Blade Overall Length (mm): 149.90
Blade Style: SGIH
Compatible Insert Style: SGT (N/R/L)
Compatible Insert Size Code: 5
Maximum Workpiece Diameter (Decimal Inch): 3.9370
Series: Slot Grip
Cutting Tool Application: Grooving; Cut-Off
Insert Width (mm): 3.00
Cutting Height (mm): 25.00
Cutting Height (Decimal Inch): 0.9843
Minimum Insert Width (mm): 3.00
Maximum Insert Width (mm): 3.00
Maximum Insert Width (Decimal Inch): 0.1181
Manufacturers Catalog Number: SGIH32-3
UNSPSC Code: 23241600
Country of Origin: UNITED STATES
