Sale!

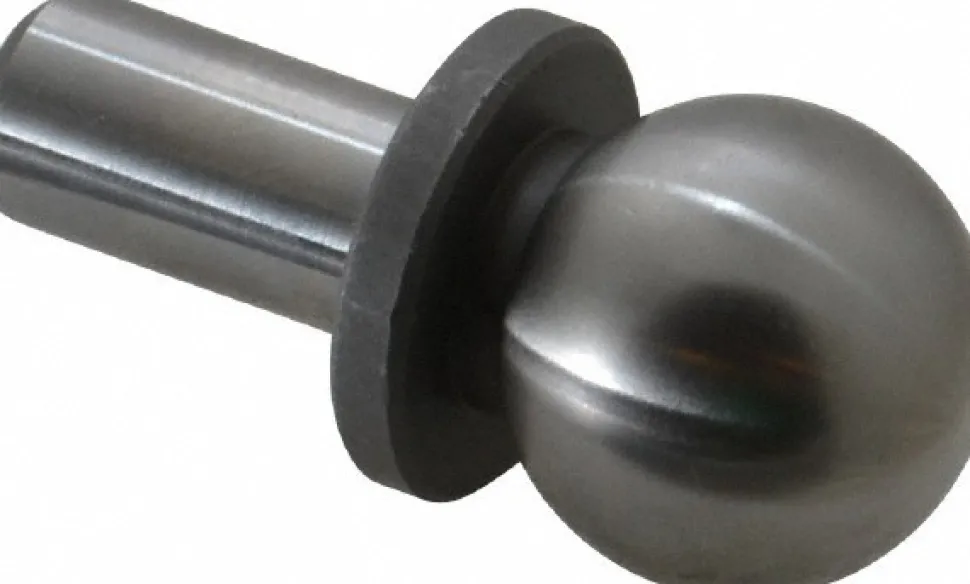

Shoulder Tooling Ball: Inspection, 3/4″ Ball Dia, 3/8″ Shank Dia, Slip-Fit
Original price was: 70,00 $.47,89 $Current price is: 47,89 $.
Specifications
| Tooling Ball Style: Inspection | Shoulder: Yes |
| Breakaway: No | Tapped Shank: No |
| Heat-treated: Yes | Material: Steel |
| Shank Diameter (Inch): 3/8 | Shank Diameter (Decimal Inch): 0.3750 |
| Shank Diameter (mm): 9.53 | Shank Diameter: 0.3465 |
| Shank Attachment Type: Slip-Fit | Shank Tolerance (Decimal Inch): -0.0004; +0.0000 |
| Ball Diameter (Decimal Inch): 0.7500 | Ball Diameter (Inch): 3/4 |
| Ball Diameter (mm): 19.05 | Ball Center to Shank Bottom (Inch): 1-1/4 |
| Ball Center to Shank Bottom (Decimal Inch): 1.2500 | Ball Tolerance (Decimal Inch): ±0.0002 |
| Shoulder Diameter: 3/4 | Ball Center to Shoulder Bottom (Decimal Inch): 0.5000 |
| Ball Center to Shoulder Tolerance (Decimal Inch): ±0.0002 | Ball and Shank Concentricity (Decimal Inch): 0.0002 |
| UNSPSC Code: 27112818 | Country of Origin: UNITED STATES |
| Tooling Ball Style: Inspection | |
| Shoulder: Yes | |
| Breakaway: No | |
| Tapped Shank: No | |
| Heat-treated: Yes | |
| Material: Steel | |
| Shank Diameter (Inch): 3/8 | |
| Shank Diameter (Decimal Inch): 0.3750 | |
| Shank Diameter (mm): 9.53 | |
| Shank Diameter: 0.3465 | |
| Shank Attachment Type: Slip-Fit | |
| Shank Tolerance (Decimal Inch): -0.0004; +0.0000 | |
| Ball Diameter (Decimal Inch): 0.7500 | |
| Ball Diameter (Inch): 3/4 | |
| Ball Diameter (mm): 19.05 | |
| Ball Center to Shank Bottom (Inch): 1-1/4 | |
| Ball Center to Shank Bottom (Decimal Inch): 1.2500 | |
| Ball Tolerance (Decimal Inch): ±0.0002 | |
| Shoulder Diameter: 3/4 | |
| Ball Center to Shoulder Bottom (Decimal Inch): 0.5000 | |
| Ball Center to Shoulder Tolerance (Decimal Inch): ±0.0002 | |
| Ball and Shank Concentricity (Decimal Inch): 0.0002 | |
| UNSPSC Code: 27112818 | |
| Country of Origin: UNITED STATES |
| MSC# | 99561862 |
| Mfr# | 29045 |
