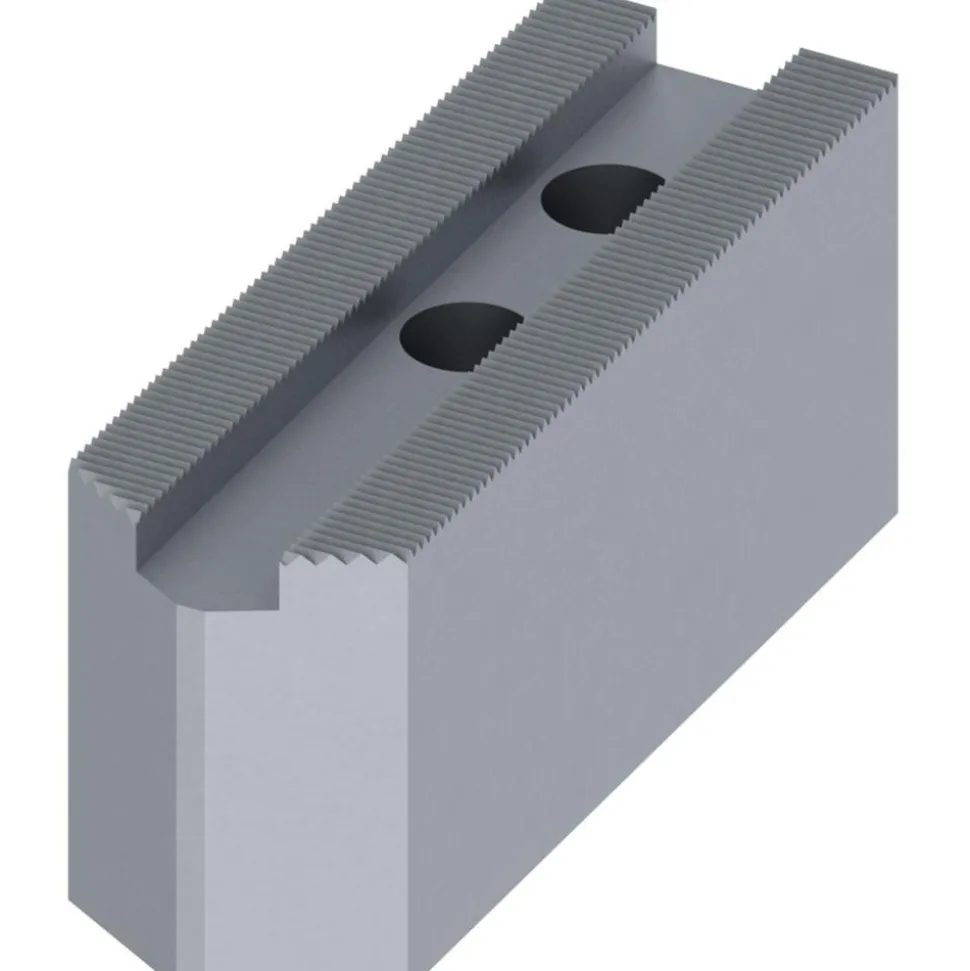

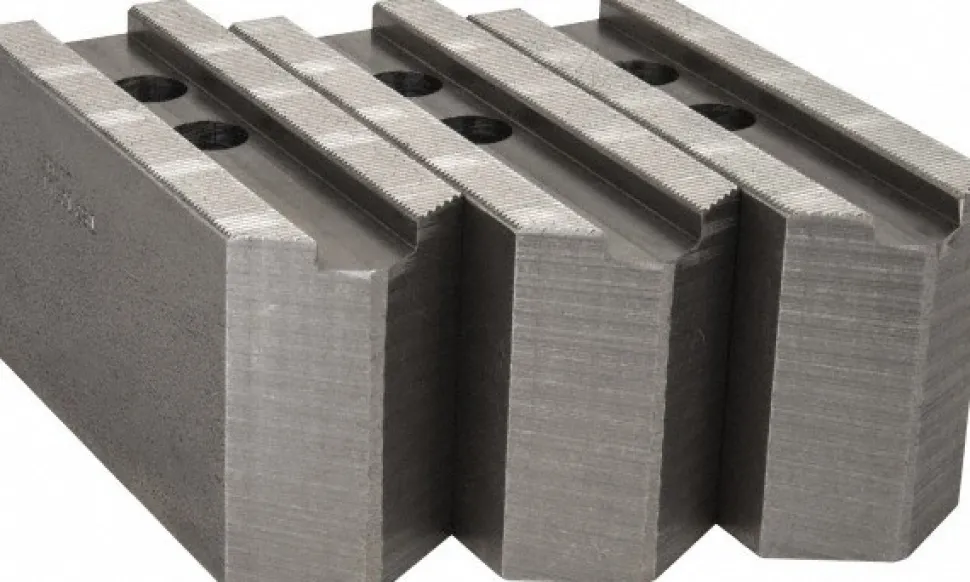

Soft Lathe Chuck Jaw: Serrated

103,99 $

Specifications

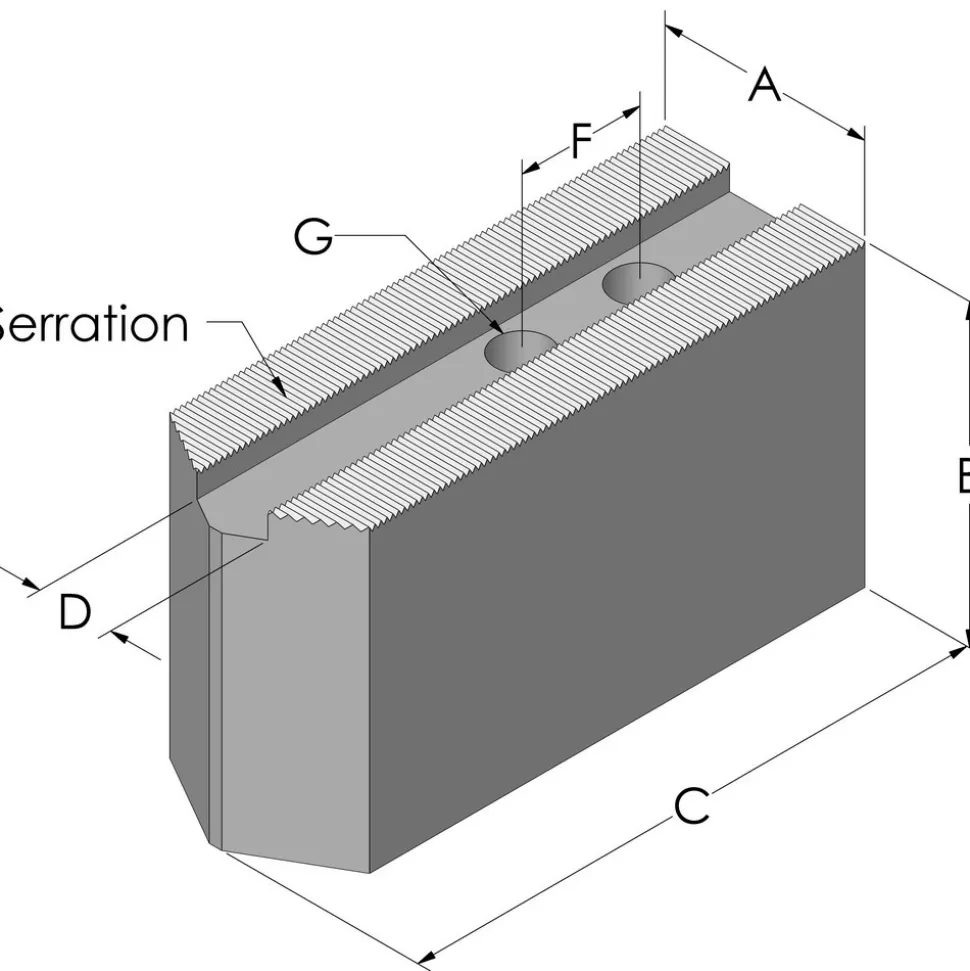

Jaw Shape: Square	Jaw Interface Type: Serrated
Material: Steel	Maximum Compatible Chuck Diameter (mm): 12.00
Maximum Compatible Chuck Diameter (Decimal Inch): 12.0000	Distance Between Mount Hole Centers (Decimal Inch): 1.1811
Distance Between Mount Hole Centers (mm): 30.00	Fastener Size (mm): 16.00
Fastener Size (Decimal Inch): 0.6299	Slot Width (Decimal Inch): 0.8270
Groove Width (mm): 21.00	Groove Width (D) (Decimal Inch): 0.8268
Overall Height (Decimal Inch): 3.0000	Overall Height (mm): 76.20
Overall Length (Inch): 5-1/2	Overall Length (Decimal Inch): 5.5000
Material Grade: 1018	Overall Width/Diameter (Inch): 2
Overall Width/Diameter (Decimal Inch): 2.0000	Number Of Jaws: 3
UNSPSC Code: 31162902	Country of Origin: UNITED STATES
Jaw Shape: Square
Jaw Interface Type: Serrated
Material: Steel
Maximum Compatible Chuck Diameter (mm): 12.00
Maximum Compatible Chuck Diameter (Decimal Inch): 12.0000
Distance Between Mount Hole Centers (Decimal Inch): 1.1811
Distance Between Mount Hole Centers (mm): 30.00
Fastener Size (mm): 16.00
Fastener Size (Decimal Inch): 0.6299
Slot Width (Decimal Inch): 0.8270
Groove Width (mm): 21.00
Groove Width (D) (Decimal Inch): 0.8268
Overall Height (Decimal Inch): 3.0000
Overall Height (mm): 76.20
Overall Length (Inch): 5-1/2
Overall Length (Decimal Inch): 5.5000
Material Grade: 1018
Overall Width/Diameter (Inch): 2
Overall Width/Diameter (Decimal Inch): 2.0000
Number Of Jaws: 3
UNSPSC Code: 31162902
Country of Origin: UNITED STATES
