Sale!

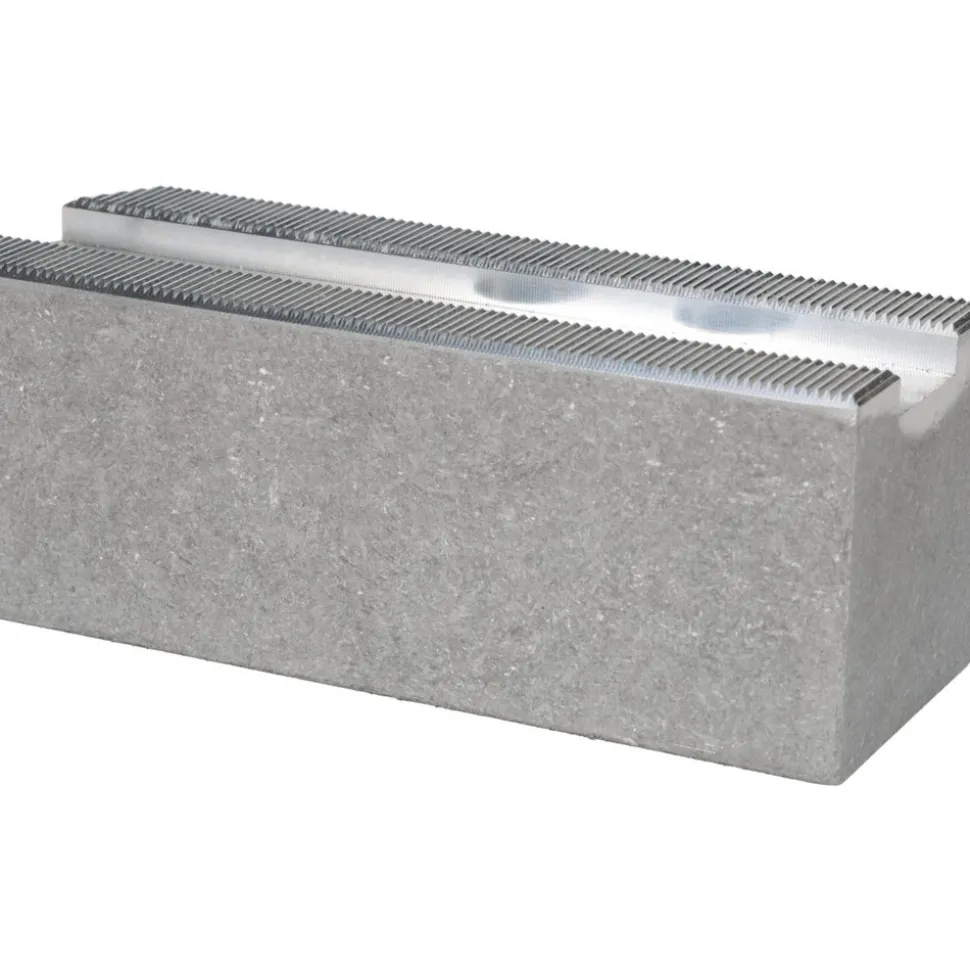

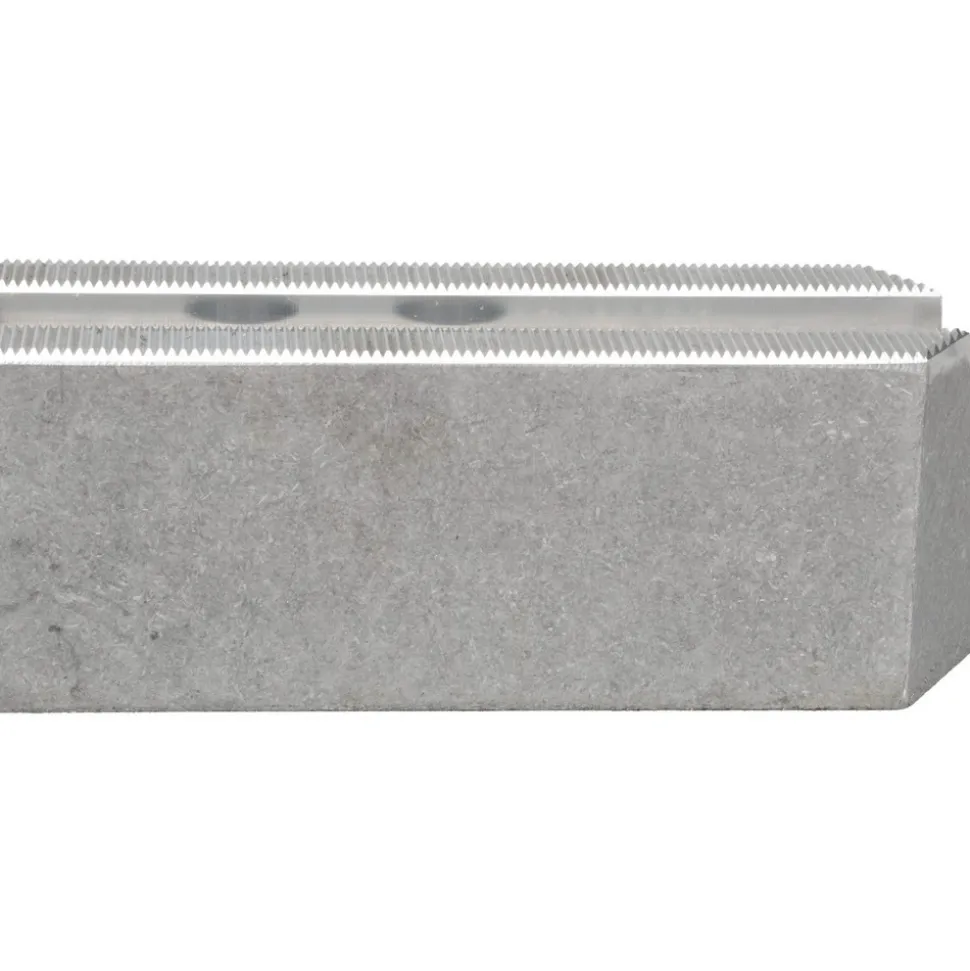

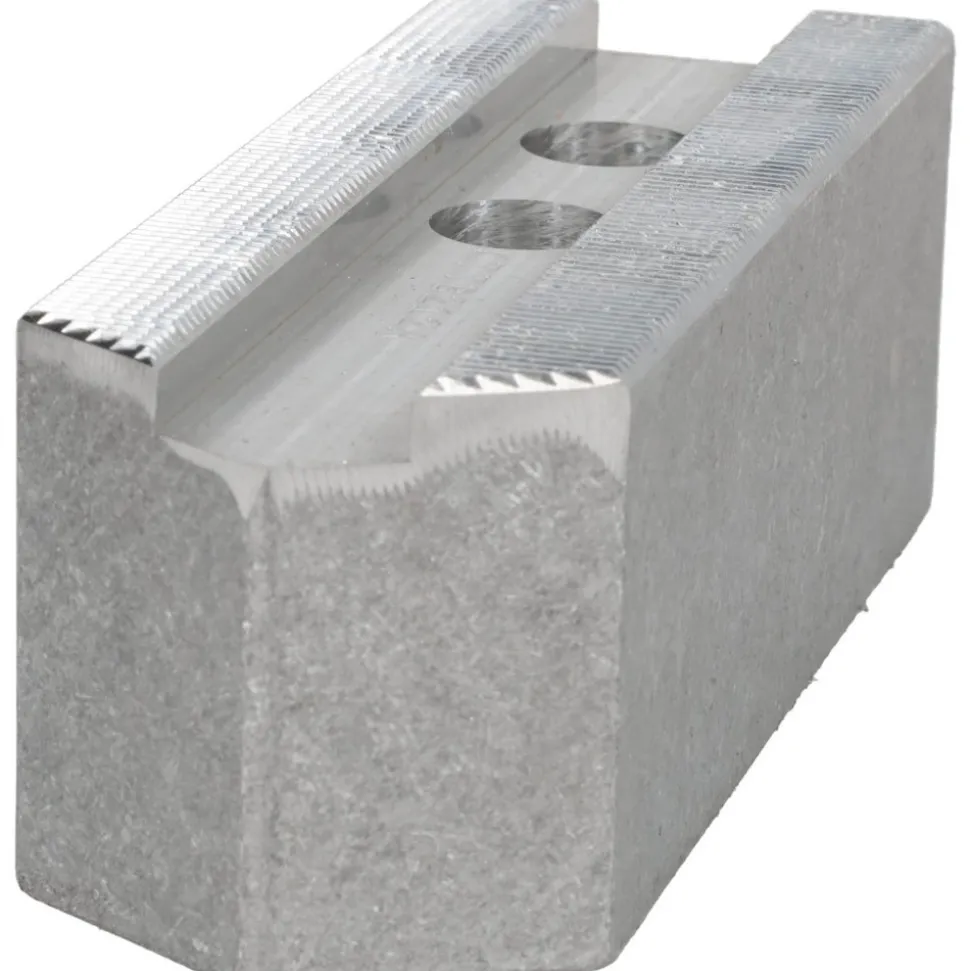

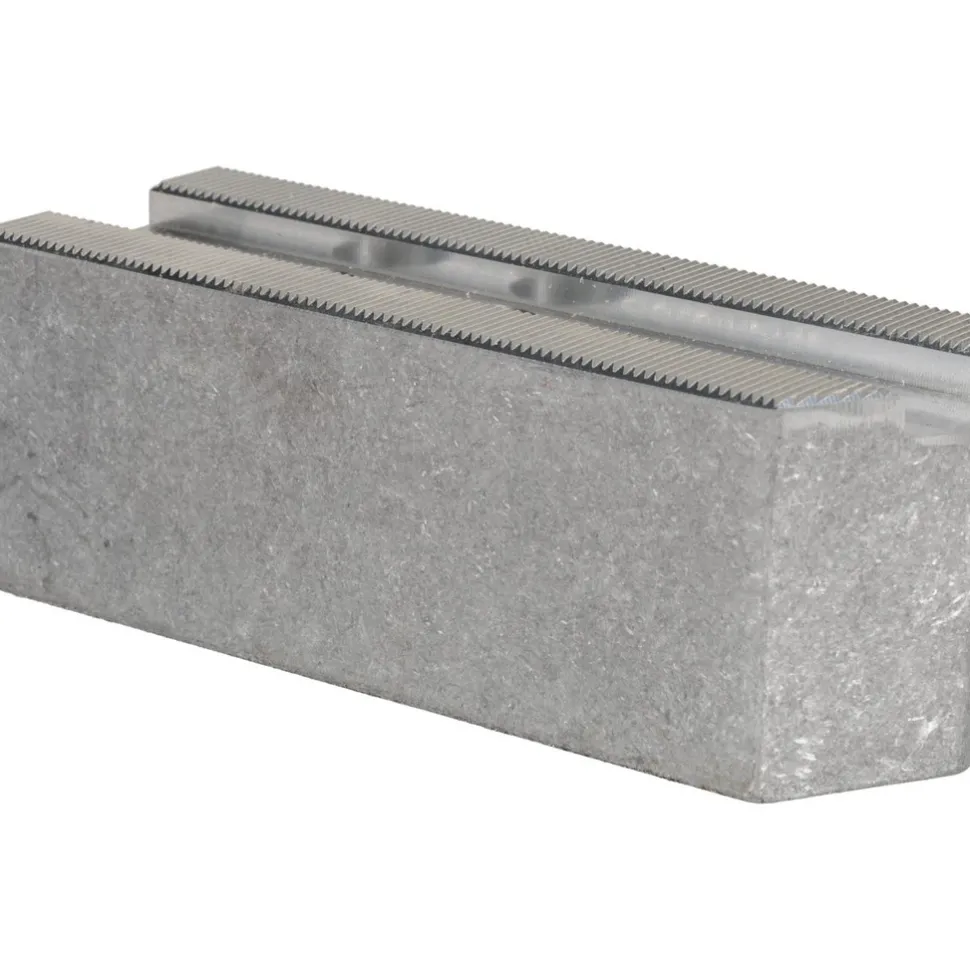

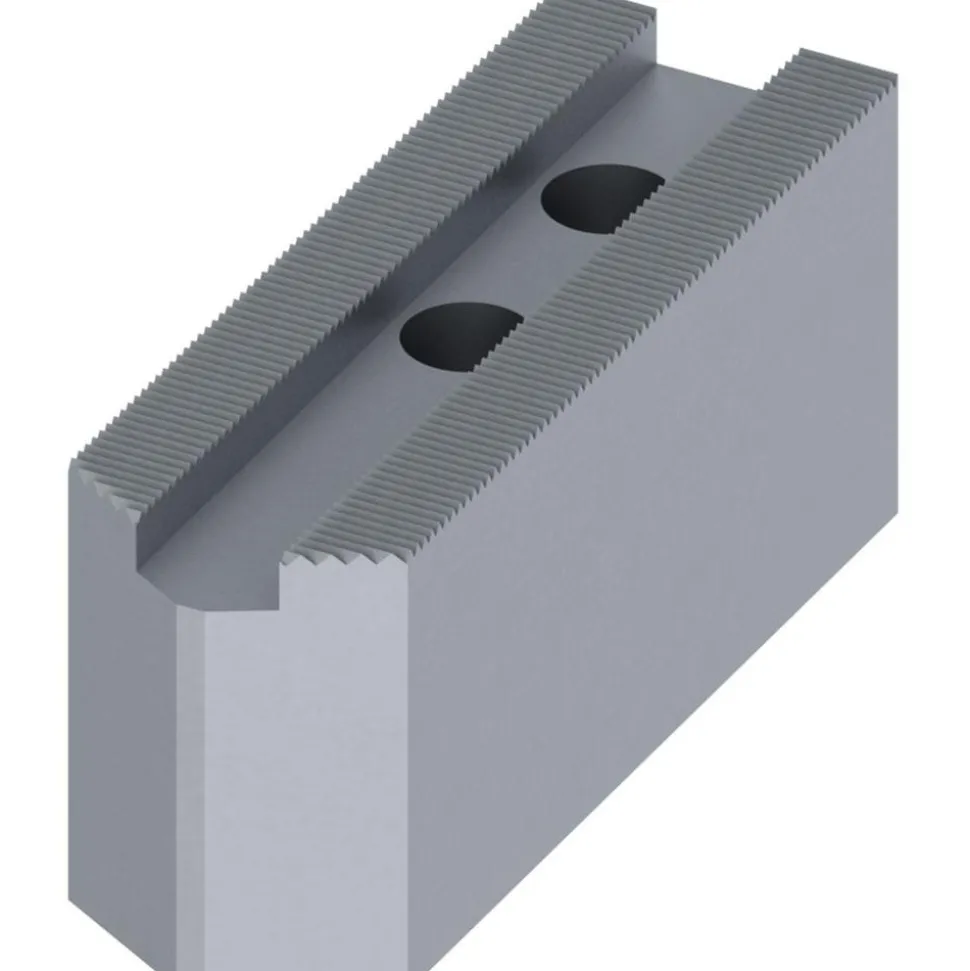

Soft Lathe Chuck Jaw: Serrated
Original price was: 90,00 $.63,89 $Current price is: 63,89 $.
Specifications

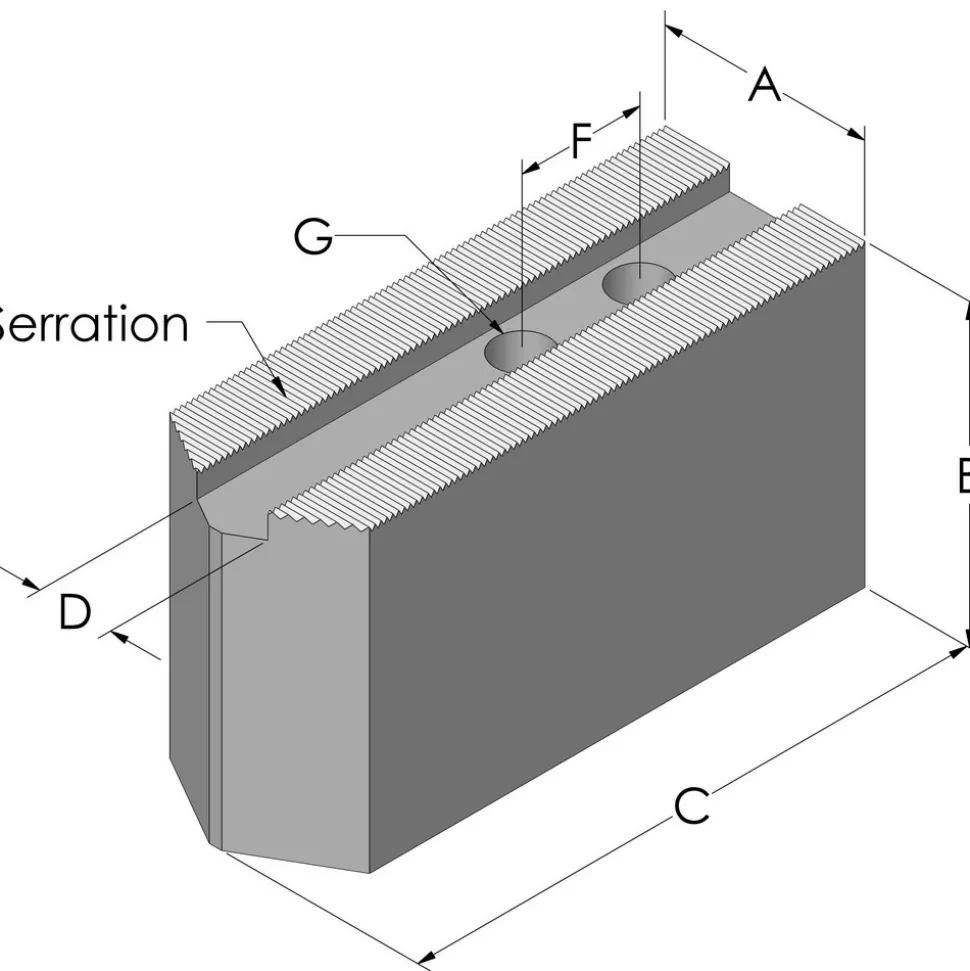

| Jaw Shape: Square | Jaw Interface Type: Serrated |
| Material: Aluminum | Maximum Compatible Chuck Diameter (mm): 12.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch): 12.0000 | Distance Between Mount Hole Centers (Decimal Inch): 1.1811 |
| Distance Between Mount Hole Centers (mm): 30.00 | Fastener Size (mm): 16.00 |
| Fastener Size (Decimal Inch): 0.6299 | Slot Width (Decimal Inch): 0.8270 |
| Groove Width (mm): 21.00 | Groove Width (D) (Decimal Inch): 0.8268 |
| Overall Height (Decimal Inch): 2.0000 | Overall Height (mm): 50.80 |
| Overall Length (Inch): 5-1/2 | Overall Length (Decimal Inch): 5.5000 |
| Material Grade: 6061-T6 | Overall Width/Diameter (Inch): 2 |
| Overall Width/Diameter (Decimal Inch): 2.0000 | Number Of Jaws: 3 |
| UNSPSC Code: 31162902 | Country of Origin: UNITED STATES |
| Jaw Shape: Square | |
| Jaw Interface Type: Serrated | |
| Material: Aluminum | |
| Maximum Compatible Chuck Diameter (mm): 12.00 | |
| Maximum Compatible Chuck Diameter (Decimal Inch): 12.0000 | |
| Distance Between Mount Hole Centers (Decimal Inch): 1.1811 | |
| Distance Between Mount Hole Centers (mm): 30.00 | |
| Fastener Size (mm): 16.00 | |
| Fastener Size (Decimal Inch): 0.6299 | |
| Slot Width (Decimal Inch): 0.8270 | |
| Groove Width (mm): 21.00 | |
| Groove Width (D) (Decimal Inch): 0.8268 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Overall Height (mm): 50.80 | |
| Overall Length (Inch): 5-1/2 | |
| Overall Length (Decimal Inch): 5.5000 | |
| Material Grade: 6061-T6 | |
| Overall Width/Diameter (Inch): 2 | |
| Overall Width/Diameter (Decimal Inch): 2.0000 | |
| Number Of Jaws: 3 | |
| UNSPSC Code: 31162902 | |
| Country of Origin: UNITED STATES |
| MSC# | 04230736 |
| Mfr# | KTTB212A |
| Big Book# | 1427 |
