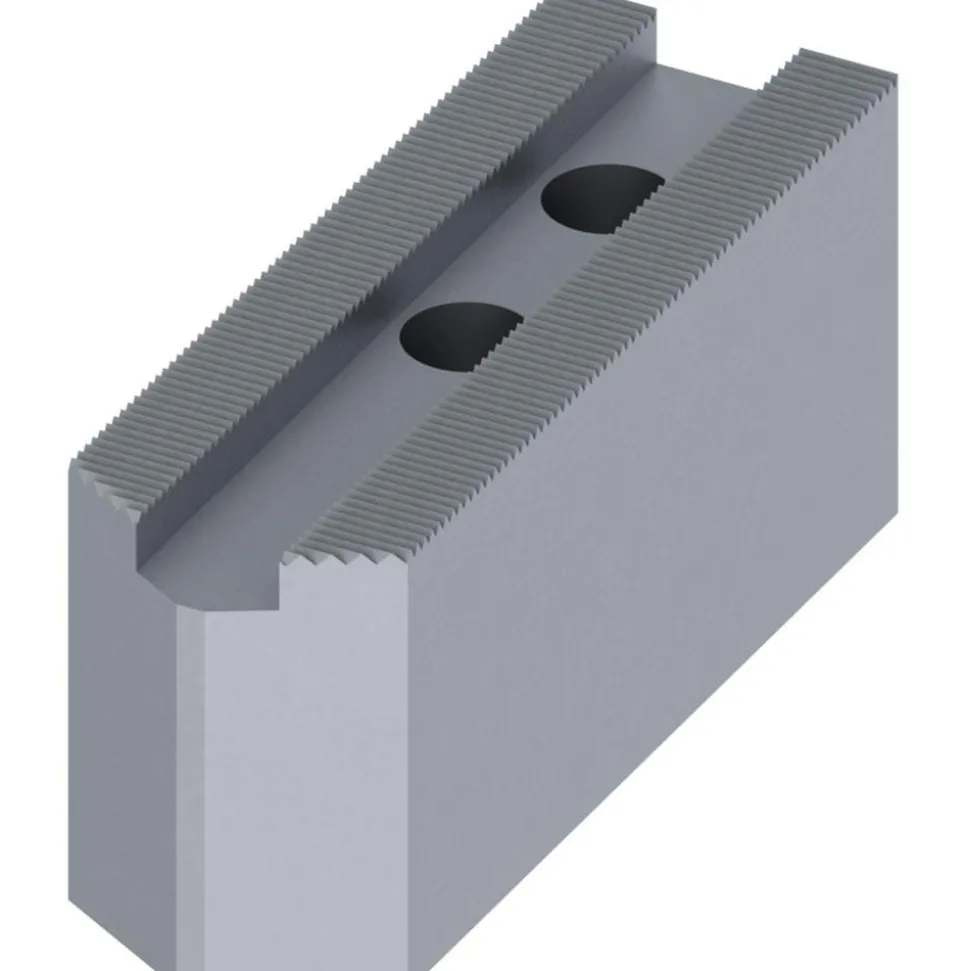

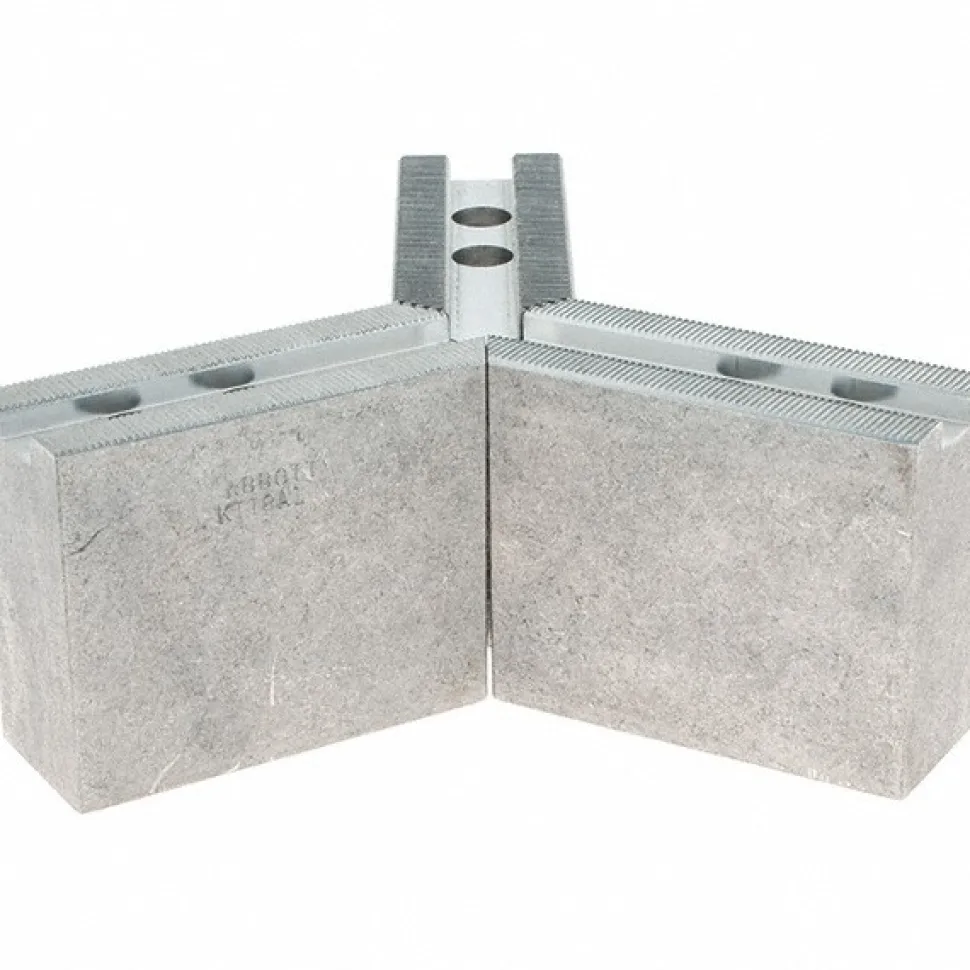

Soft Lathe Chuck Jaw: Serrated
Original price was: 77,00 $.53,89 $Current price is: 53,89 $.

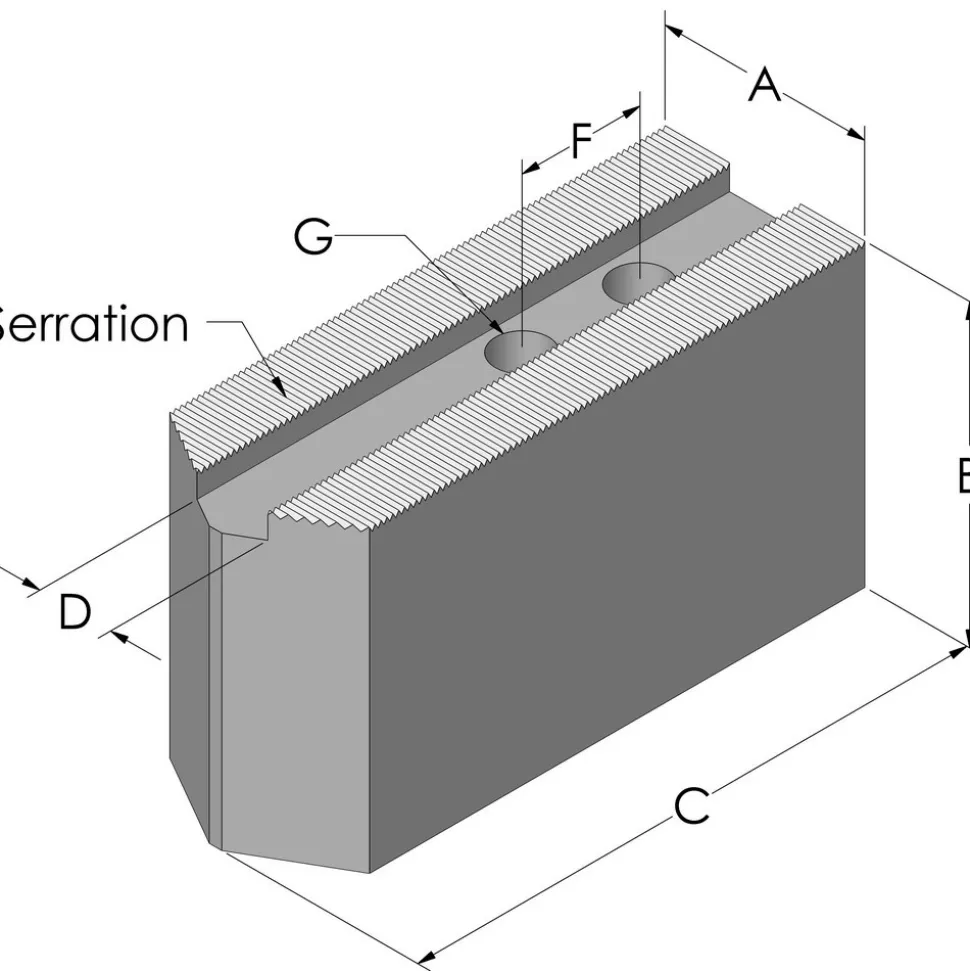

Specifications
| Jaw Shape: Square | Jaw Interface Type: Serrated |
| Material: Aluminum | Maximum Compatible Chuck Diameter (mm): 8.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch): 8.0000 | Distance Between Mount Hole Centers (Decimal Inch): 0.9843 |
| Distance Between Mount Hole Centers (mm): 25.00 | Fastener Size (mm): 12.00 |
| Fastener Size (Decimal Inch): 0.4724 | Slot Width (Decimal Inch): 0.5510 |
| Groove Width (mm): 14.00 | Groove Width (D) (Decimal Inch): 0.5512 |
| Overall Height (Decimal Inch): 3.0000 | Overall Height (mm): 76.20 |
| Overall Length (Inch): 4 | Overall Length (Decimal Inch): 4.0000 |
| Material Grade: 6061-T6 | Overall Width/Diameter (Inch): 1-1/2 |
| Overall Width/Diameter (Decimal Inch): 1.5000 | Number Of Jaws: 3 |
| Serration Dimensions: 1.5mm x 60° | UNSPSC Code: 31162902 |
| Country of Origin: UNITED STATES | |
| Jaw Shape: Square | |
| Jaw Interface Type: Serrated | |
| Material: Aluminum | |
| Maximum Compatible Chuck Diameter (mm): 8.00 | |
| Maximum Compatible Chuck Diameter (Decimal Inch): 8.0000 | |
| Distance Between Mount Hole Centers (Decimal Inch): 0.9843 | |
| Distance Between Mount Hole Centers (mm): 25.00 | |
| Fastener Size (mm): 12.00 | |
| Fastener Size (Decimal Inch): 0.4724 | |
| Slot Width (Decimal Inch): 0.5510 | |
| Groove Width (mm): 14.00 | |
| Groove Width (D) (Decimal Inch): 0.5512 | |
| Overall Height (Decimal Inch): 3.0000 | |
| Overall Height (mm): 76.20 | |
| Overall Length (Inch): 4 | |
| Overall Length (Decimal Inch): 4.0000 | |
| Material Grade: 6061-T6 | |
| Overall Width/Diameter (Inch): 1-1/2 | |
| Overall Width/Diameter (Decimal Inch): 1.5000 | |
| Number Of Jaws: 3 | |
| Serration Dimensions: 1.5mm x 60° | |
| UNSPSC Code: 31162902 | |
| Country of Origin: UNITED STATES |
| MSC# | 59451286 |
| Mfr# | KTT8A1 |
